The AToM (Antenna Toolbox for MATLAB) is written entirely in MATLAB, so the user will enjoy its semi-open architecture and friendly operation through GUI or direct access to low level functions. Main simulation core is based on Method of moments, both for 3D wire and planar structures. Together with modal decomposition (Characteristic modes), the source concept, feeding synthesis and powerful optimization (FOPS optimizer), it will present unique tool for analysis and synthesis of (small) antennas. Full list of AToM features is available below.

AToM Features

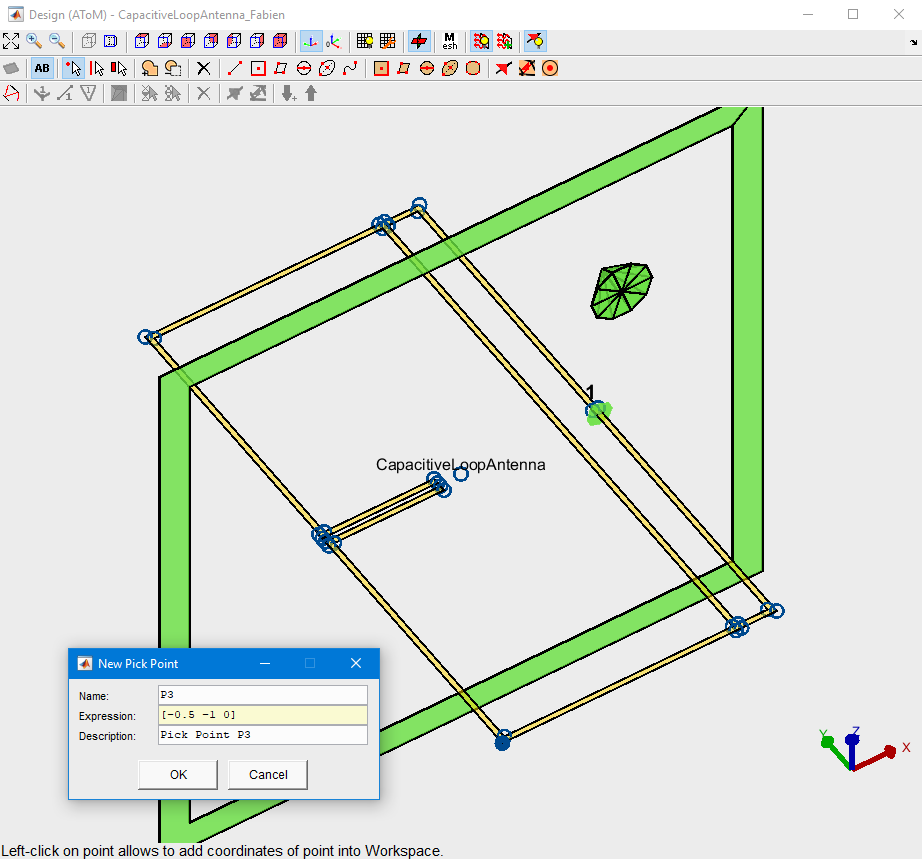

AToM Design Viewer with a capacitive loop antenna and active pick-point tool. The PEC symmetric plane is enabled and highlighted by green color.

AToM DesignViewer

Draw the antenna interactively, visualize mesh grid, feeding scenarios, and boundary conditions. Take the advantage of AToM Workspace.

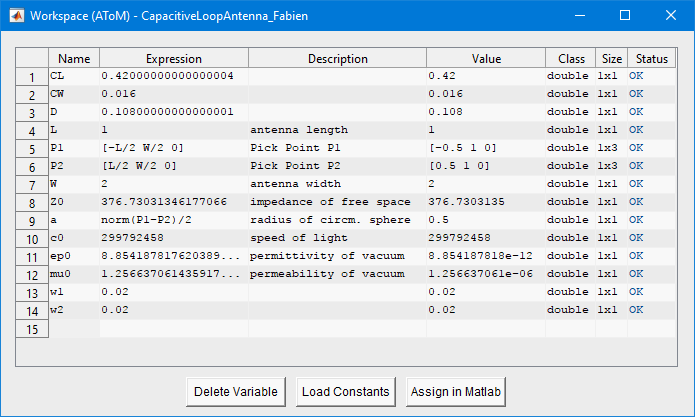

List of user-defined AToM variables which parametrize the capacitive loop antenna.

AToM Workspace

Create own variables and use them freely throughout the AToM to parametrize all your models. AToM Workspace is the primary gateway between variables in MATLAB workspace and AToM.

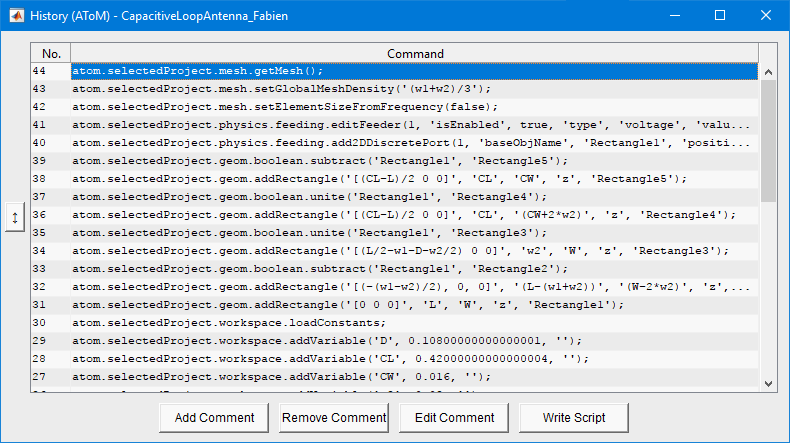

Record of AToM History for capacitive loop antenna.

AToM History

Rely on automatic MATLAB-executable record of your AToM session. Modify it, send it, share it.

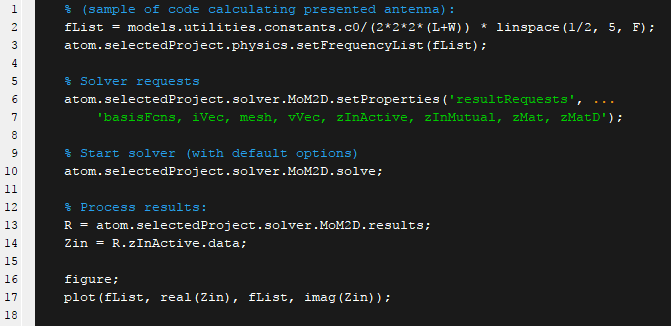

A segment of MATLAB code with AToM-executable commands (start of MoM solver and acquisition of the results).

AToM Syntax

Have a full control of the AToM workflow. Access all powerful low-level functions and features. Combine freely AToM commands and other MATLAB commands.

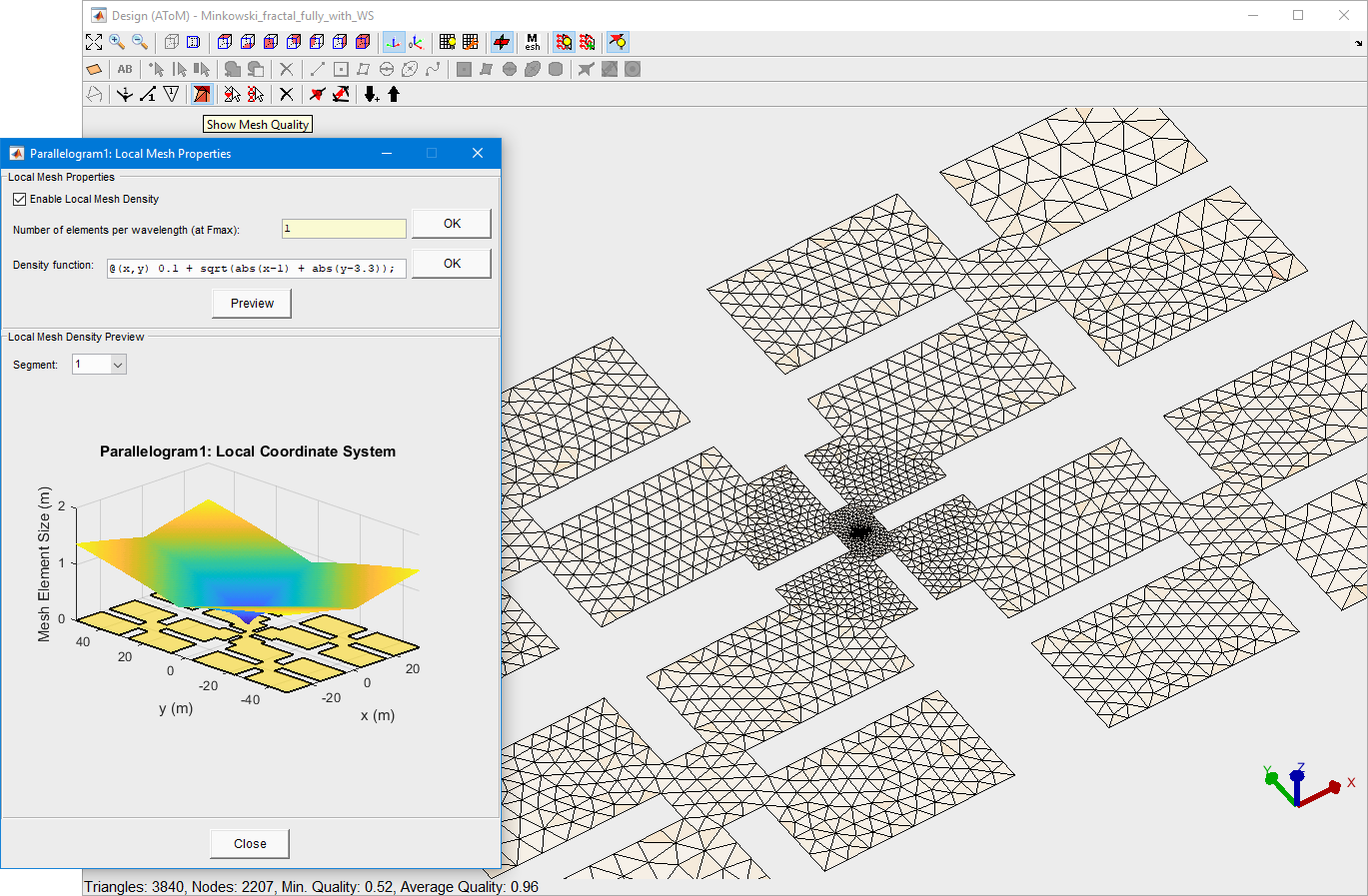

Complex fractal body discretized using local density function (discretization is finer where high amplitudes of current density are expected).

Advanced Mesher

Use fast and versatile AToM mesher. Set up local density functions. Enjoy various settings of uniform mesh grid and full support of symmetries.

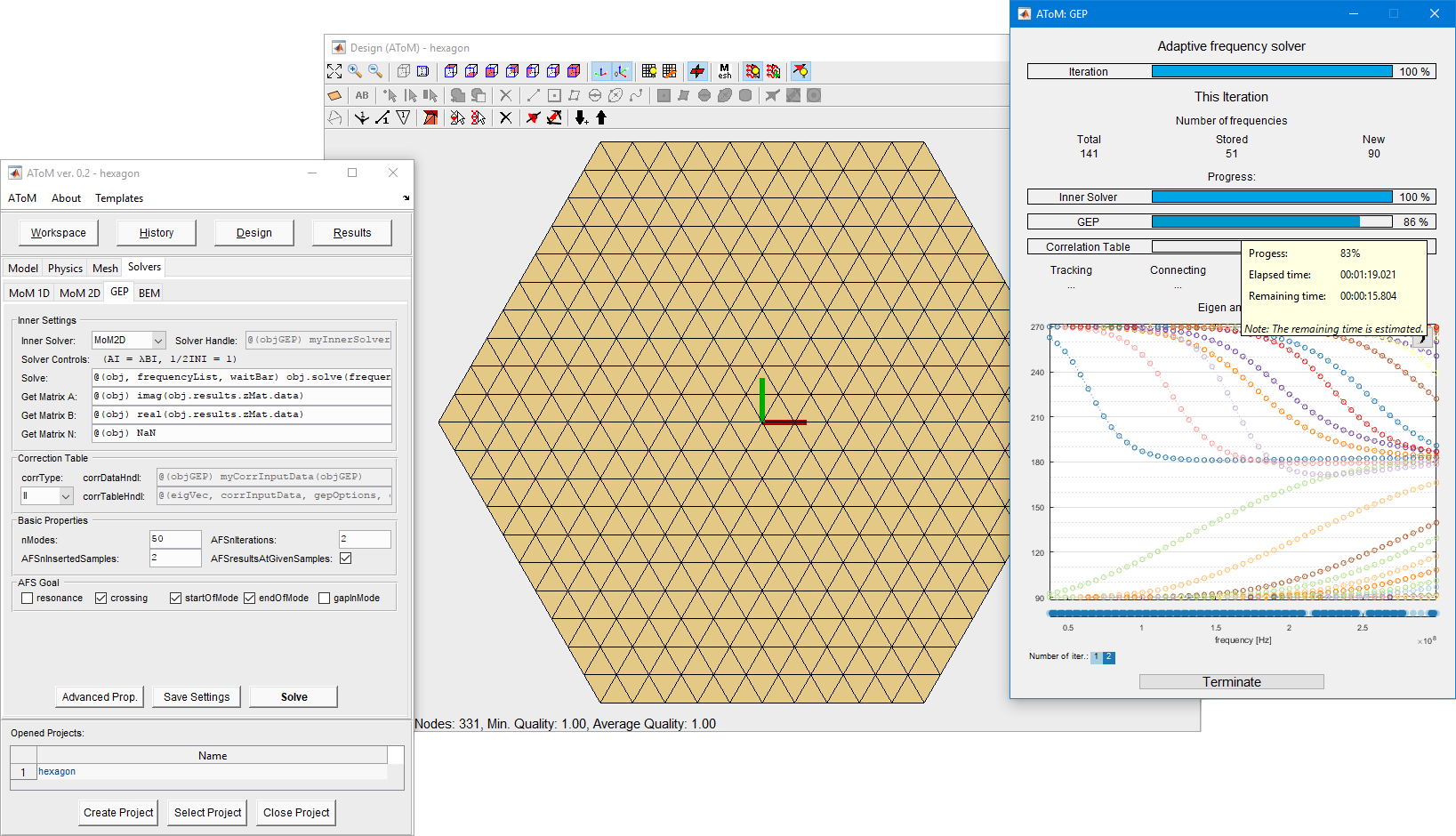

Characteristic mode decomposition of hexagon with perfectly symmetrical mesh grid.

GEP With Extended Support For CMs

Try out the far most advanced characteristic modes decomposition package. Adaptive tracking, accurate decomposition, symmetry based-tracking, scalable GEP definitions... all at your disposal.

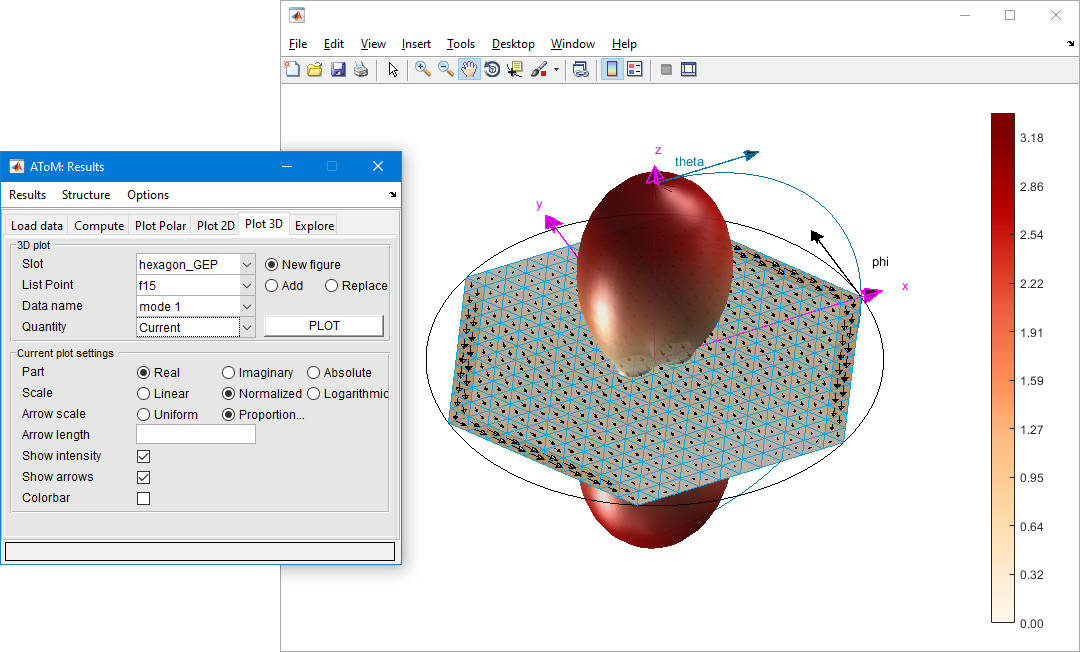

Radiation pattern of dominant characteristic mode on hexagon.

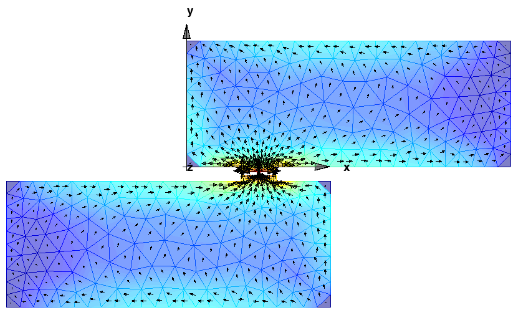

Results Browser

Analyze your results swiftly with standalone AToM Results Browser or dig directly into the deep study with underlying elementary functions.

... and more

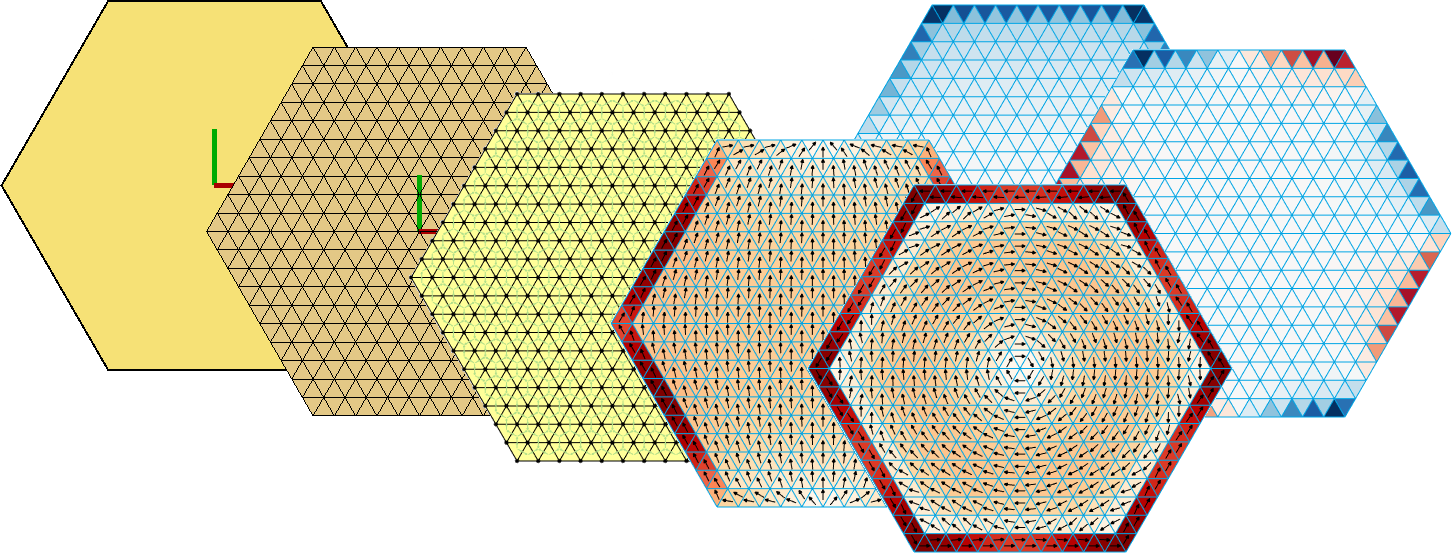

From antenna body, through discretization grid and definition of basis functions to characteristic modes...

AToM Addons

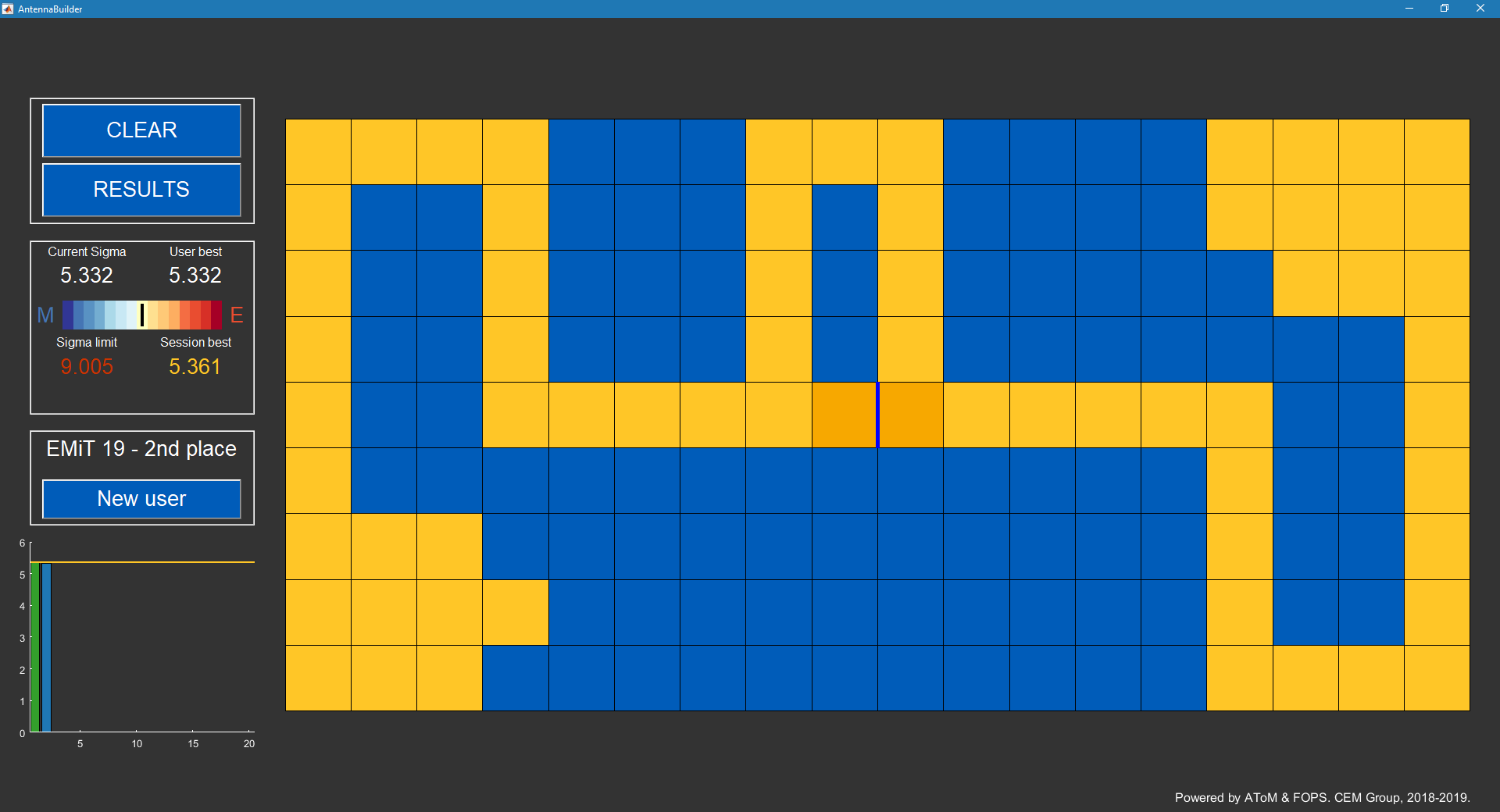

A particular solution drawn in AntennaBuilder to maximize effective area of a receiving antenna.

Antenna Builder

Addon for AToM with easy controllable interface to design planar antenna structures. Various figure of metrics can be evaluated and optimized.

More about and download Antenna Builder...
Version 1.0
Requirements: AToM

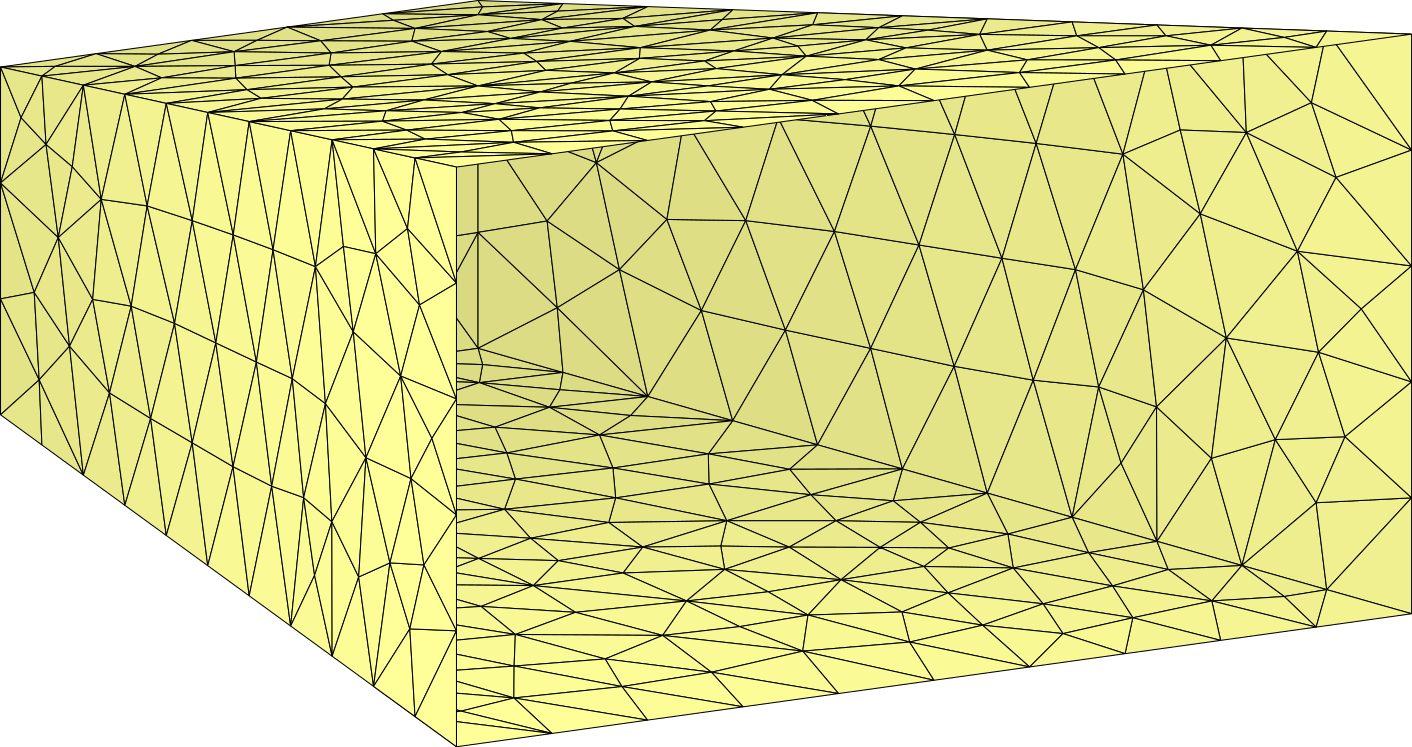

Delaunay mesh grid of a horn antenna exported as vector graphics into LaTeX/TikZ and compiled as PDF.

AToM2TikZ

AToM2TikZ is a package for conversion of MATLAB plots generated by AToM into LATEX/TikZ macros. The strategy used to generate the plots is similar as for Matlab2TikZ package. AToM2TikZ can generate vector graphics for mesh grids, current plots, charge plots, radiation patterns, topology sensitivity samples, etc.

More about and download AToM2TikZ...
Version 1.0
Requirements: AToM

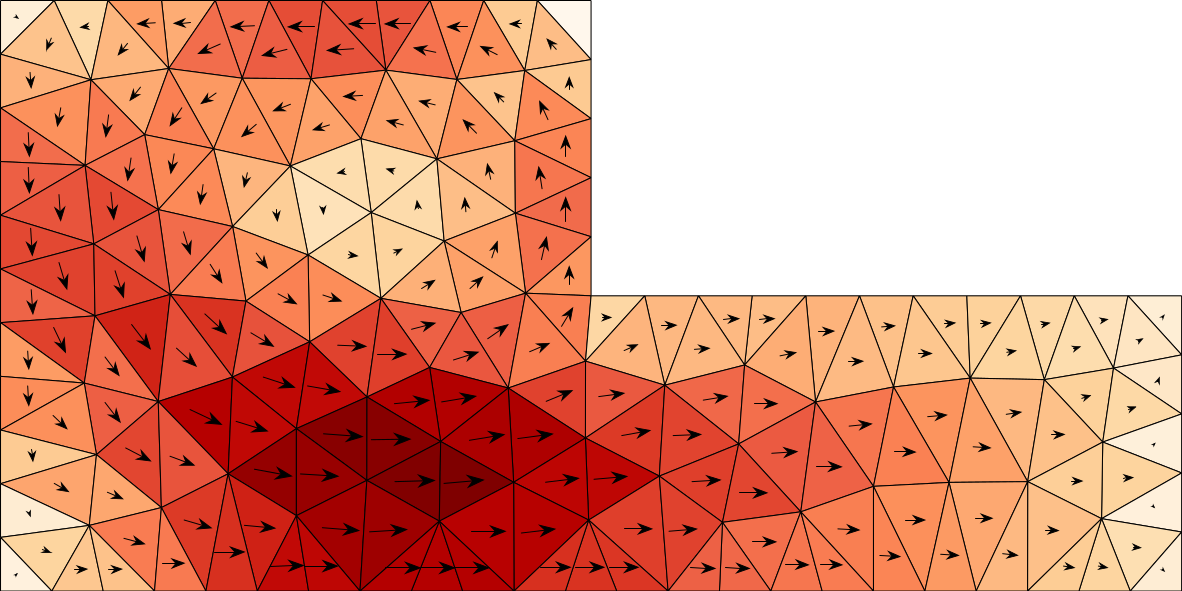

Optimal current for maximal radiation efficiency with self-resonant constraint. L-shape plate is made of copper, electrical size is ka=1/2. Graphical results exported with AToM2TikZ addon.

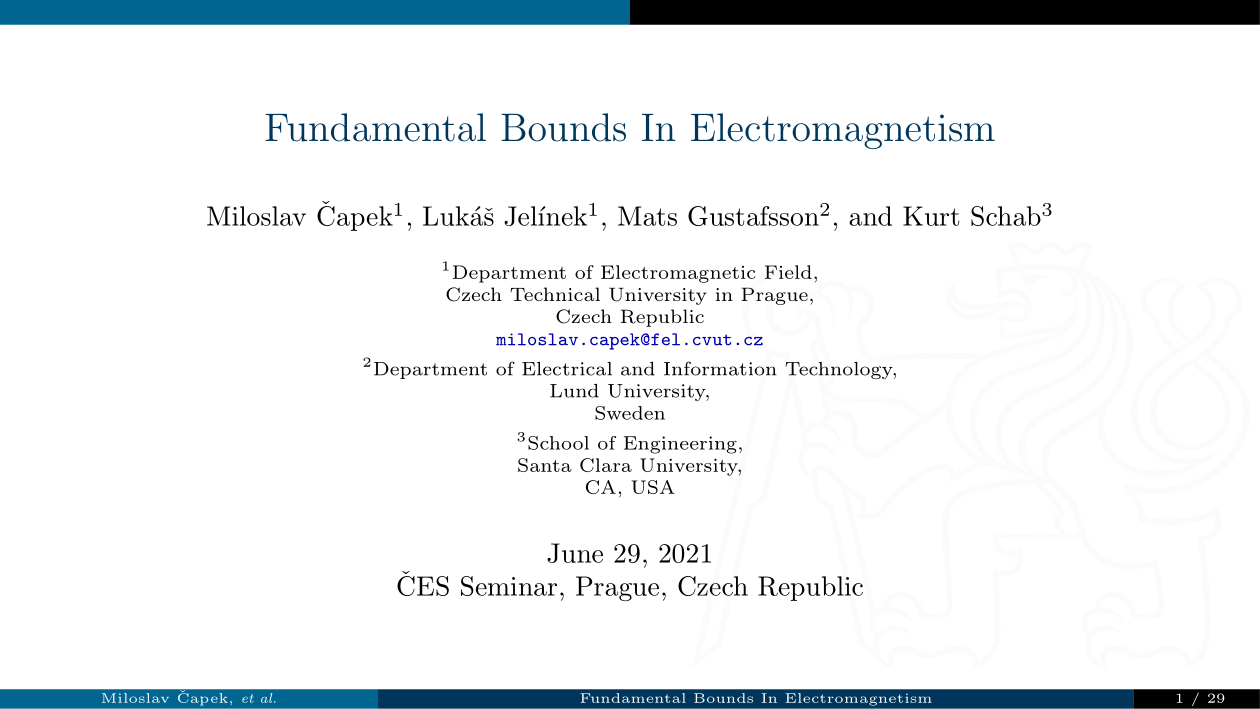

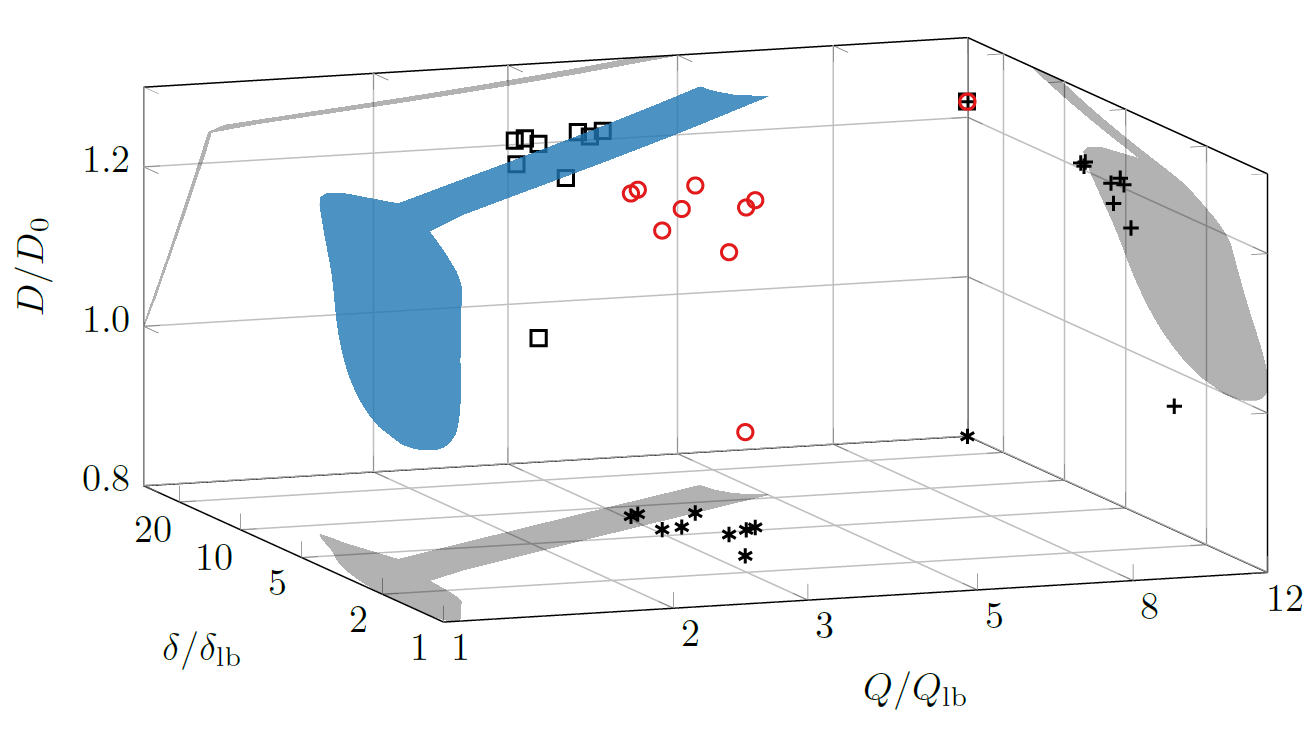

Fundamental Bounds



More about Fundamental Bounds...
Not available yet
Requirements: AToM

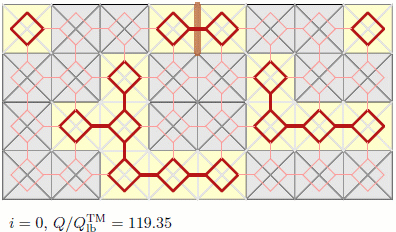

Gradient-based topology optimization of a PEC rectangular plate for minimization of radiation Q-factor. The electrical size is ka=1/2. Optimization has been slowed down approximately 1000 times.

Topology Optimization



More about Topology Optimization...
Not available yet
Requirements: AToM, FOPS

VOlumetric Method of Moments

Comming soon...

Download

The free version can be downloaded here. Visit download for more information.

Changelog

Documentation

AToM Documentation
(PDF, 4.69 MB)
version from Mar 23, 2020
AToM Features
(PDF, 895.12 kB)
version from Mar 27, 2020
AToM Functions
(PDF, 809.86 kB)
version from Mar 23, 2020
AToM Operators
(PDF, 467.43 kB)
version from Mar 27, 2020

Live Scripts

LS1: Meanders
(ZIP, 355.85 kB)
version from Jun 18, 2019

White Papers

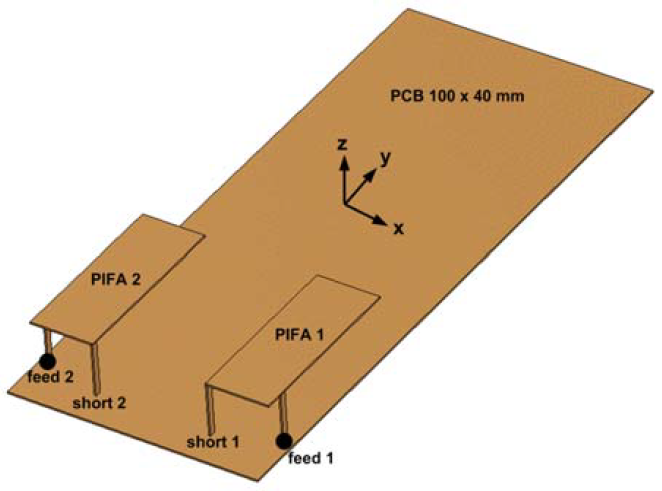

Analysis of dual-PIFA antenna polarization diversity
(PDF, 466.64 kB)
version from Oct 08, 2018

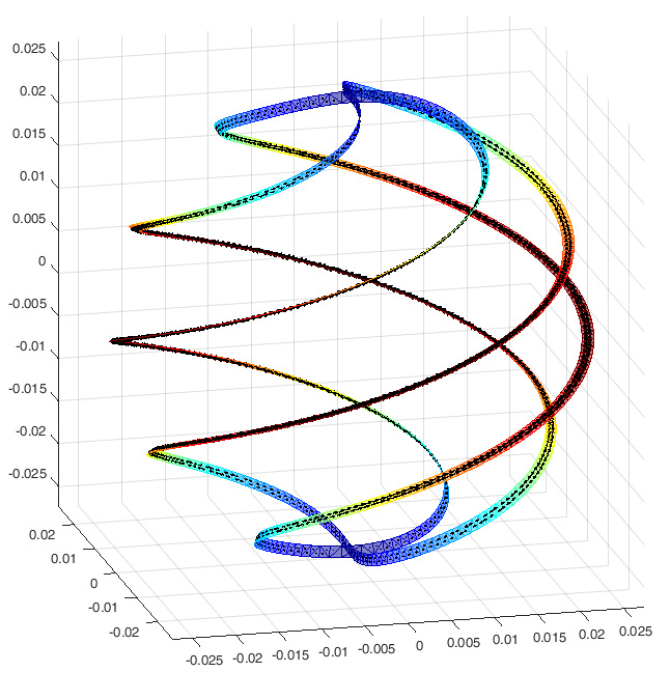

Analysis of four-arm electrically small helix antenna
(PDF, 420.04 kB)
version from Oct 08, 2018
Design of circularly polarized antenna
(PDF, 1.2 MB)
version from Oct 08, 2018

Other Documents

AToM presentation at CEM UGM Lund, Nov 2016
(PDF, 6.77 MB)
version from Oct 08, 2018
AToM presentation at EuCAP 2018
(PDF, 4.82 MB)
version from Oct 08, 2018
Evaluation of S-matrix and its properties, EuCAP 2018
(PDF, 2.12 MB)
version from Oct 08, 2018
Presentation at ESI EU Forum 2016, Nov 2016
(PDF, 2.38 MB)
version from Oct 08, 2018

References

List of publications where AToM was cited.

  1. Masek, M., Jelinek, L., Capek, M.: Excitation Schemes of Uncorrelated Channels, pp. 1-8, 2020. arXiv:2003.09378
  2. Capek, M., Jelinek, L., Masek, M.: Optimality of Total Active Reflection Coefficient and Realized Gain for Multi-port Lossy Antennas, pp. 1-12, 2020. arXiv:2002.12747
  3. Ehrenborg, C., Gustafsson, M., Capek, M.: Analysis of Energy Modes for MIMO Antennas, pp. 1-5, 2019. arXiv:1905.03106
  4. Masek, M., Capek, C., Jelinek, L., Schab, K.: Modal Tracking Based on Group Theory, IEEE Transactions on Antennas and Propagation, Vol. 68, No. 2, pp. 927-937, Feb. 2020.
  5. Gustafsson, M., Capek, M.: Maximum Gain, Effective Area, and Directivity, IEEE Transactions on Antennas and Propagation, Vol. 67, No. 8, pp. 5282-5293, Aug. 2019.
  6. Capek, M., Jelinek, L., Schab, K., Gustafsson, M., Jonsson, L., Ferrero, F., Ehrenborg, C.: Optimal Planar Electric Dipole Antennas, IEEE Antennas and Propagation Magazine, pp. 1-10, 2019.
  7. Capek, M., Jelinek, L., Gustafsson, M.: Inversion-Free Evaluation of Nearest Neighbors in Method of Moments, IEEE Antennas and Wireless Propagation Letters, pp. 1-5, 2019.
  8. Capek, M., Jelinek, L., Gustafsson, M.: Shape Synthesis Based on Topology Sensitivity, IEEE Transactions on Antennas and Propagation, Vol. 67, No. 6, pp. 3889-3901, June 2019.
  9. Gustafsson, M., Capek, M., Schab, K.: Tradeoff Between Antenna Efficiency and Q-Factor, IEEE Transactions on Antennas and Propagation, Vol. 67, No. 4, pp. 2482-2493, April 2019.
  10. Tayli, D., Capek, M., Akrou, L., Losenicky, V., Jelinek, L., Gustafsson, M.: Accurate and Efficient Evaluation of Characteristic Modes, IEEE Transactions on Antennas and Propagation, Vol. 66, No. 12, pp. 7066-7075, Dec. 2018.
  11. Jelinek, L., Schab, K., Capek, M.: The Radiation Efficiency Cost of Resonance Tuning, IEEE Transactions on Antennas and Propagation, Vol. 66, No. 12, pp. 6716-6723, Dec. 2018.
  12. Losenicky, V., Jelinek, L., Capek, M., M. Gustafsson: Dissipation Factors of Spherical Current Modes on Multiple Spherical Layers, IEEE Transactions on Antennas and Propagation, Vol. 66, No. 9, pp. 4948-4952, Sept. 2018.
  13. Capek, M., Hazdra, P., Adler, V., Kadlec, V., Sedenka, V., Marek, M., Masek, M., Losenicky, V., Strambach, M., Mazanek, M., Rymus, J.: AToM: A Versatile MATLAB Tool for Antenna Synthesis, EuCAP 2018, London, UK, 2018.
  14. Capek, M., Tayli, D., Akrou, L., Losenicky, V., Jelinek, L., Gustafsson, M.: Accurate Evaluation of Characteristic Modes, EuCAP 2018, London, UK, 2018.
  15. Chen, Y., Schab, K., Capek, M., Masek, M., Lau, B. K., Aliakbariabar, H., Haykir, Y., Wu, Q., Strydom, W., Peitzmeier, N., Jovicic, M., Genovesi, S., Dicandia, F. A.: Benchmark Problem Definition and Cross-Validation for Characteristic Mode Solvers, EuCAP 2018, London, UK, 2018.
  16. Capek, M., Jelinek, L.: Optimal Currents and Optimal Antennas, EuCAP 2018, London, UK, 2018.
  17. Masek, M., Capek, M., Jelinek, J.: Mode Tracking Based on Group Theory, EuCAP 2018, London, UK, 2018.
  18. Capek, M., Gustafsson, M., Schab, K.: Minimization of Antenna Quality Factor, IEEE Transactions on Antennas and Propagation, Vol. 65, No. 8, pp. 4115-4123, Aug. 2017.
  19. Capek, M., Losenicky, V., Jelinek, L., Gustafsson M.: Validating the Characteristic Modes Solvers, IEEE Transactions on Antennas and Propagation, Vol. 65, No. 8, pp. 4134--4145, Aug. 2017.
  20. Gustafsson, M., Capek, M., Schab, K.: Fundamental Limitations on the Quality Factor and Related Problems for Small Antennas, IEEE APS/USNC-URSI, San Diego, USA, 2017.
  21. Capek, M., Losenicky, V., Jelinek, L., Gustafsson, M., Tayli, D.: Numerical Benchmark Based on Characteristic Modes of a Spherical Shell, IEEE APS/USNC-URSI, San Diego, USA, 2017.
  22. Jelinek, L., Kratky, O., Capek, M.: Polarizability Tensors of Highly Conductive Bodies, IEEE APS/USNC-URSI, San Diego, USA, 2017.
  23. Jelinek, L., Kratky, O., Capek, M.: An Evaluation of Polarizability Tensors of Arbitrarily Shaped Highly Conducting Bodies, IET Microwaves, Antennas and Propagation, Vol. 11, No. 6, pp. 852-858, May 2017.
  24. Gustafsson, M., Capek, M., Schab, K.: Minimum Q-factors for Antennas, EuCAP 2017, Paris, France, 2017.
  25. Capek, M., Jelinek, L., Kadlec, P., Strambach, M.: Excitation of Optimal and Suboptimal Currents, EuCAP 2017, Paris, France, 2017.
  26. Capek, M., Hazdra, P., Masek, M., Losenicky, V.: Analytical Representation of Characteristic Modes Decomposition, IEEE Transactions on Antennas and Propagation, Vol. 65, No. 2, pp. 713-720, Feb. 2017.
  27. Jelinek, L., Capek, M.: Optimal Currents in the Characteristic Modes Basis, IEEE APS/USNC-URSI, Fajardo, Puerto Rico, 2016.
  28. Capek, M., Jelinek, L.: Optimal Composition of Modal Currents For Minimal Quality Factor Q, IEEE Transactions on Antennas and Propagation, Vol. 64, No. 12, pp. 5230-5242, Dec. 2016.
  29. Capek, M., Masek, M., Hazdra, P.: Some Numerical Aspects of Characteristic Mode Decomposition, EuCAP 2016, Davos, Switzerland, 2016.
  30. Capek, M., Hazdra, P., Mazanek, M., Raida, Z., Rymus, J.: The Antenna Toolbox for Matlab (AToM), EuCAP 2015, Lisbon, Portugal, 2015.
  31. Capek, M., Eichler, J., Hazdra, P., Mazanek, M.: A Method for the Evaluation of Radiation Efficiency Based on Modal Approach, EuCAP 2014, Hague, Netherlands, 2014.
  32. Kozak, F., Capek, M., Jenik, V., Hudec, P., Skvor, Z.: Simulation of Electromagnetic Field of a Fast Moving Target Close to Antennas, EuCAP 2013, Gothenburg, Sweden, 2013.

Did you cite AToM and your paper is not in the list? Contact us and we will add your reference here!
