Antenna Builder

Motivation

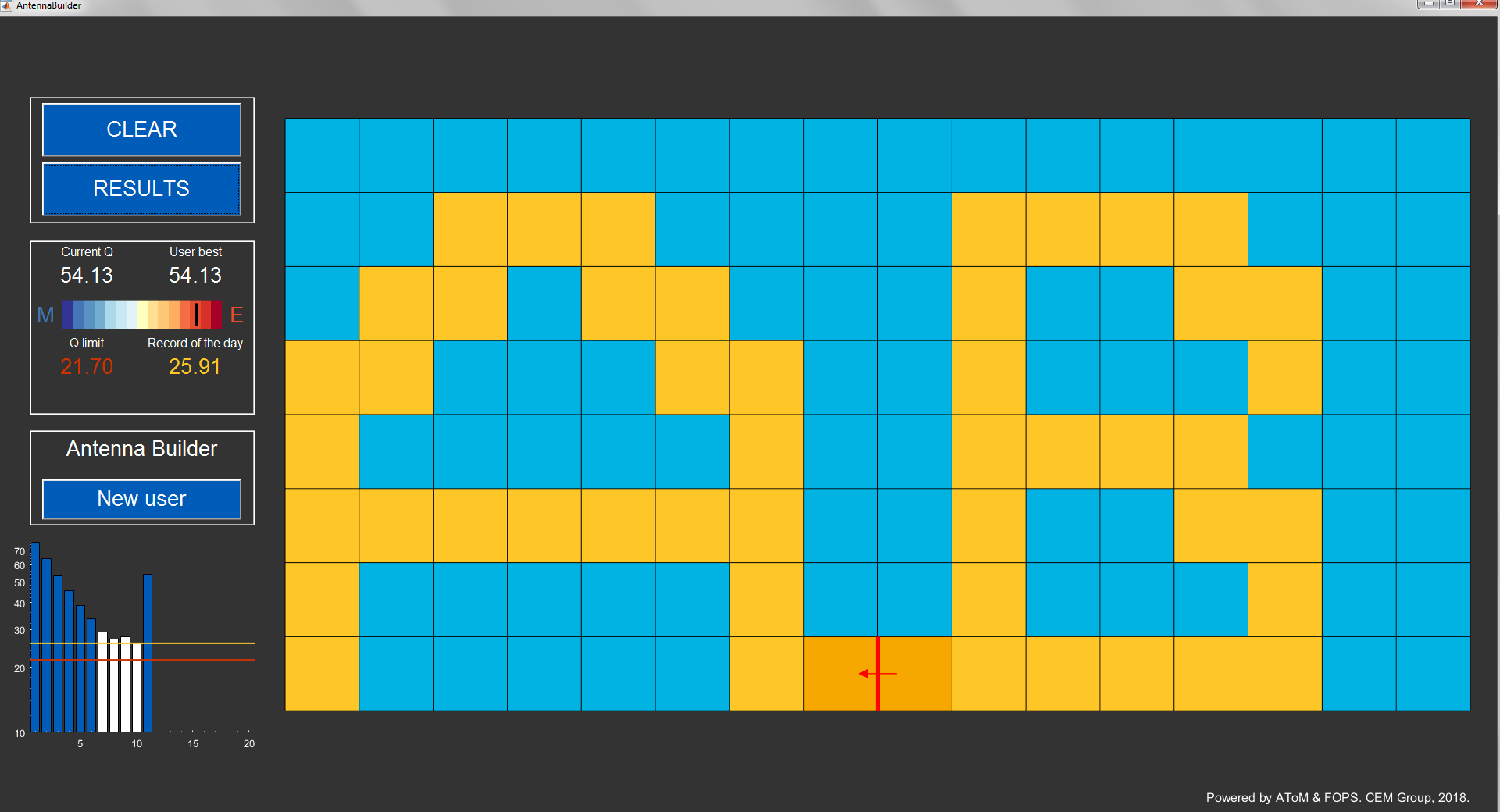

The aim of this tool is to give user-controlled graphical interface where it is possible to draw a planar antenna structure and the program returns current/charge distribution and evaluates one of pre-defined task.

Tasks

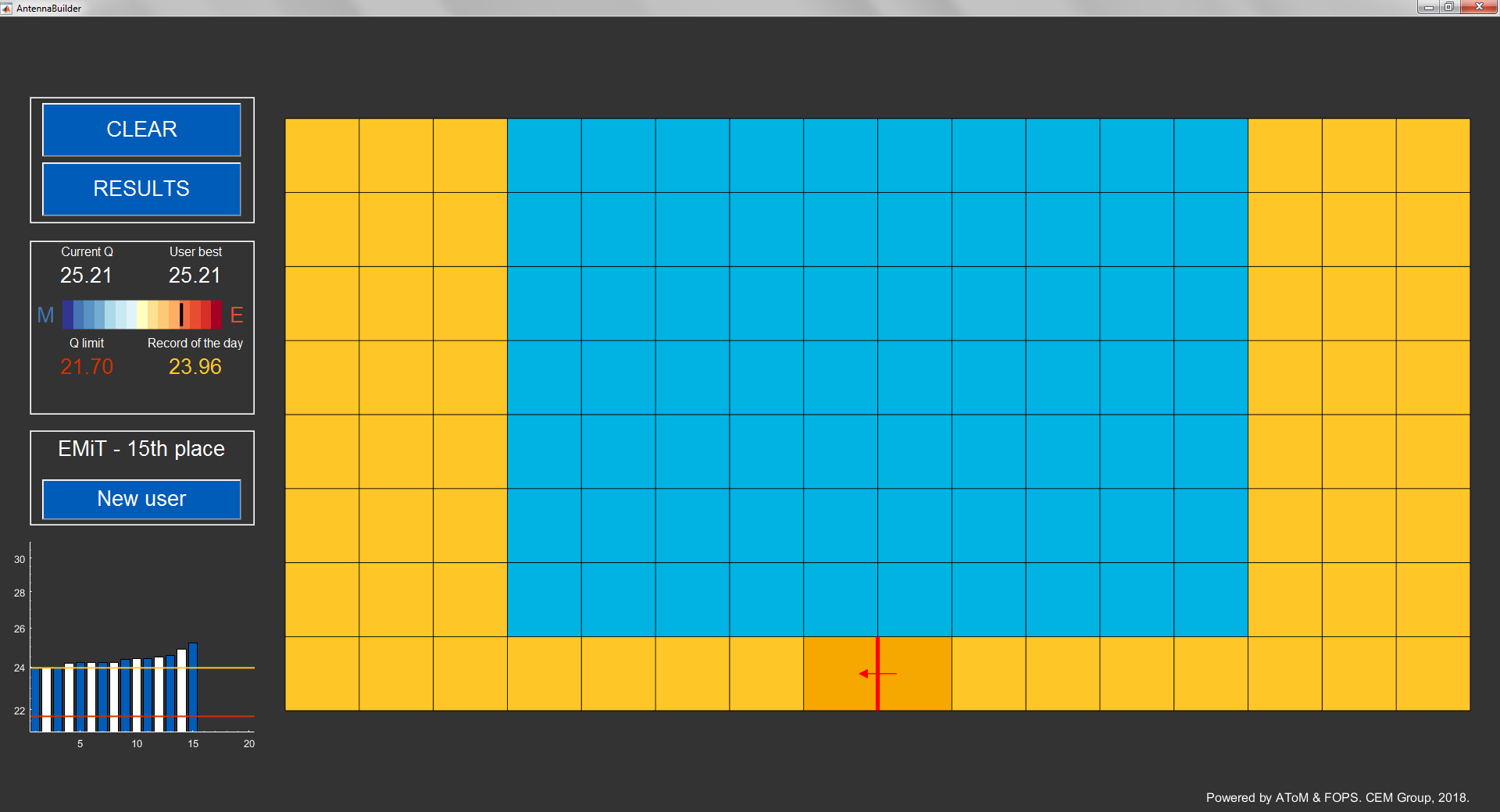

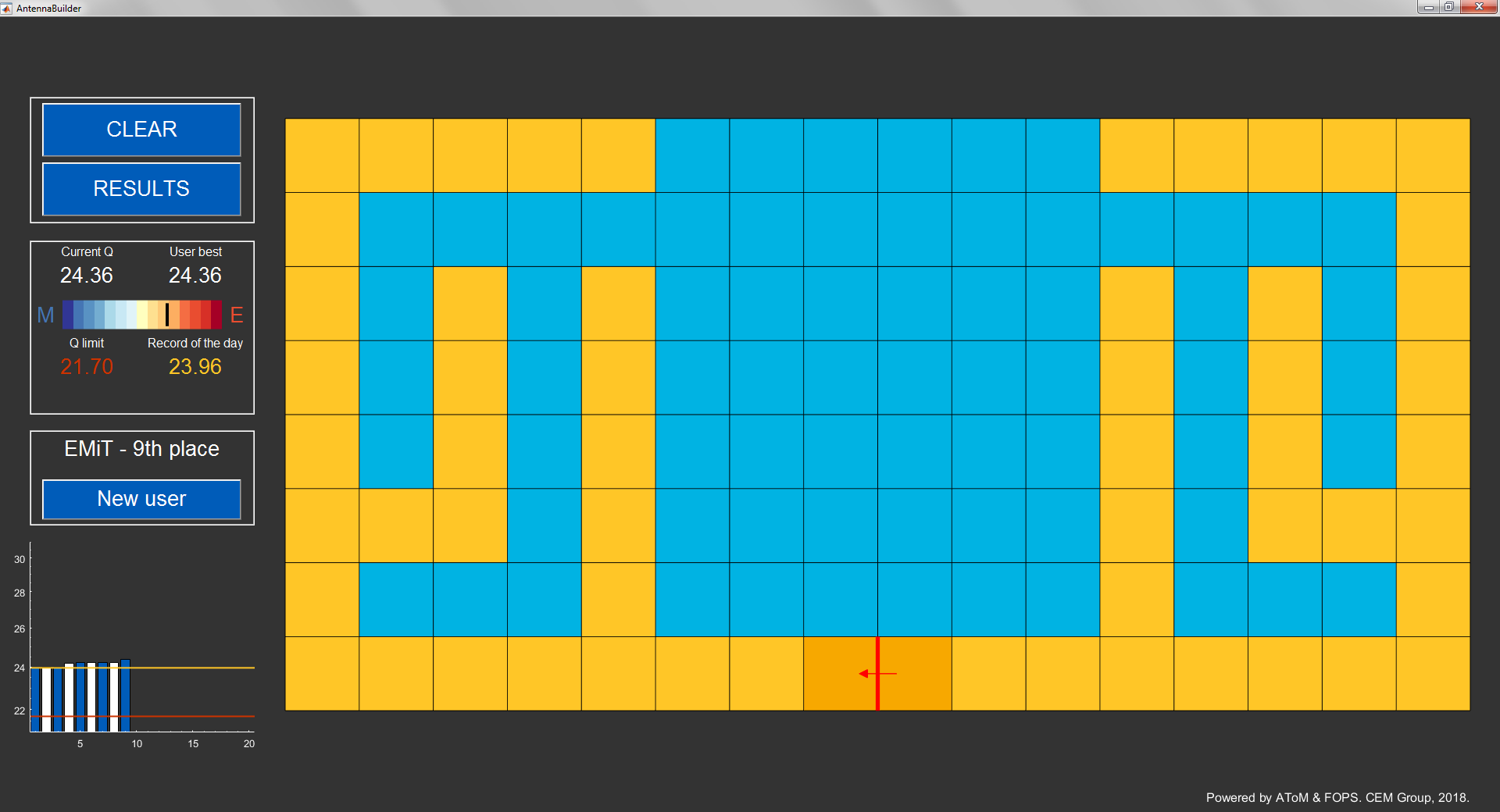

Minimize Q-factor of antenna

The computed Q-factor value invites to find an antenna which minimizes this important antenna metric. As an option, a genetic algorithm can be employed for this minimization process.

Maximize received power

Design an antenna which maximize received power from plane wave that perpendicularly incident the antenna body.

Download

The tool needs AToM package to operate (at least its free version). An option using genetic algorithm also requires FOPS package.

Antenna Builder
(ZIP, 9.71 MB)
version from Mar 27, 2020

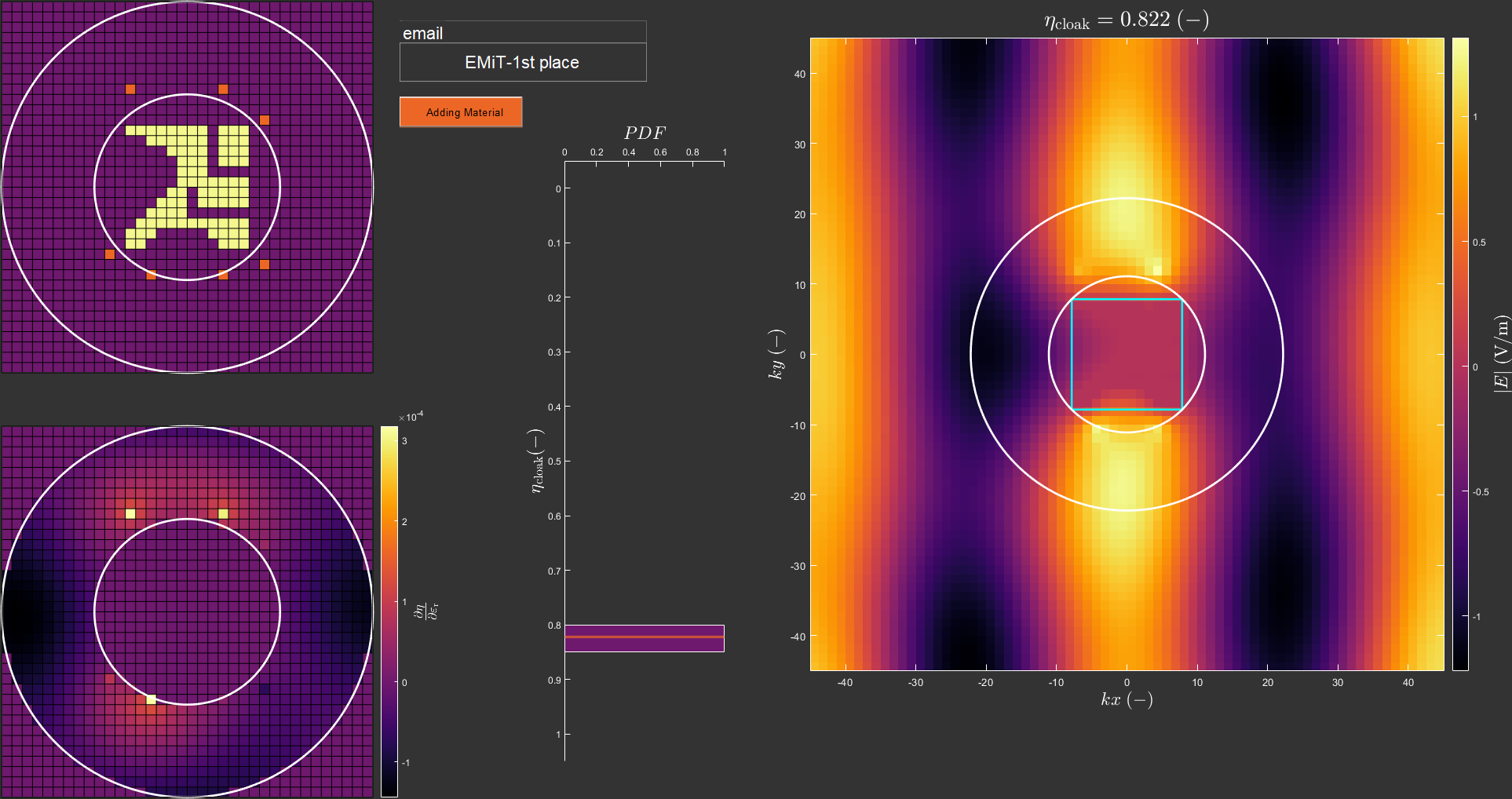

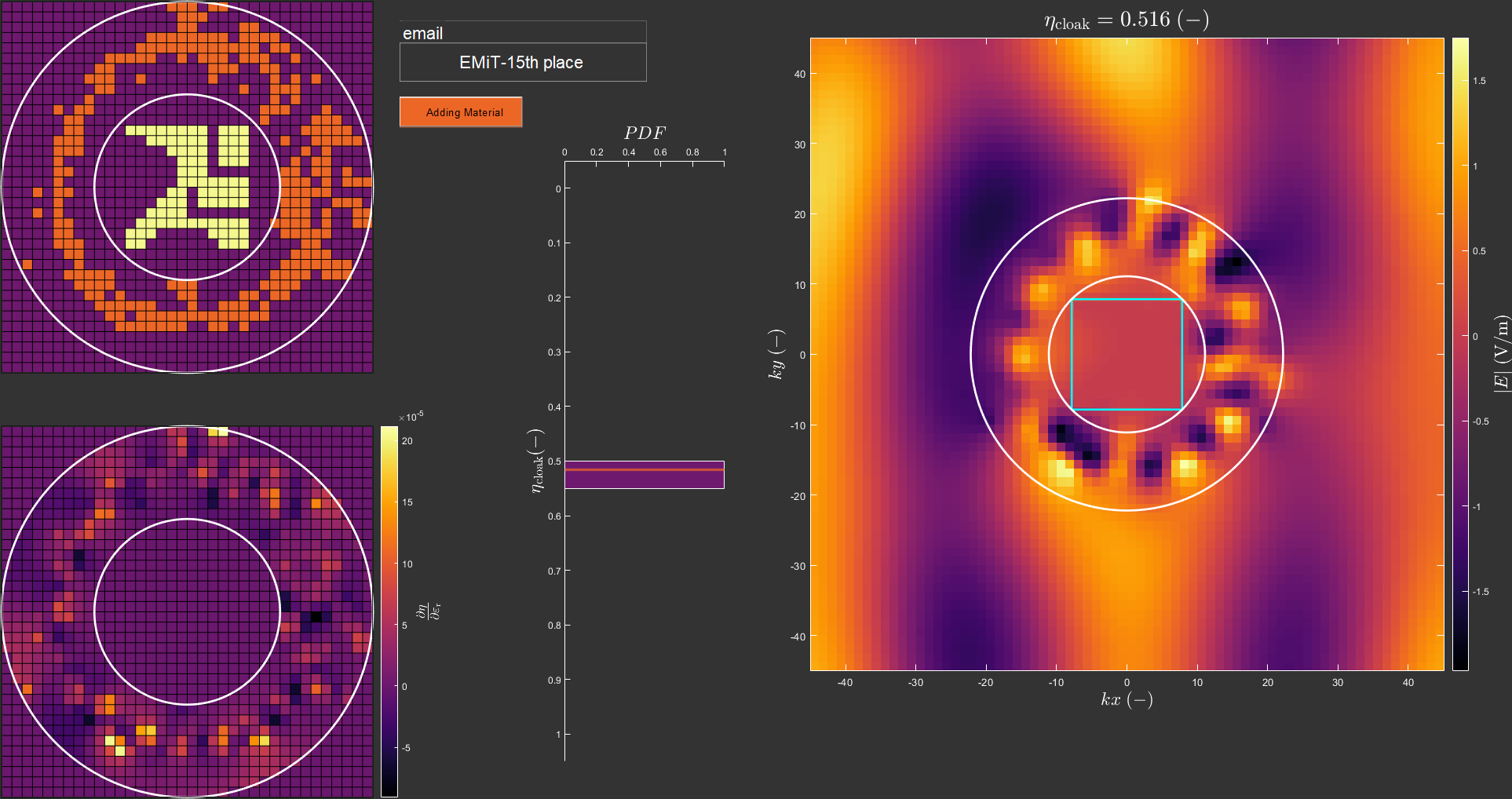

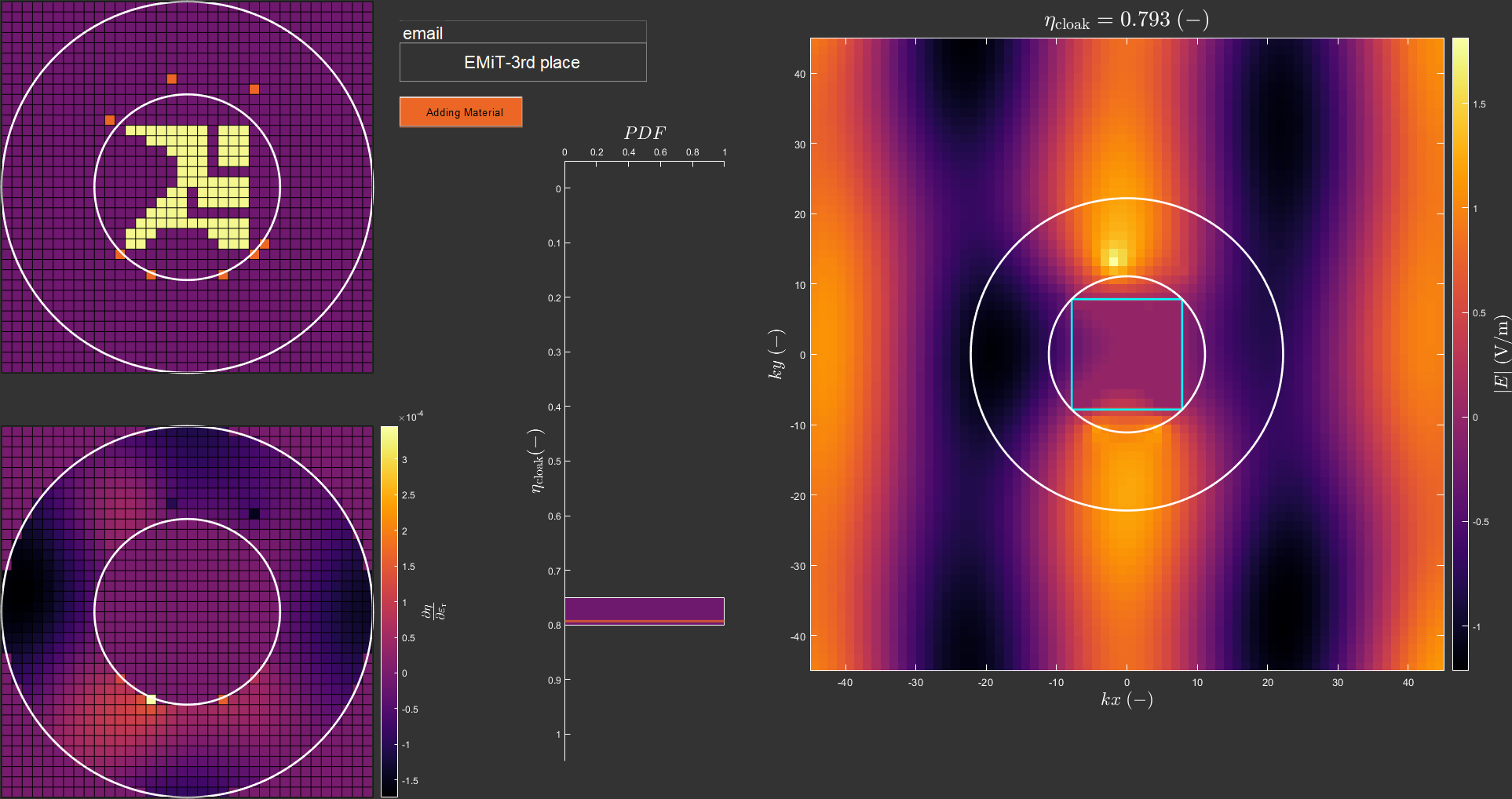

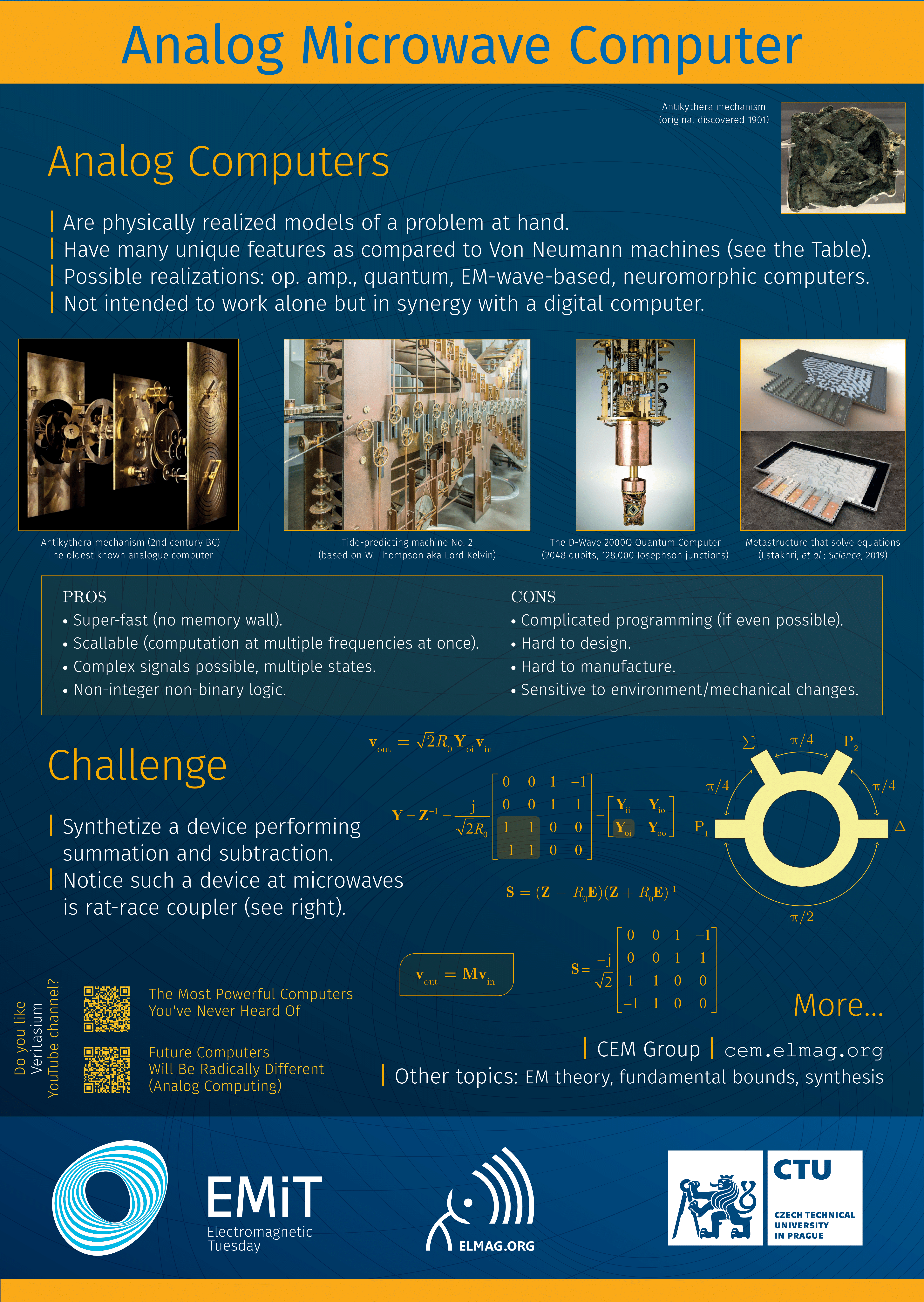

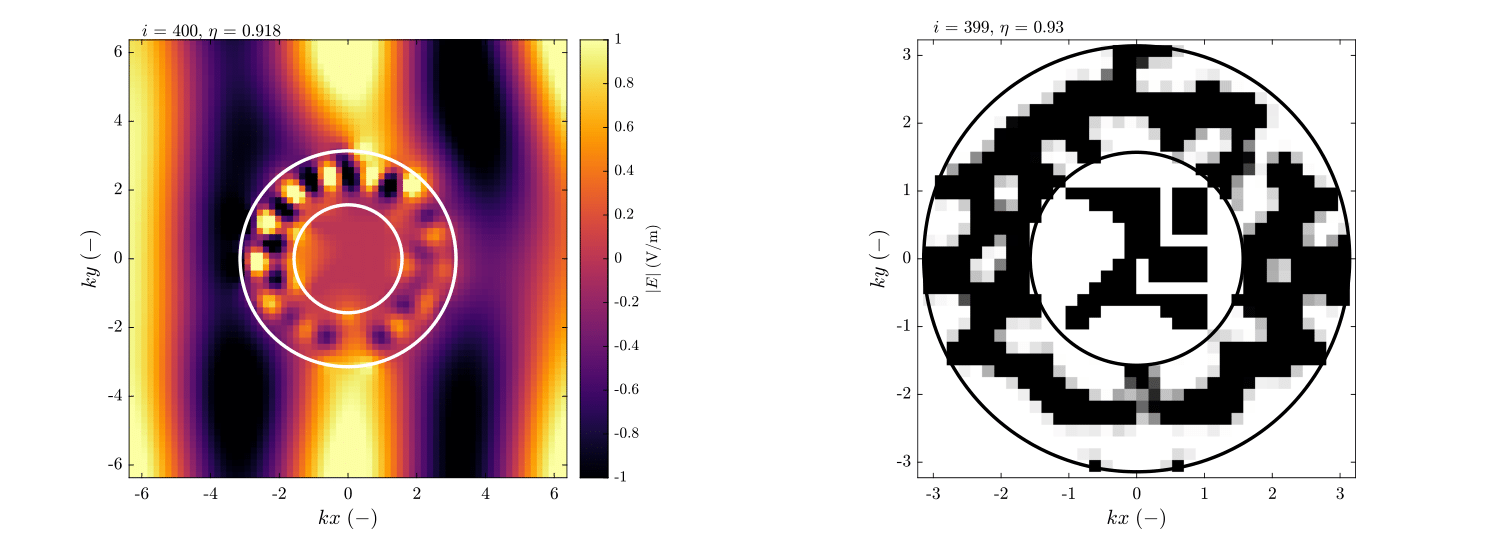

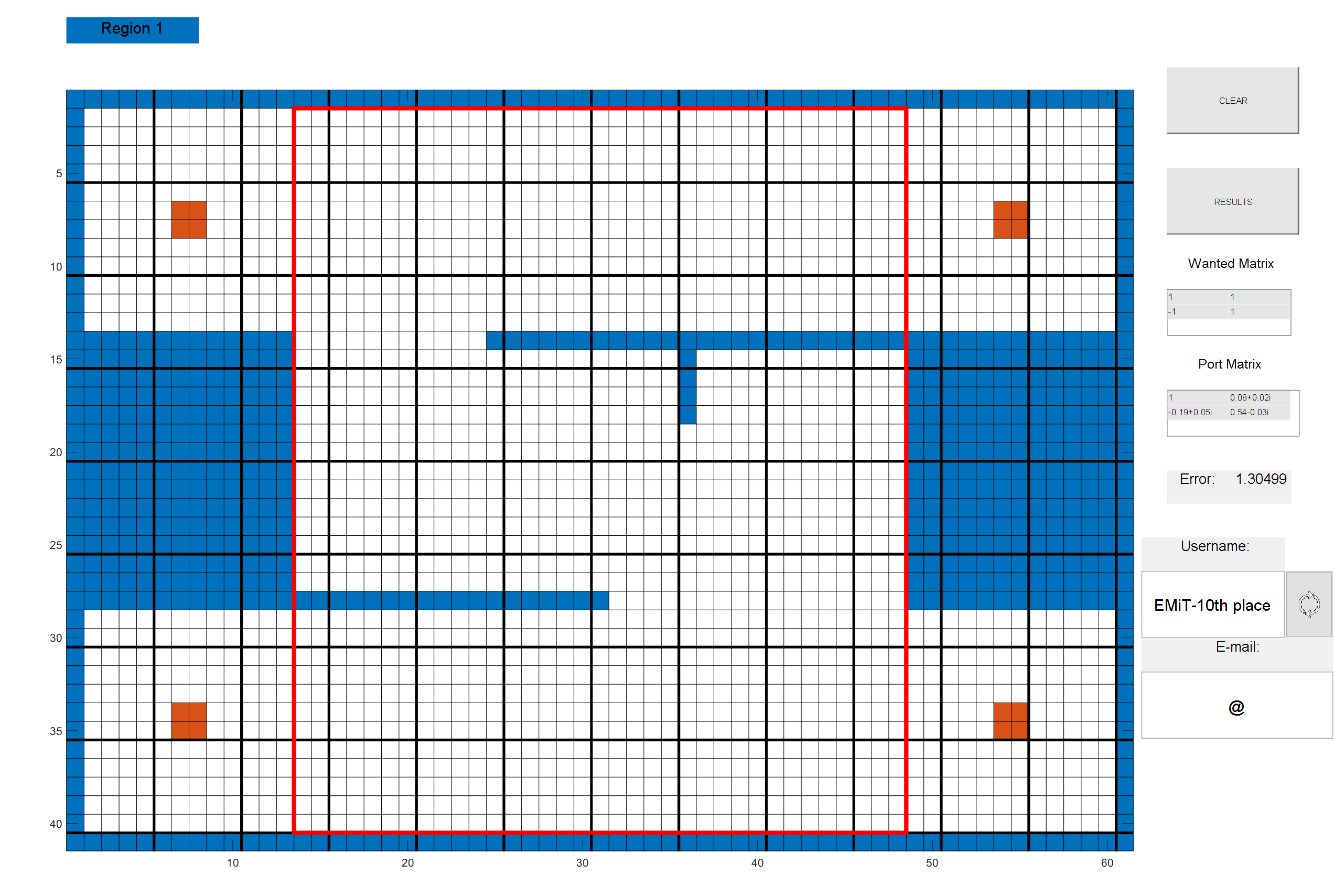

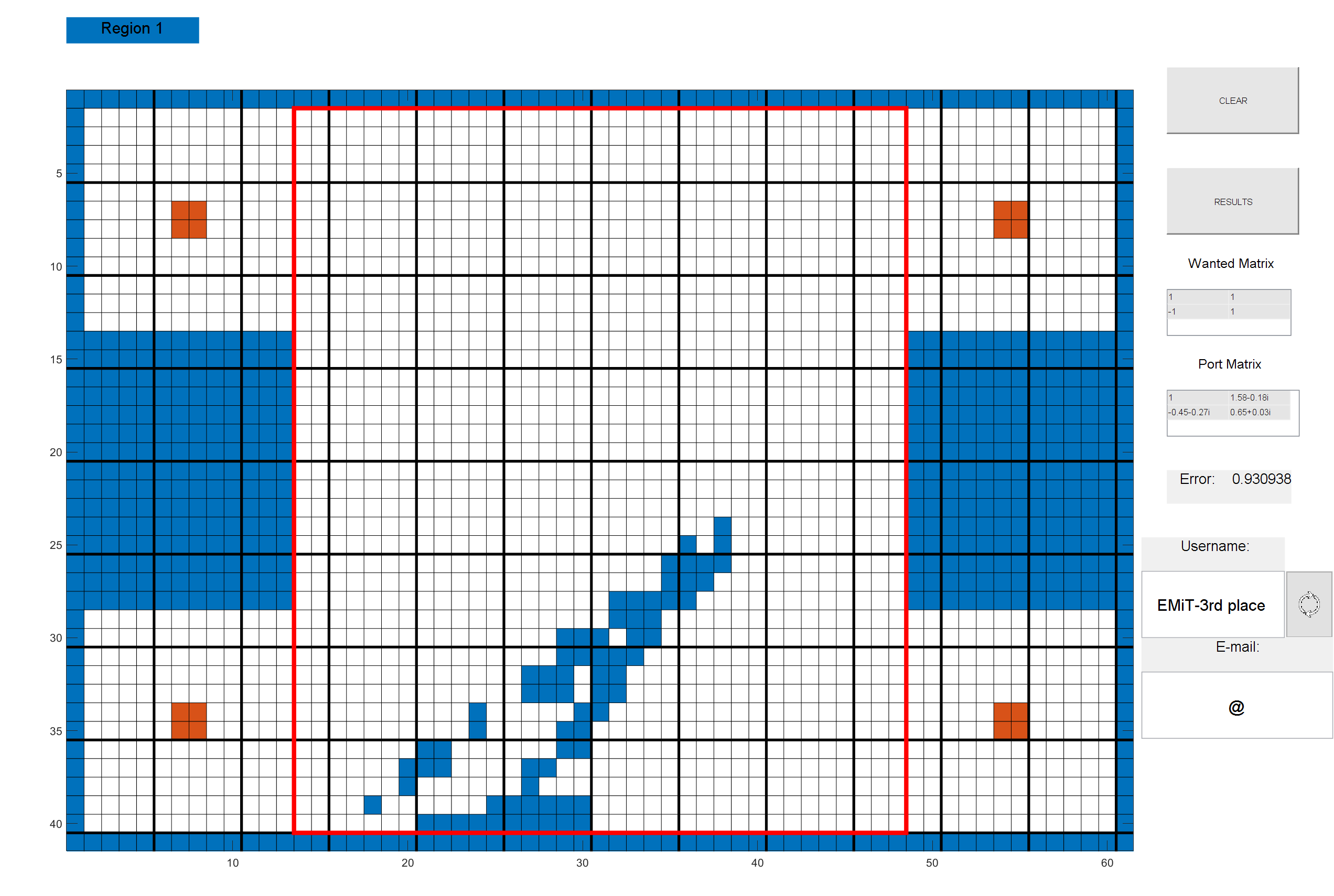

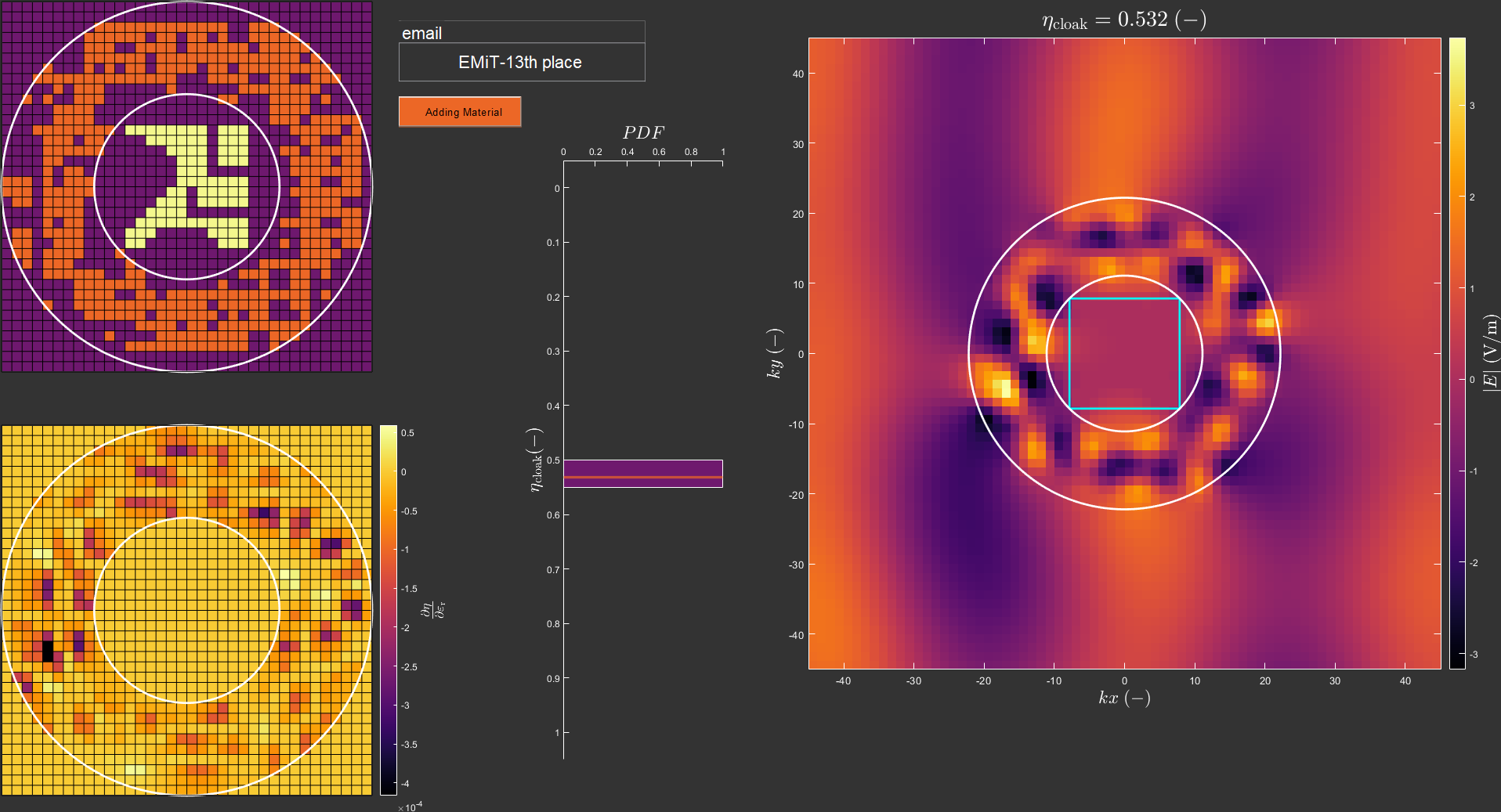

EMiT 2020

Go to EMiT 2019, EMiT 2018.

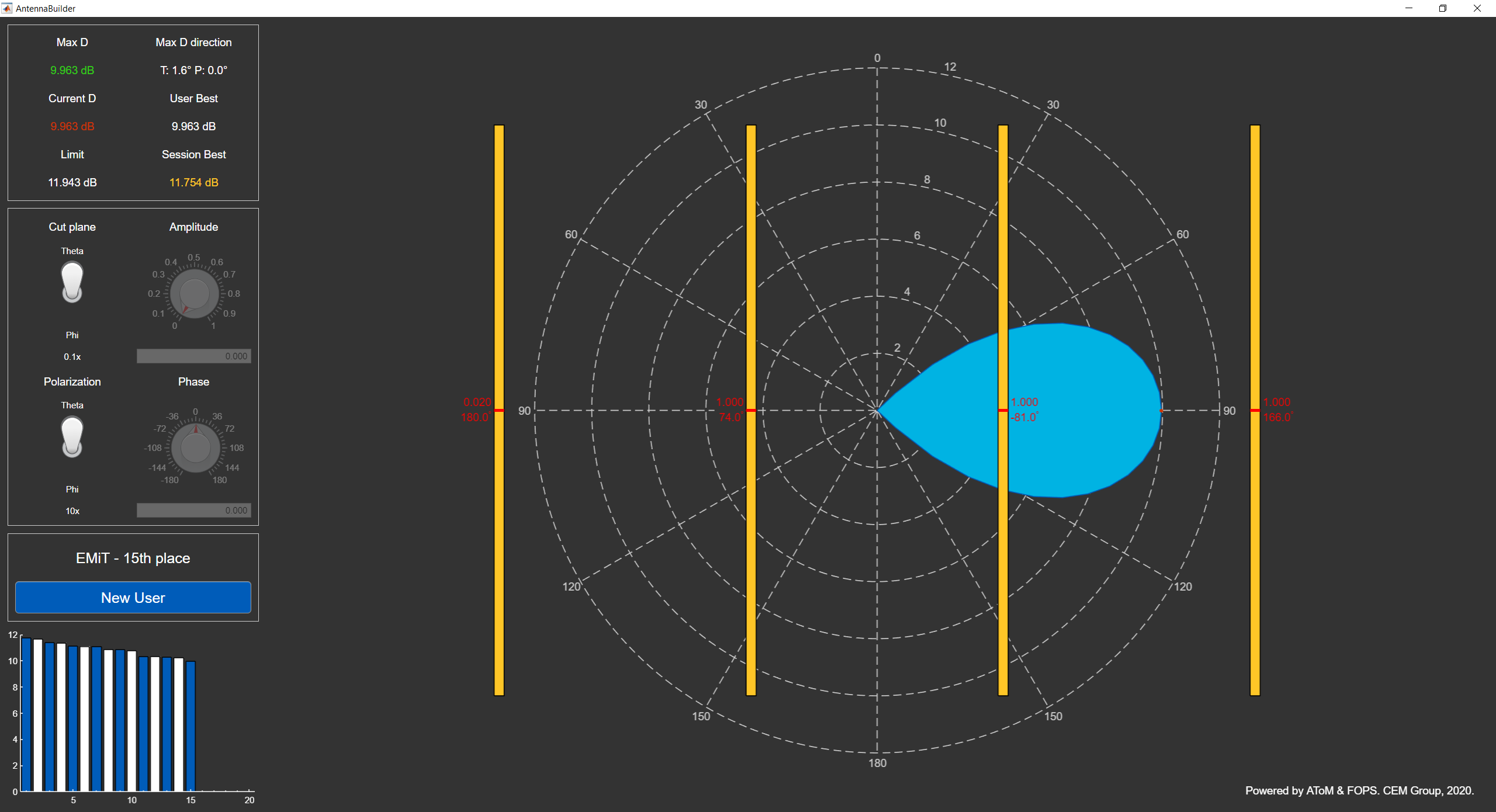

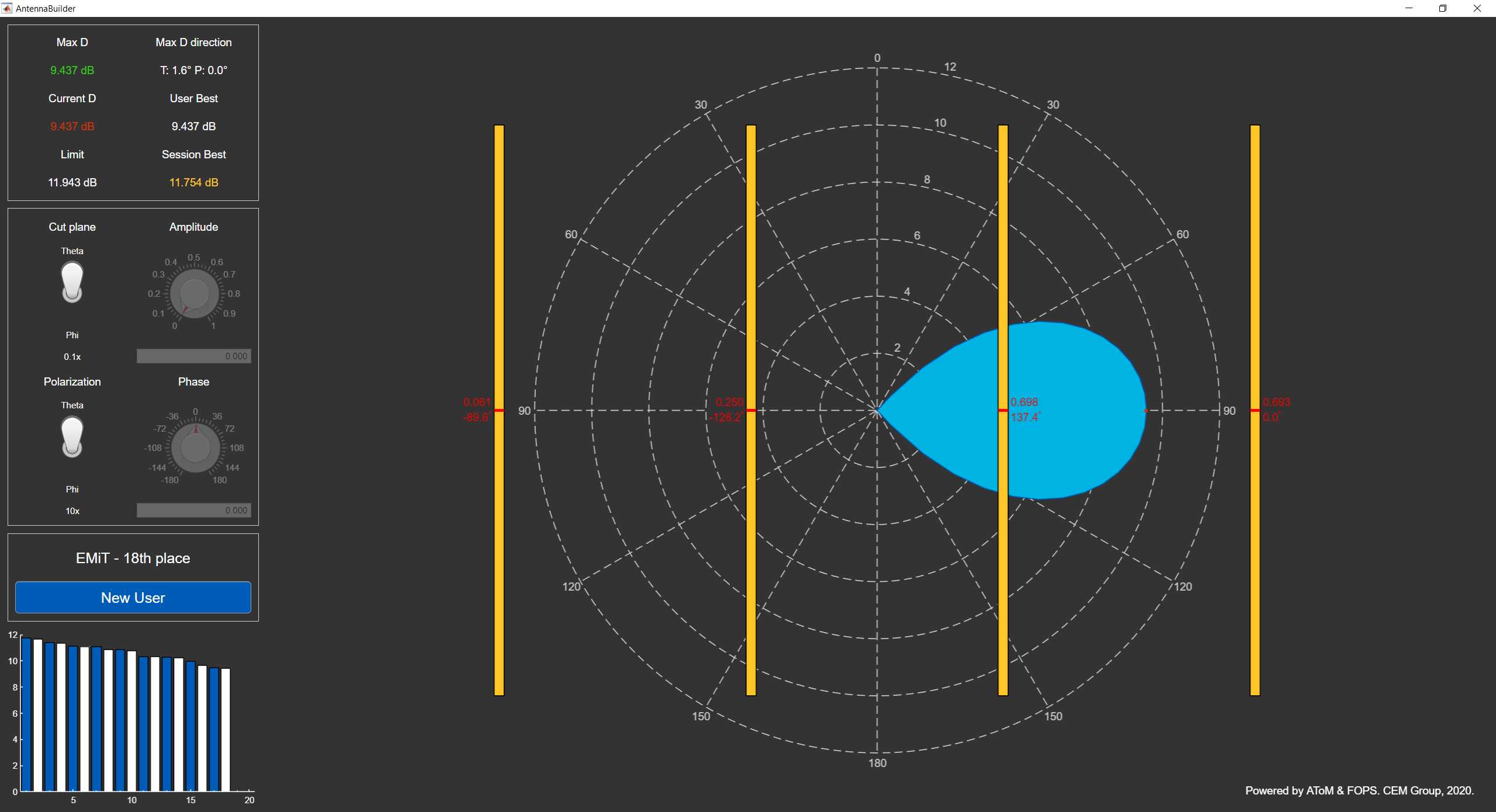

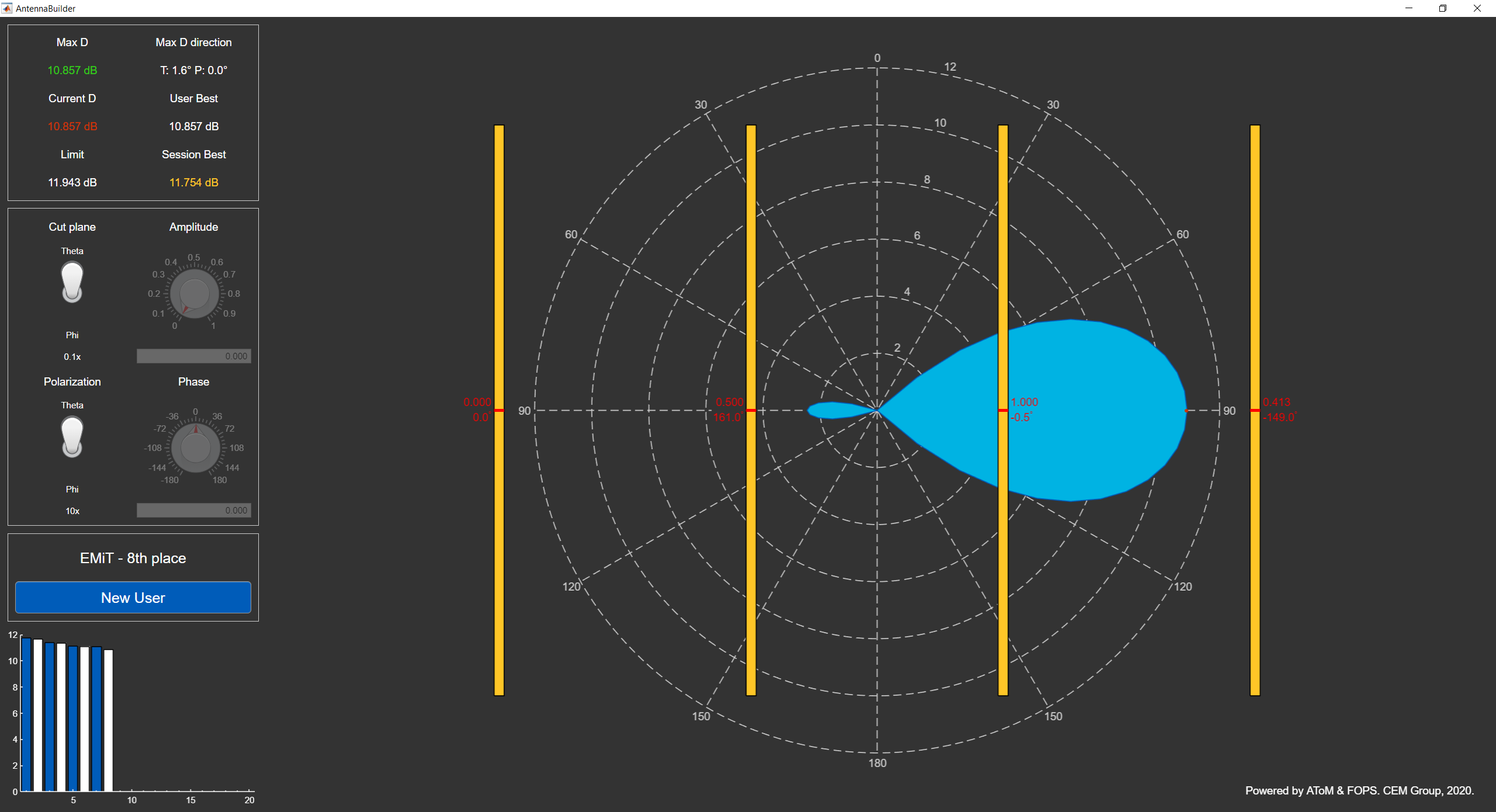

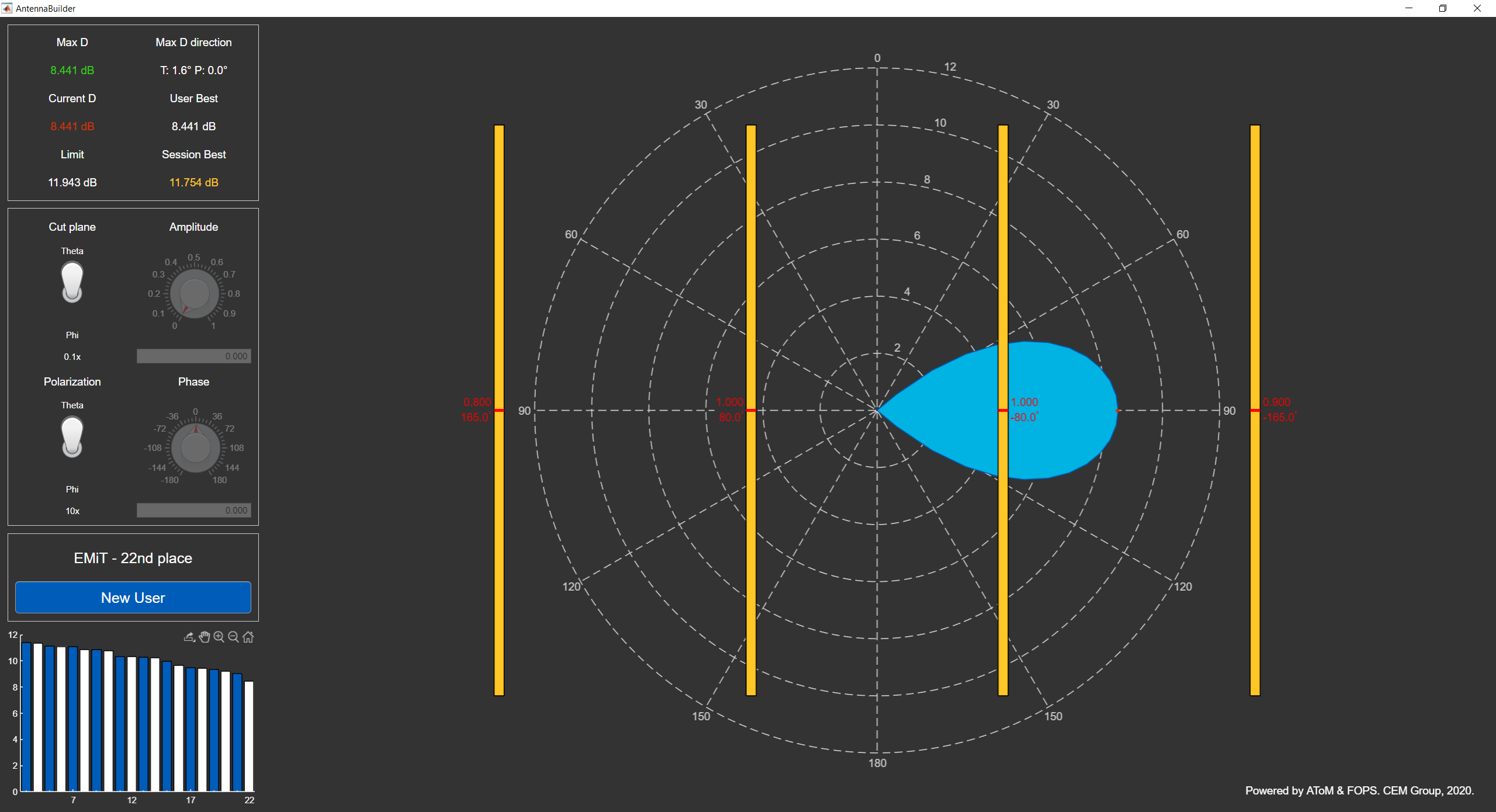

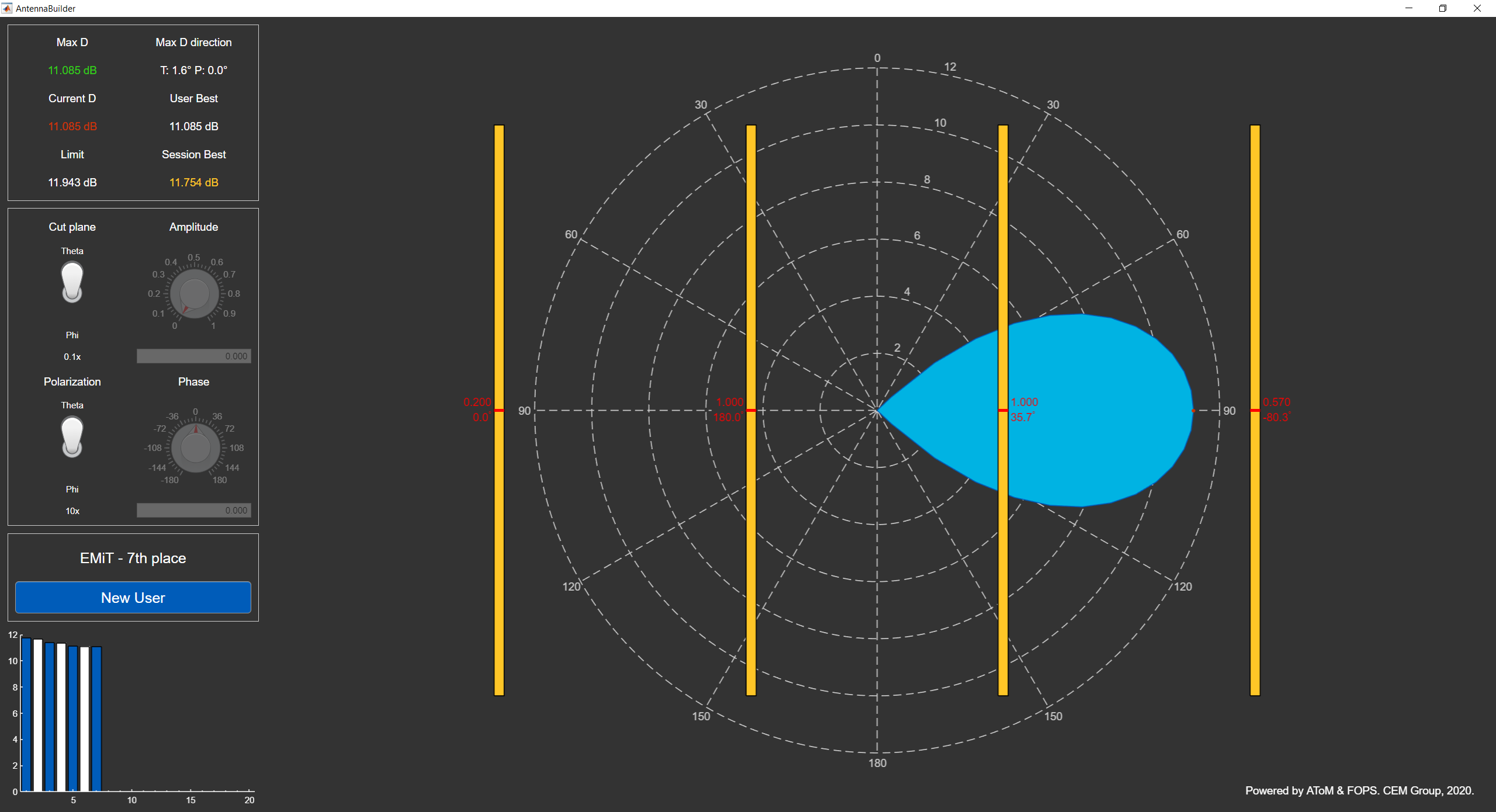

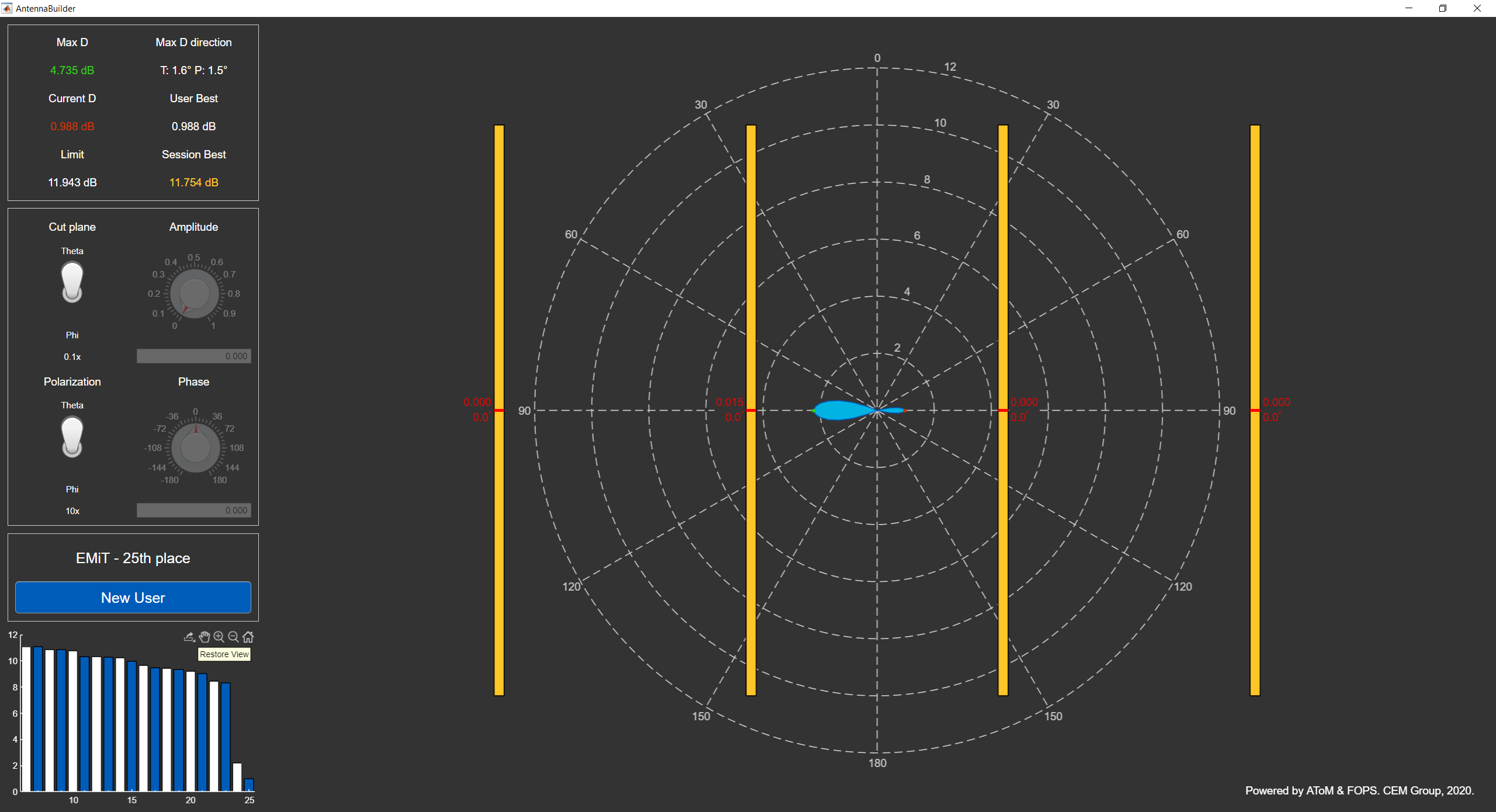

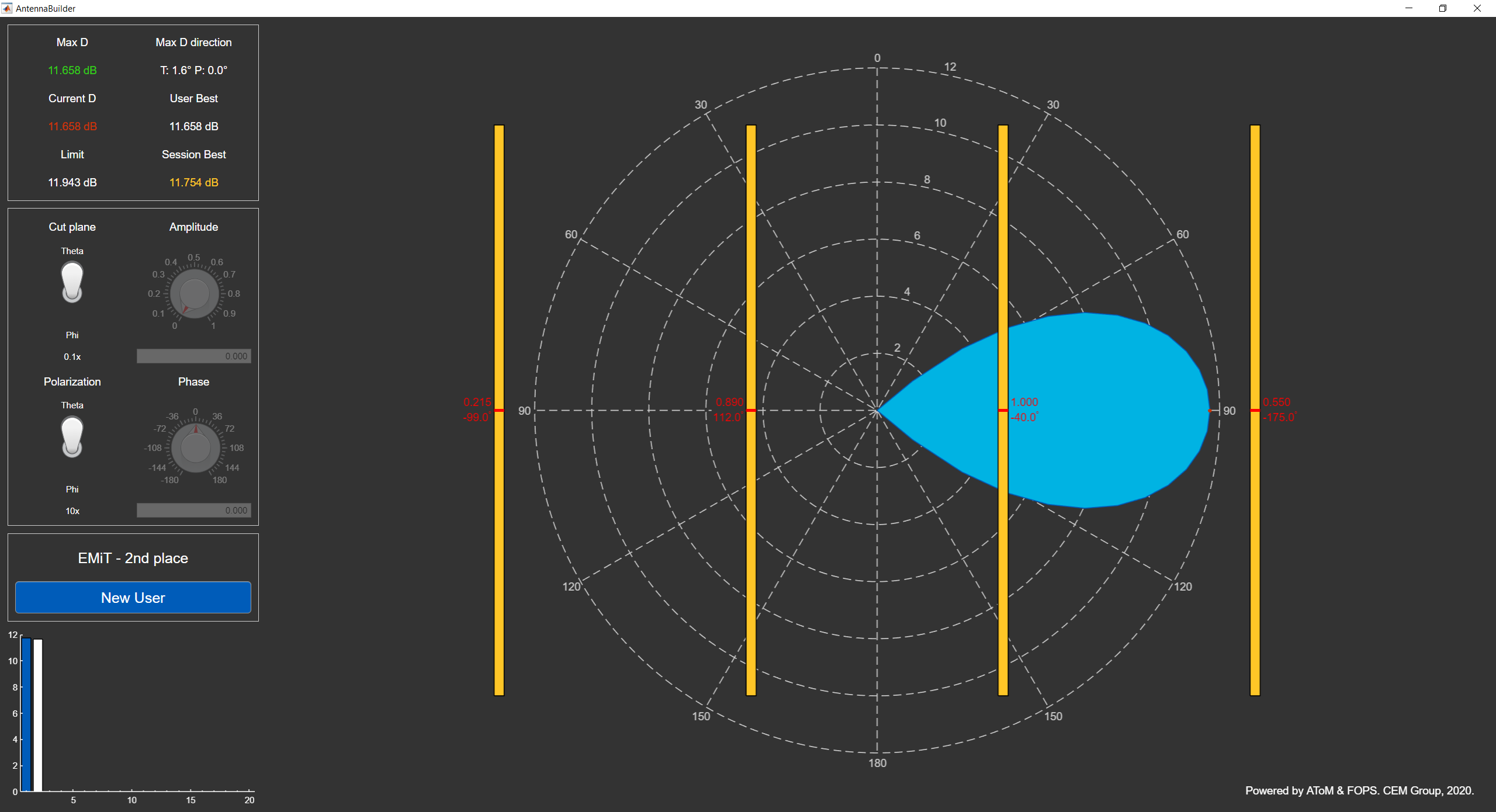

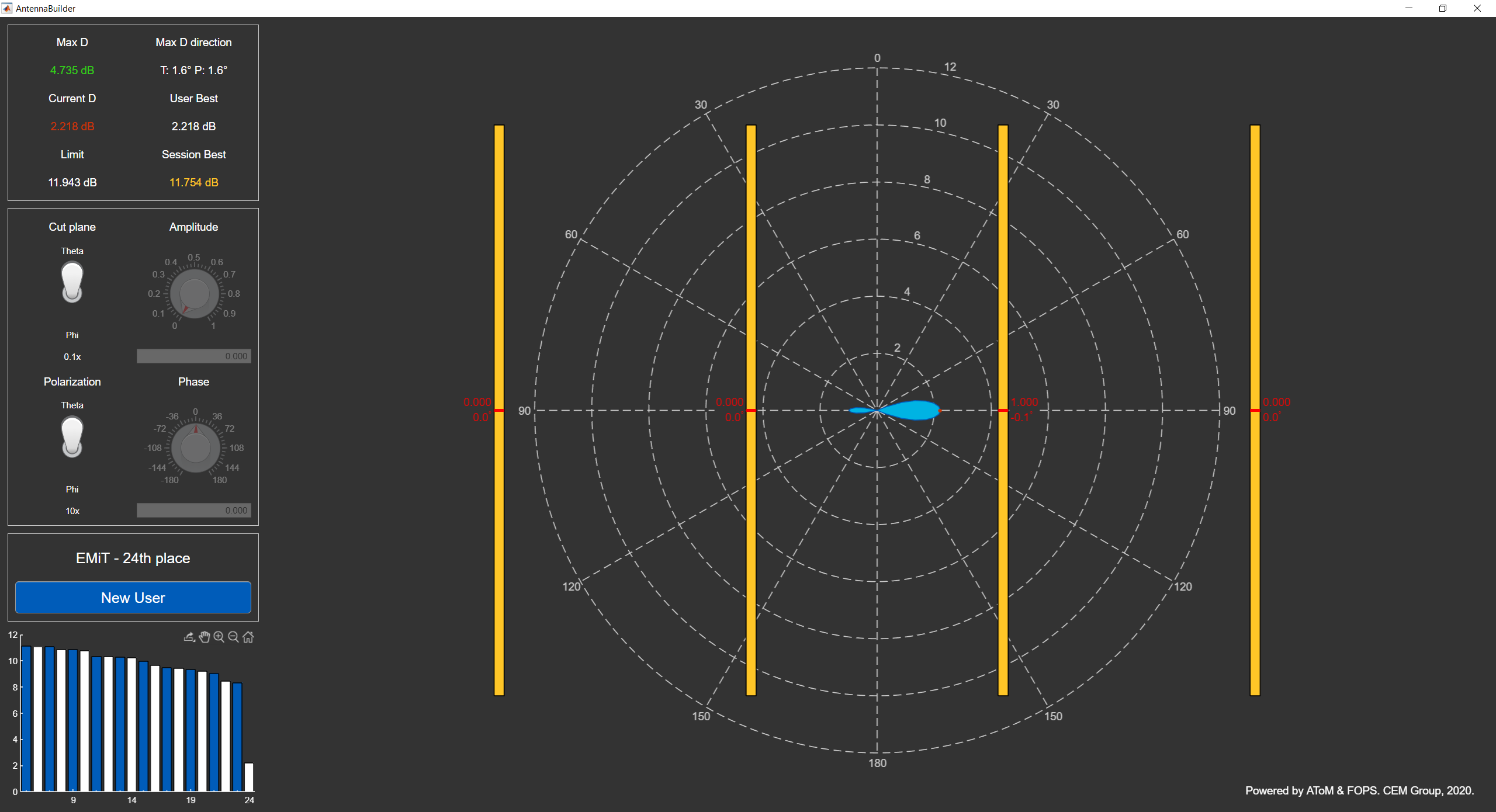

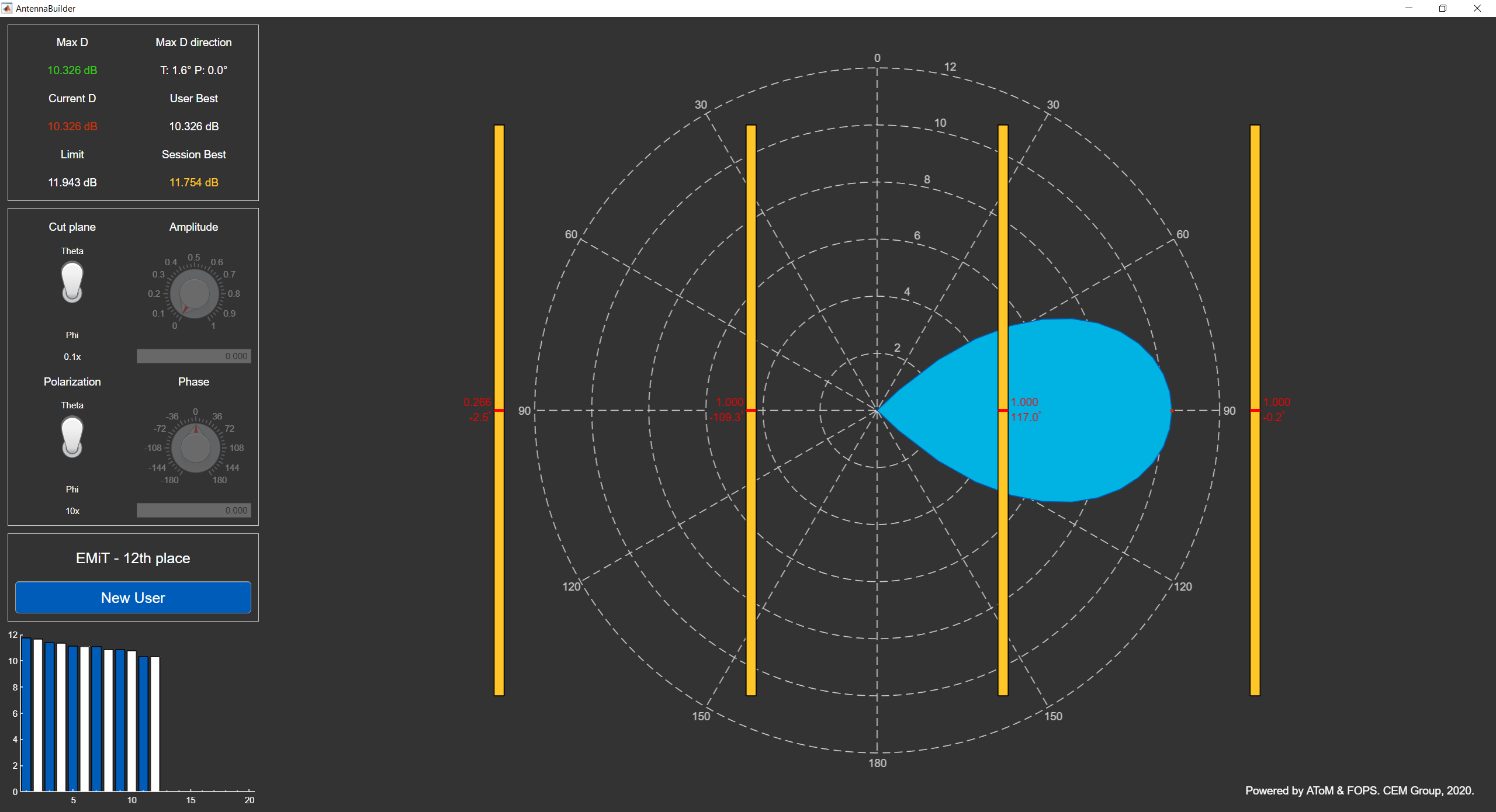

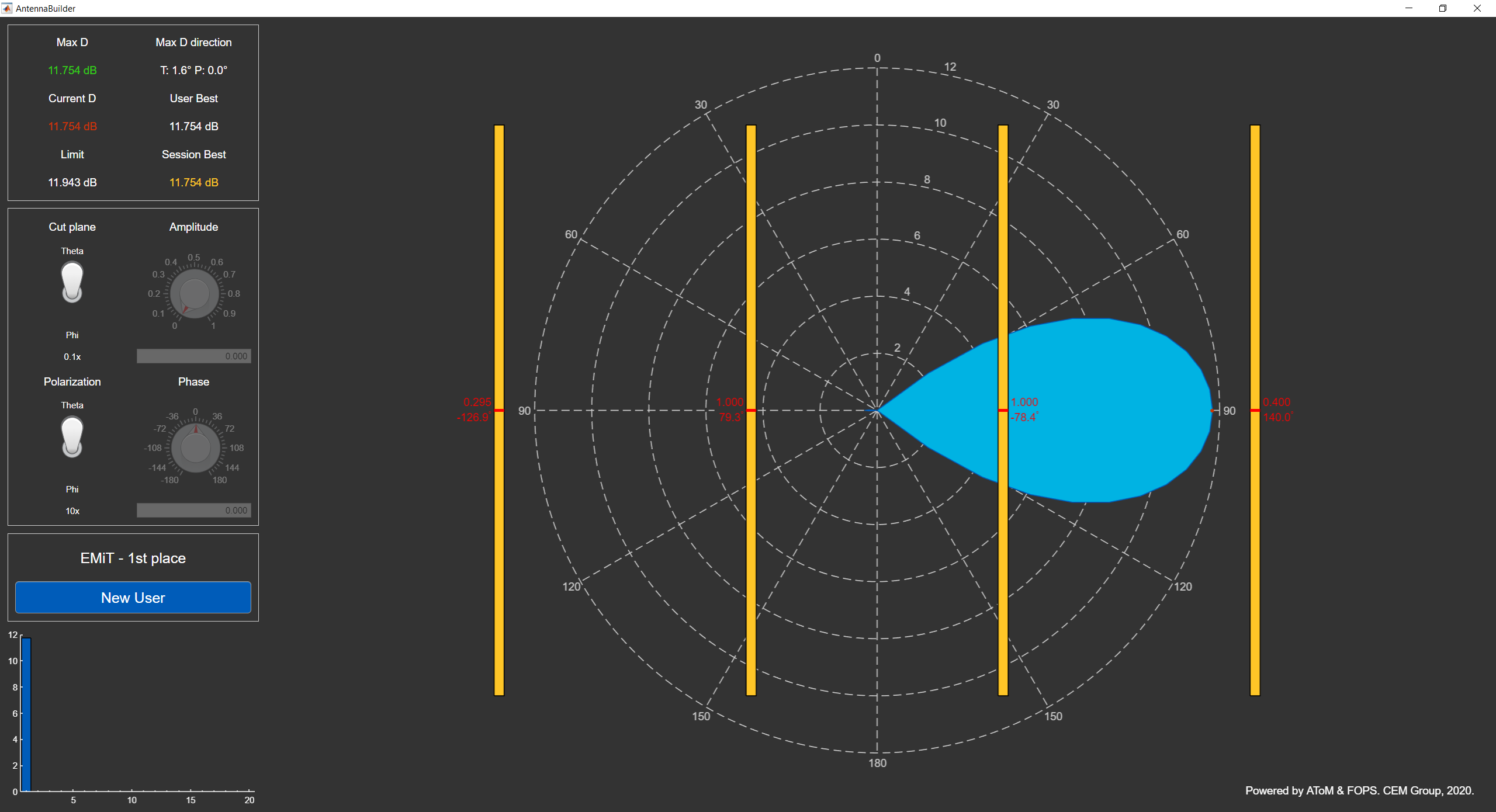

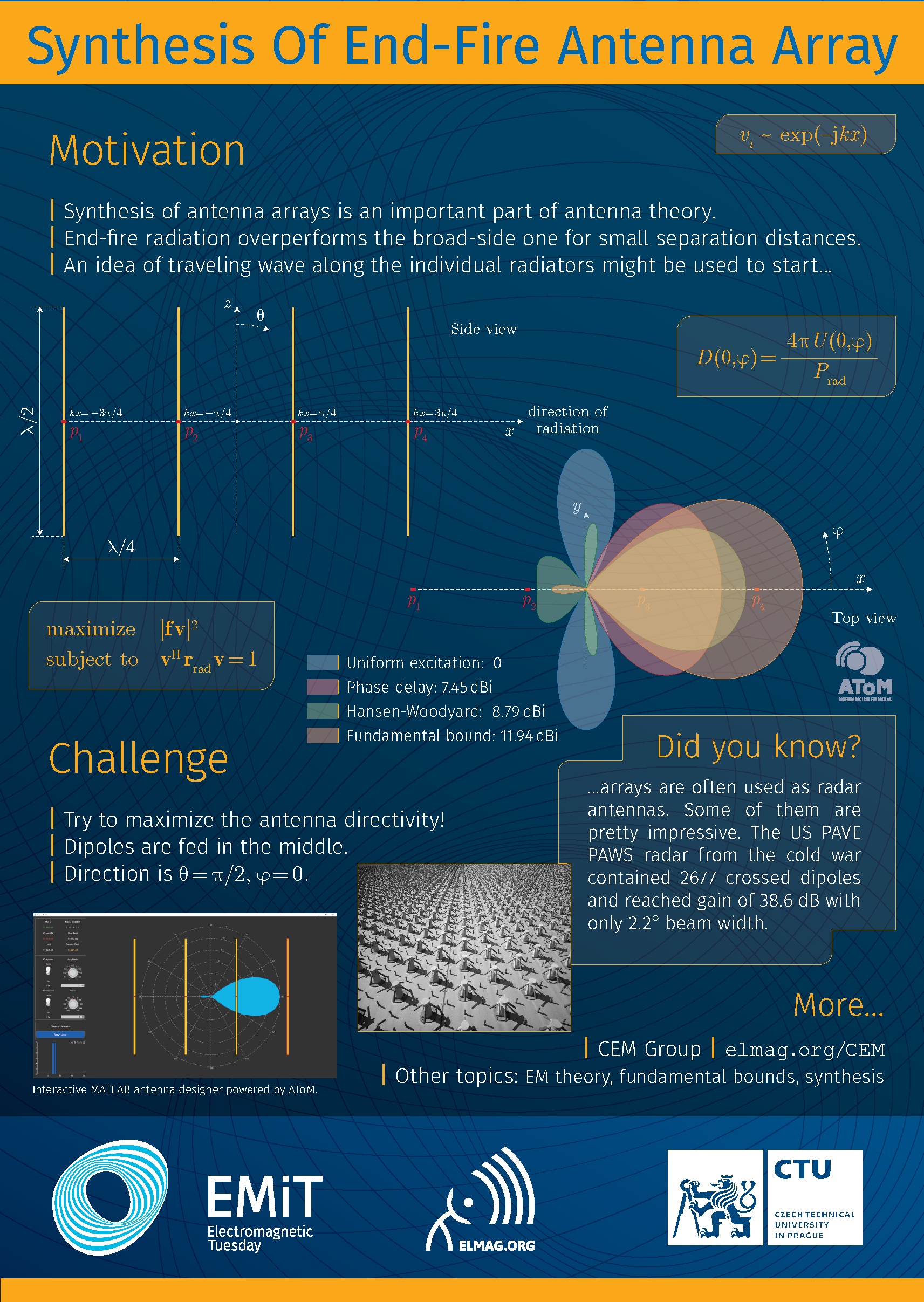

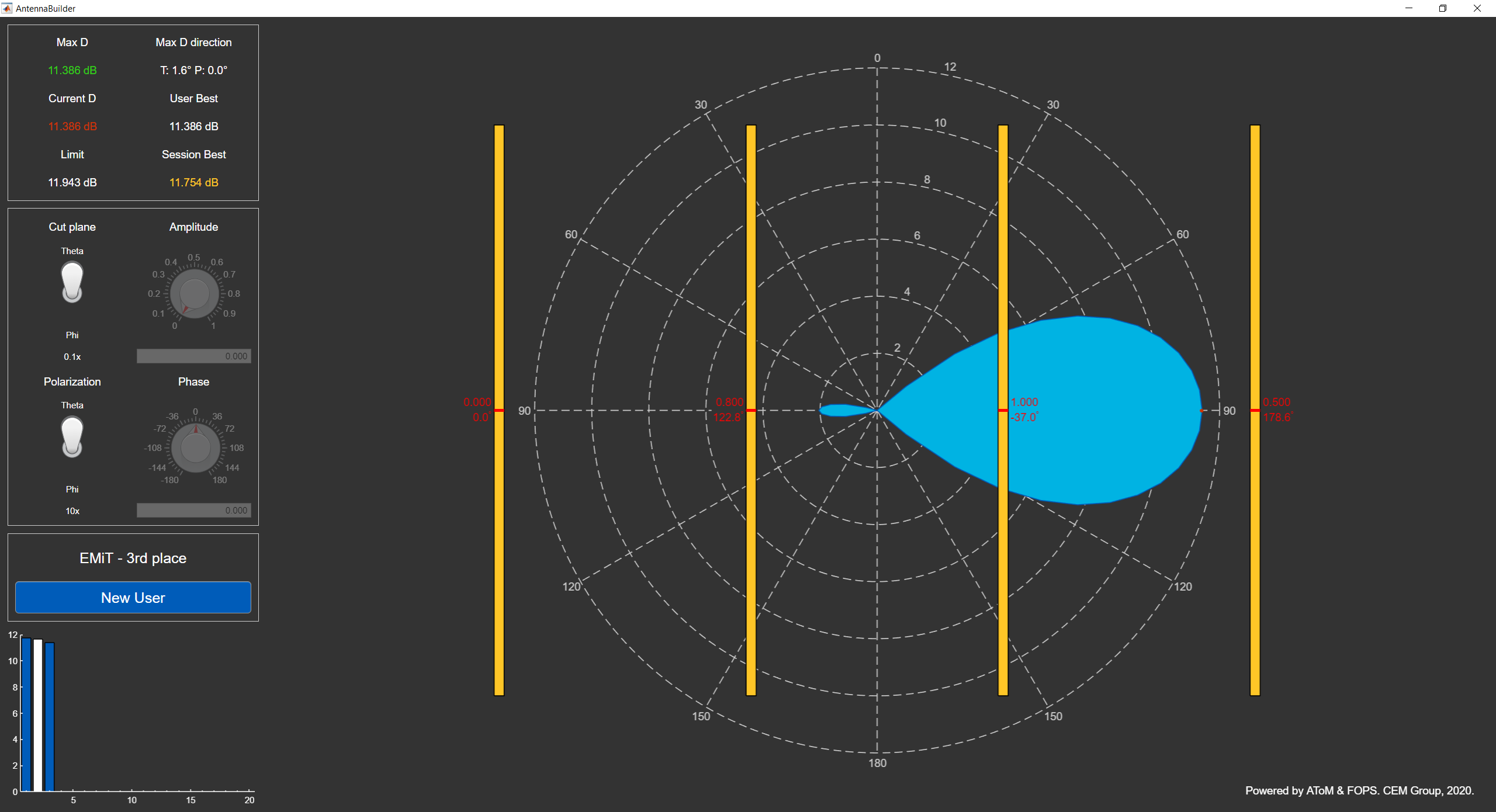

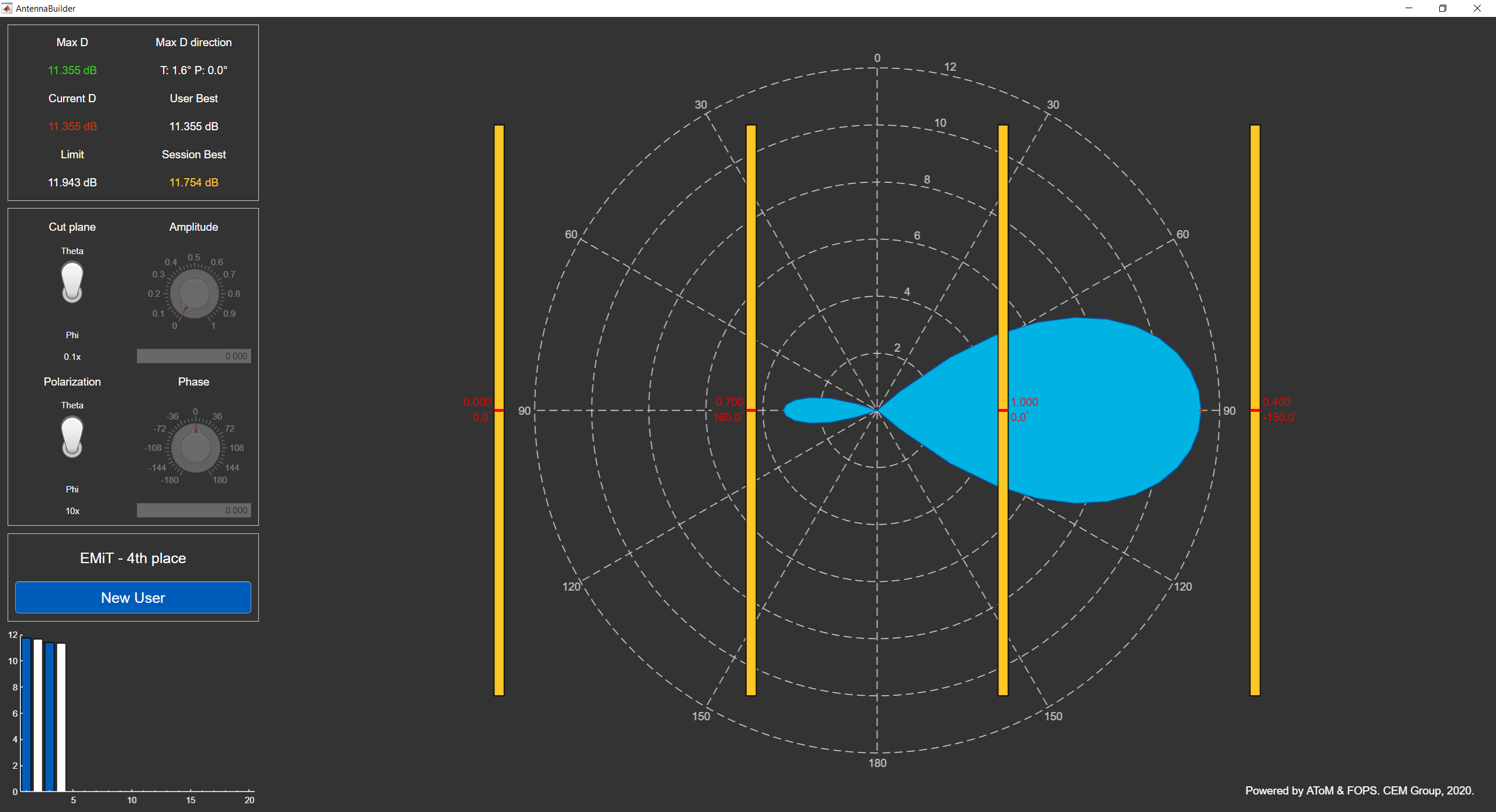

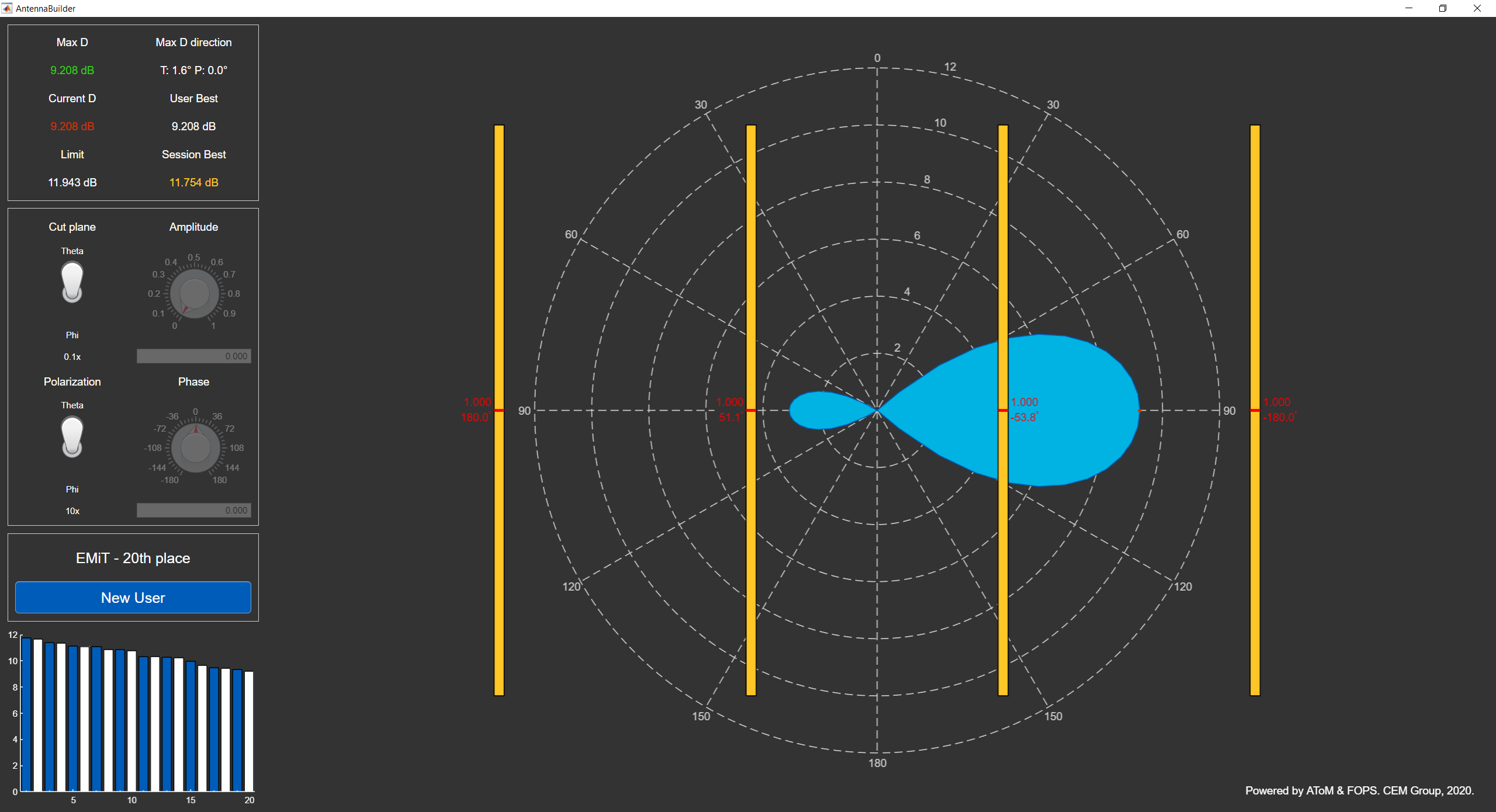

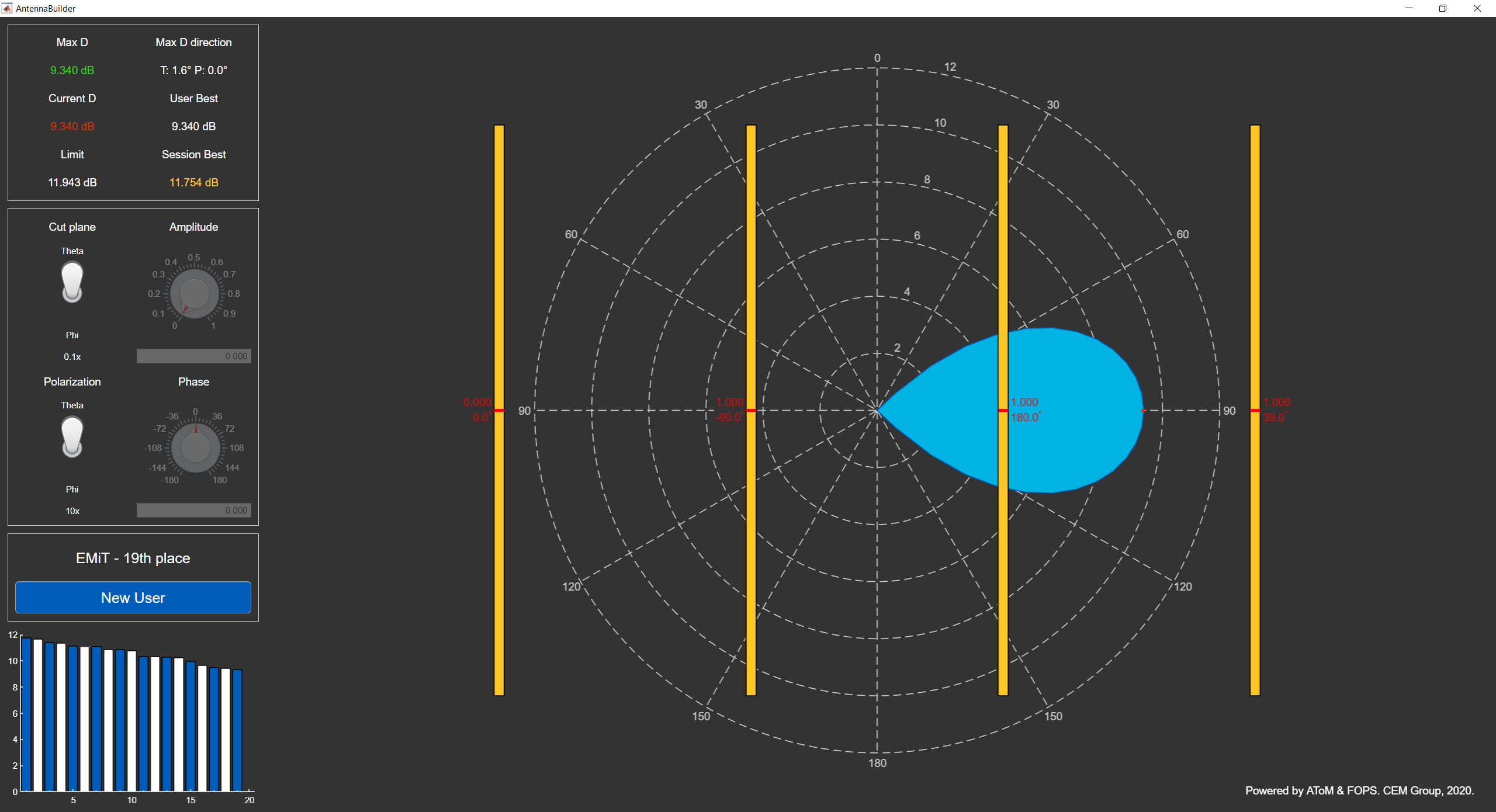

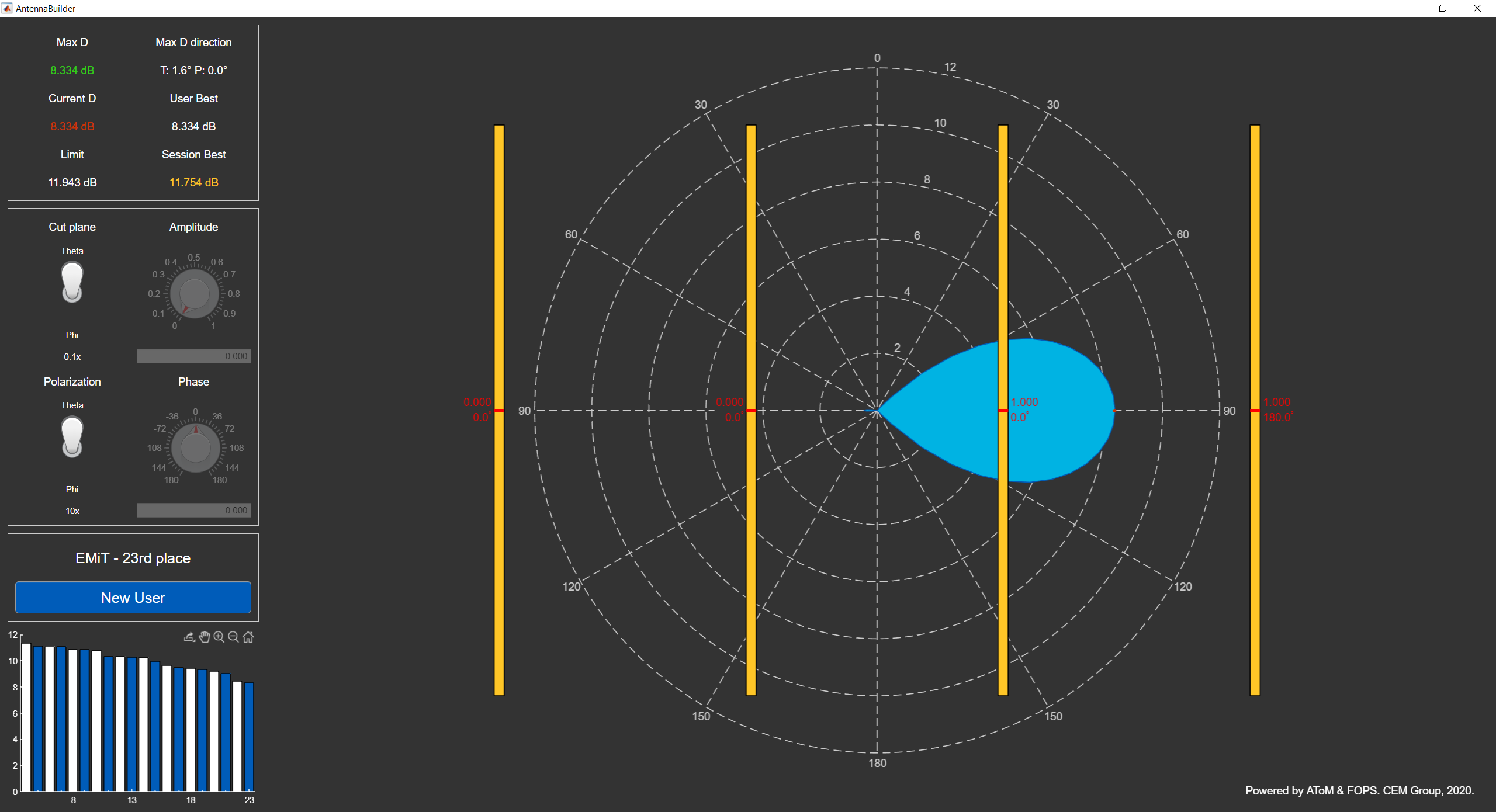

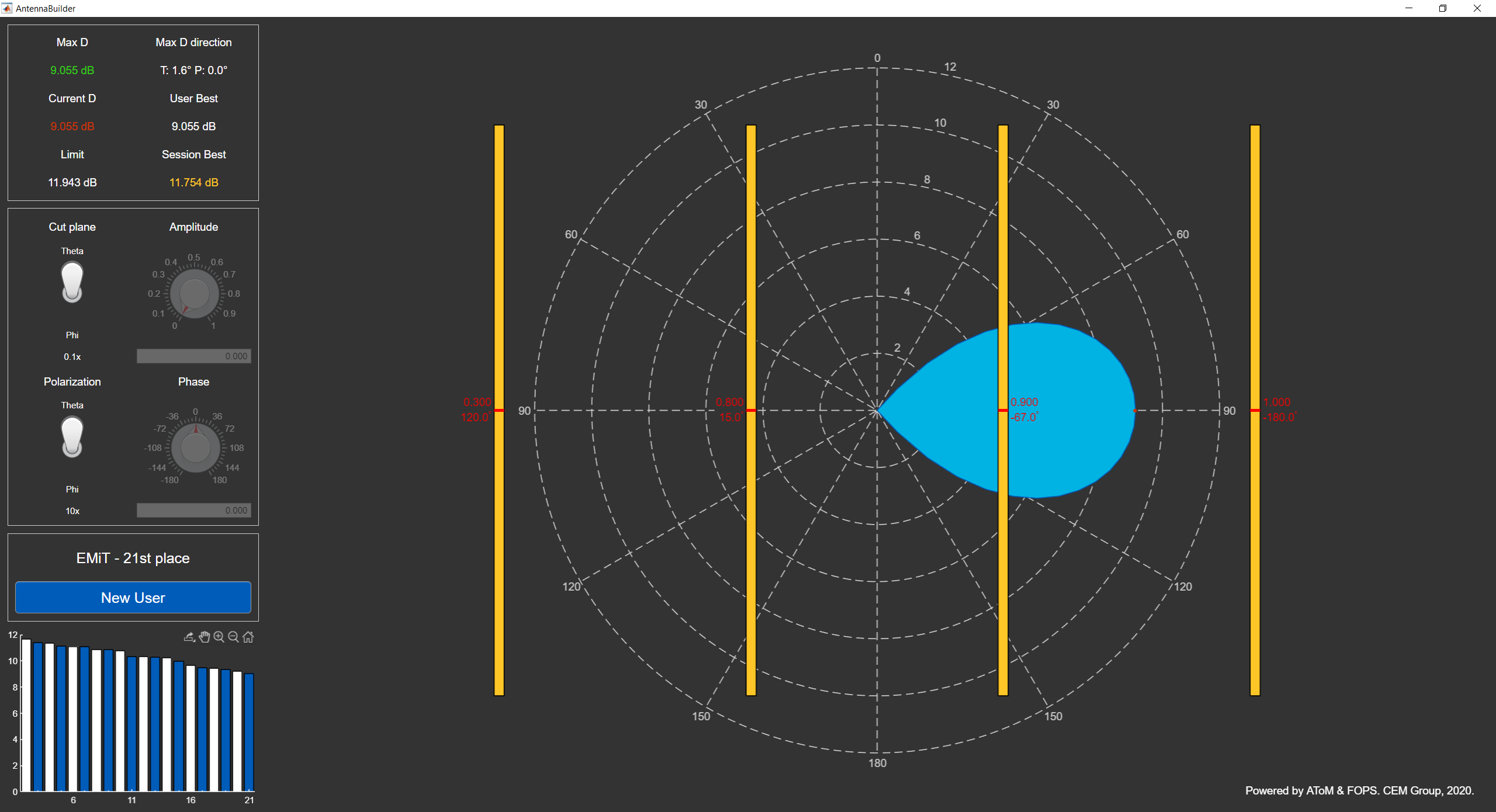

The third EMiT was held by the Department of Electromagnetic Field at CTU FEE Prague on February 25, 2020. As usual, The Antenna Builder was one of the interactive workshops with a totally new design this year! The pixeling-based tasks were replaced by an array of four dipoles. The goal was to set amplitude and phase to each feeder to maximize antenna directivity in a given direction.

Into Antenna Builder application were registered 25 users who tried 5566 attempts. The best solutions for each user are shown in the following table. Four analytical solutions displayed at the poster are included in the table.

Pos.NameBest directivity [dBi]AttemptsDesign
  Fundamental bound 11.94 --- ---
1. Kryštof Polínek 11.7539 220 Design
2. Silly Ant 11.6575 313 Design
3. Miroslav Kovář 11.3859 817 Design
4. Vojtěch Neuman 11.3549 98 Design
5. Filip Hruška 11.1266 437 Design
6. Václav Chlupatý 11.1065 143 Design
7. Kateřina Masopustová 11.0847 523 Design
8. Jonáš Tuček 10.8568 171 Design
9. Tomáš Lonský 10.8514 139 Design
10. Boris Žifčák 10.7681 142 Design

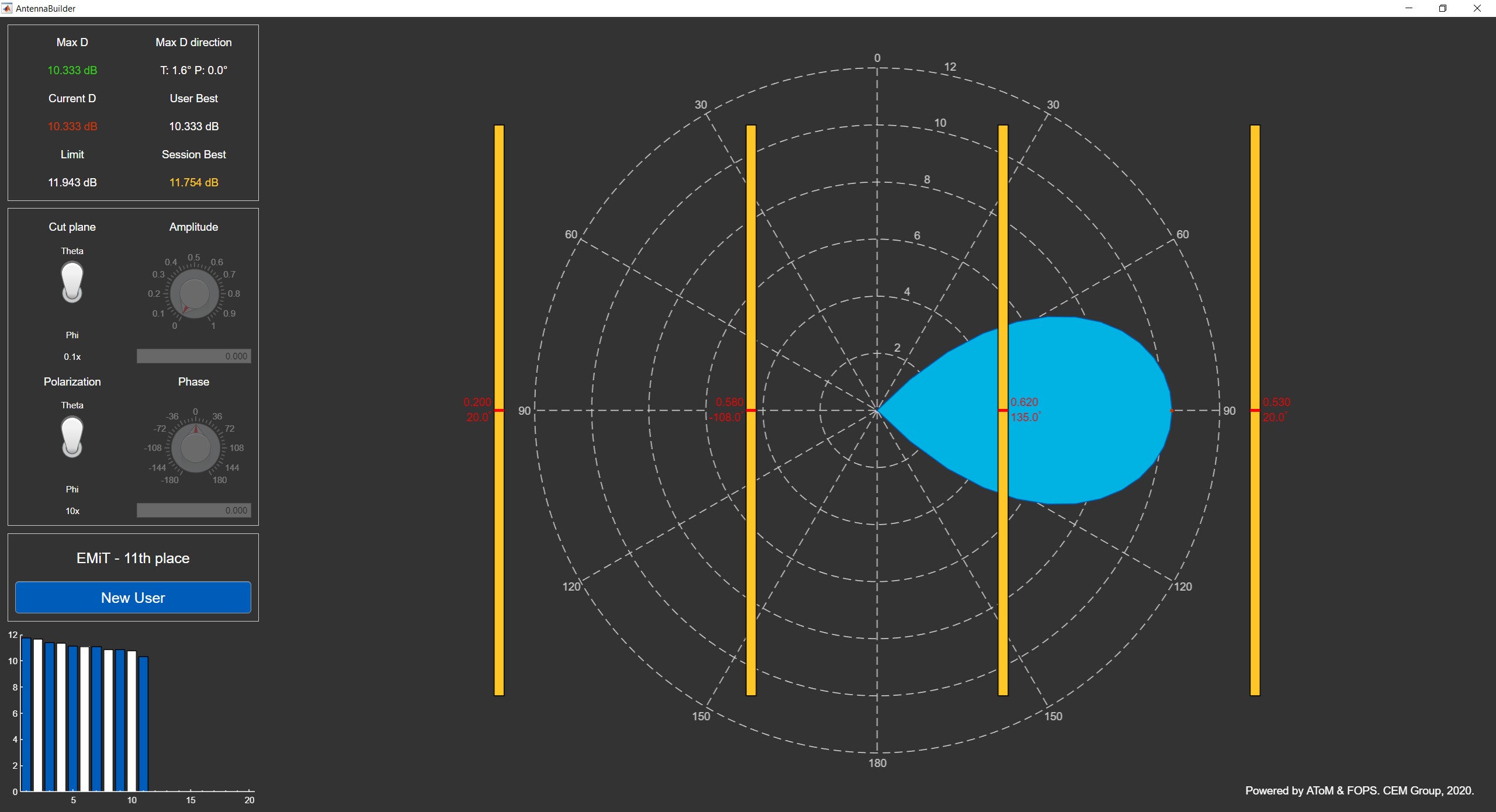

11. Angry Donkey 10.3328 192 Design
12. Josef Gajdušek 10.3263 217 Design
13. Tomáš Kouba 10.2744 454 Design
14. Marek Jína 10.2444 323 Design
15. Antonín Holub 9.9627 264 Design
16. Radek Sochor 9.6500 91 Design
17. Vladimír Buriánek 9.4693 186 Design
18. Pavel Sýkora 9.4367 100 Design
19. Martin Laštovka 9.3397 118 Design
20. Michael Kimmer 9.2077 280 Design
21. Jiří Maier 9.0550 210 Design
  Hansen-Woodyard 8.79 --- ---
22. Pavel Staněk 8.4414 36 Design
23. Happy Camel 8.3344 37 Design
  Phase delay 7.45 --- ---
24. Nervous Cat 2.2182 22 Design
25. Silly Lion 0.9884 18 Design
  Uniform excitation 0 --- ---

EMiT 2019

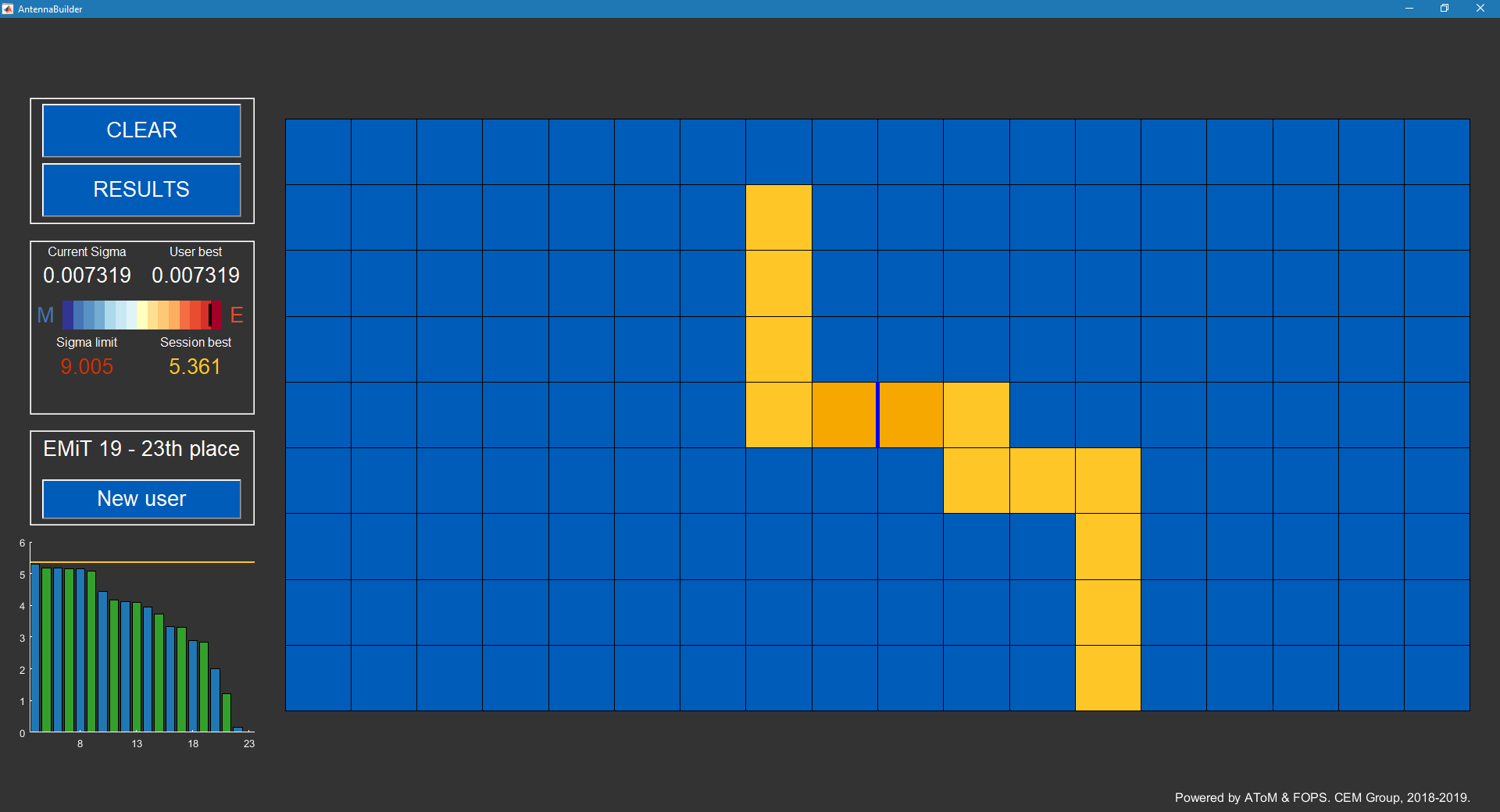

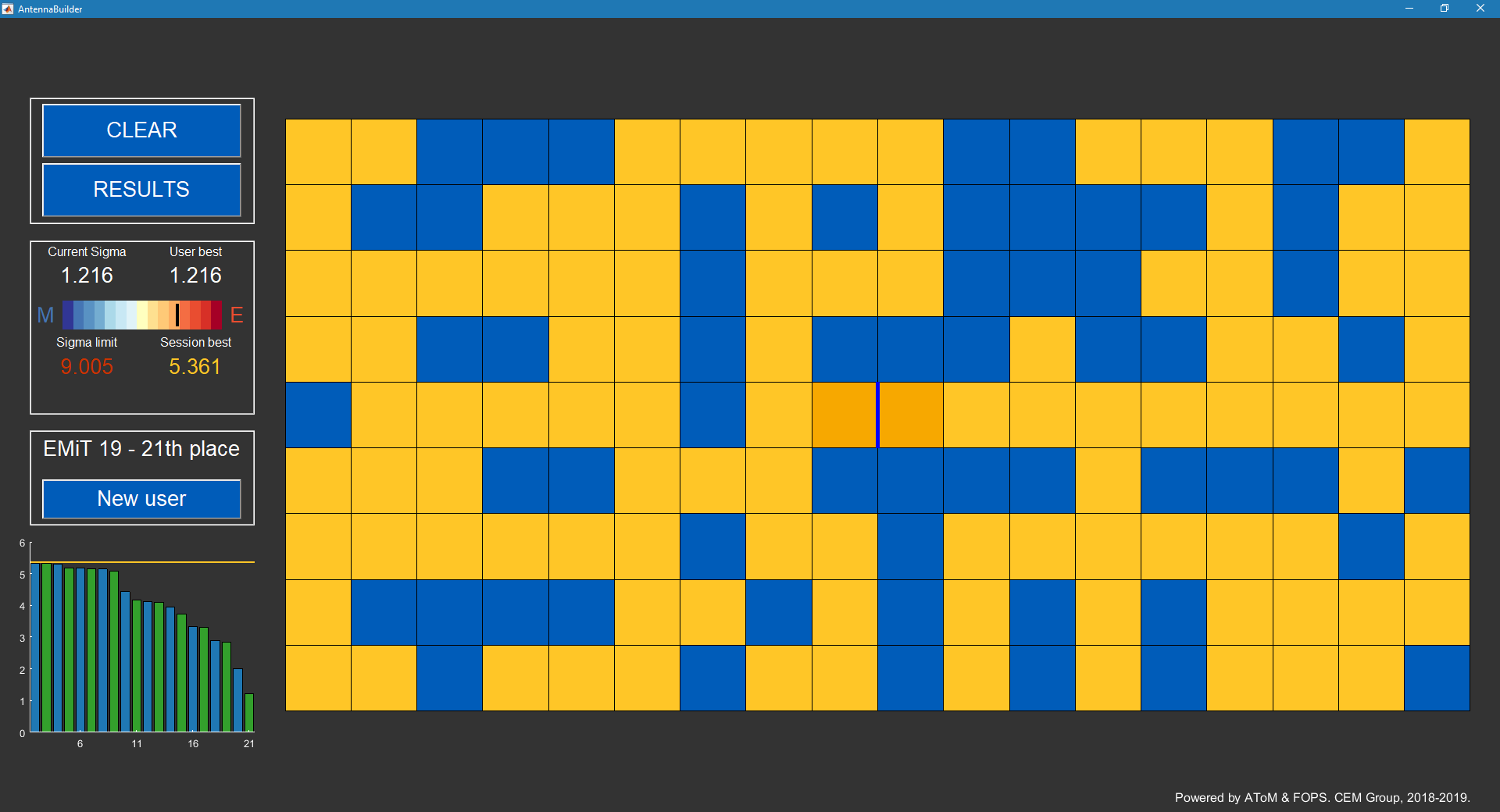

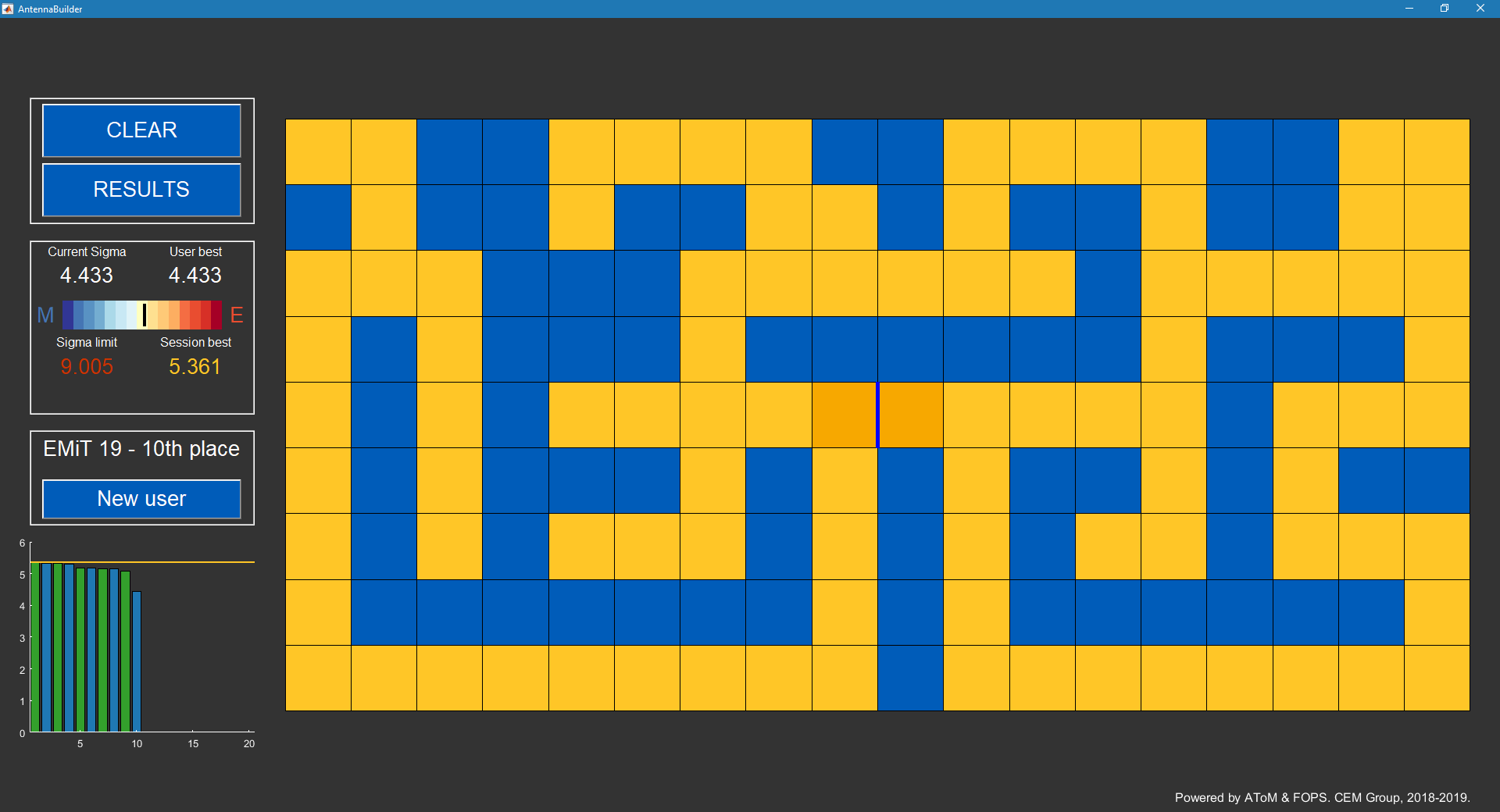

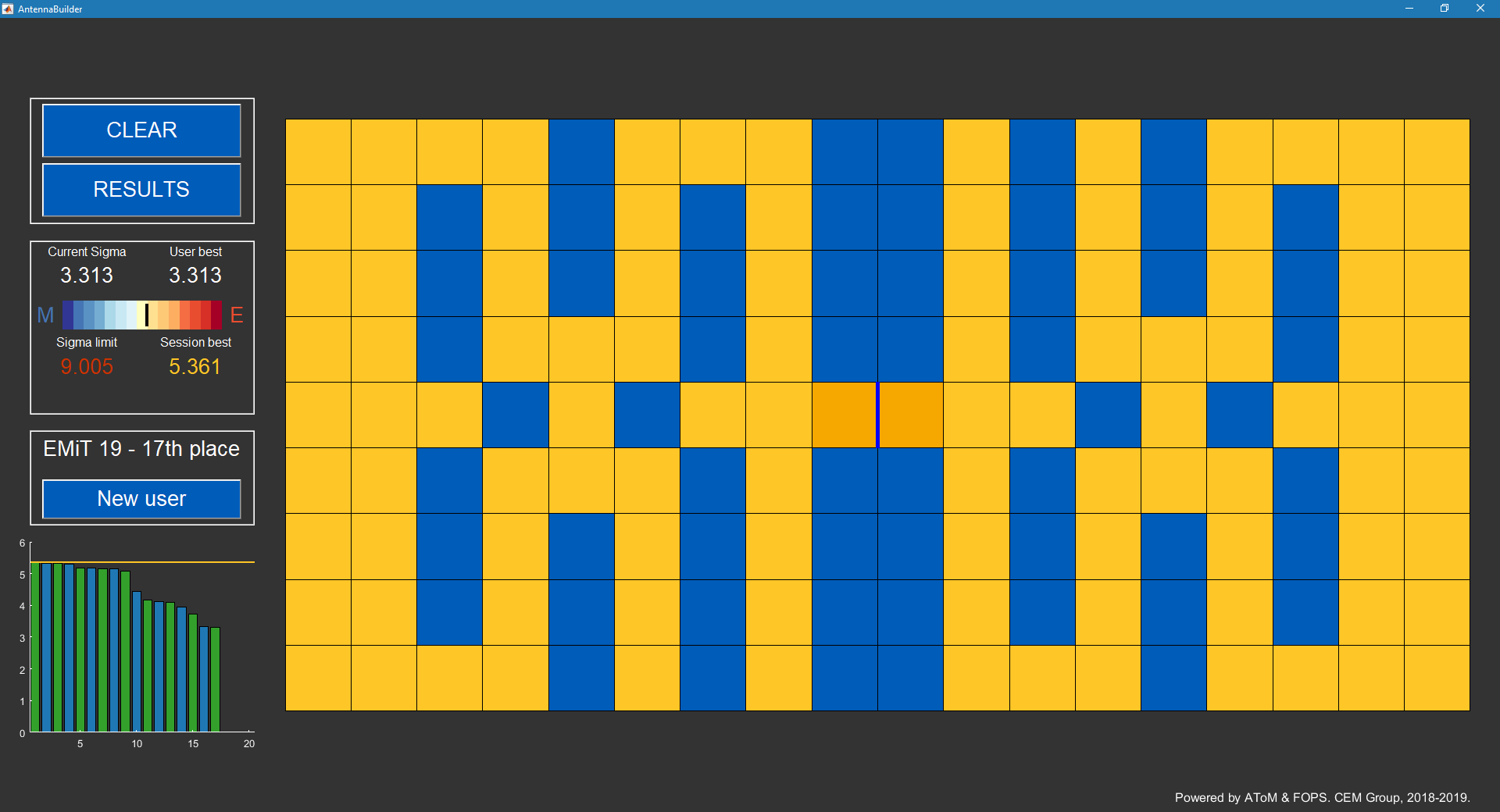

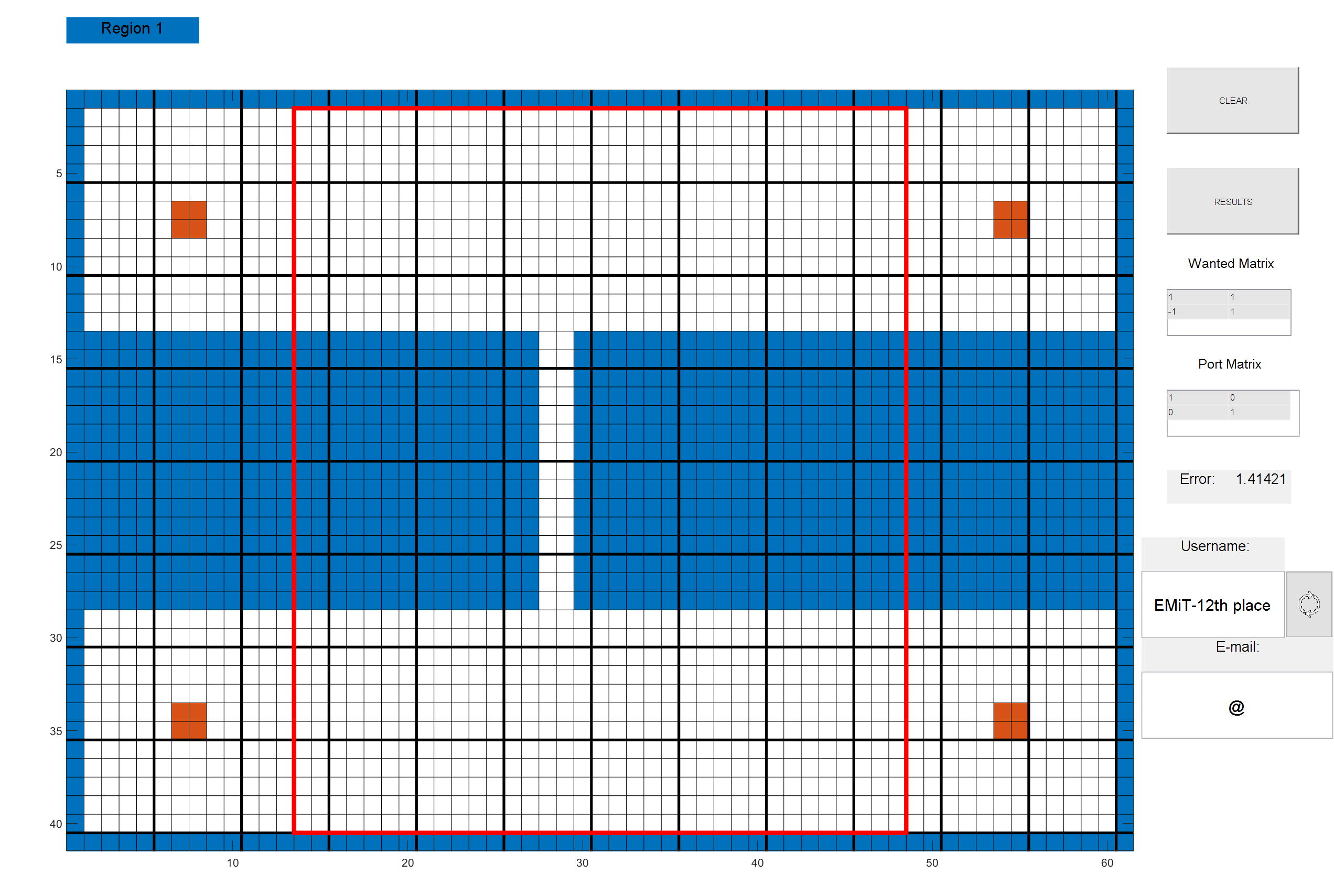

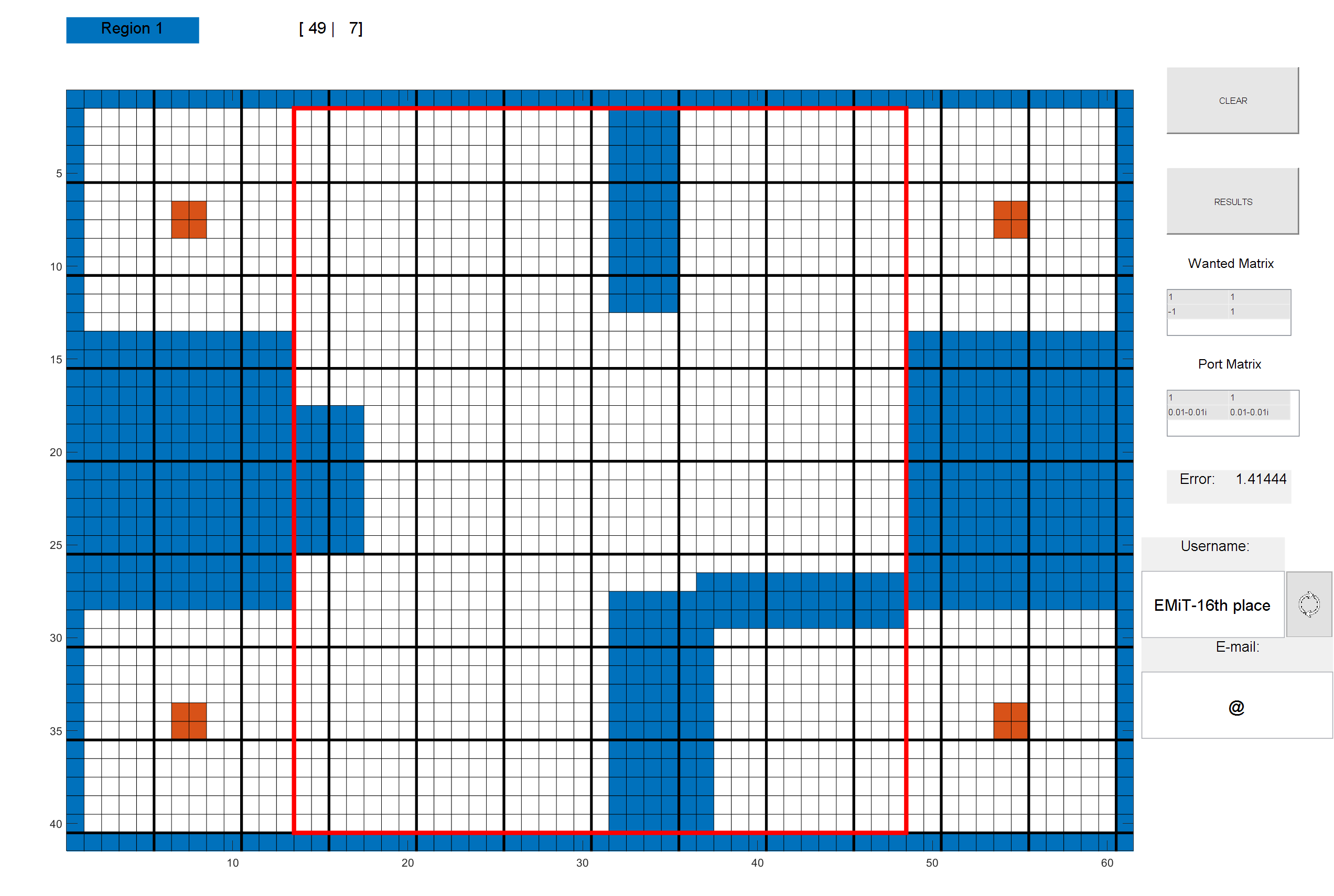

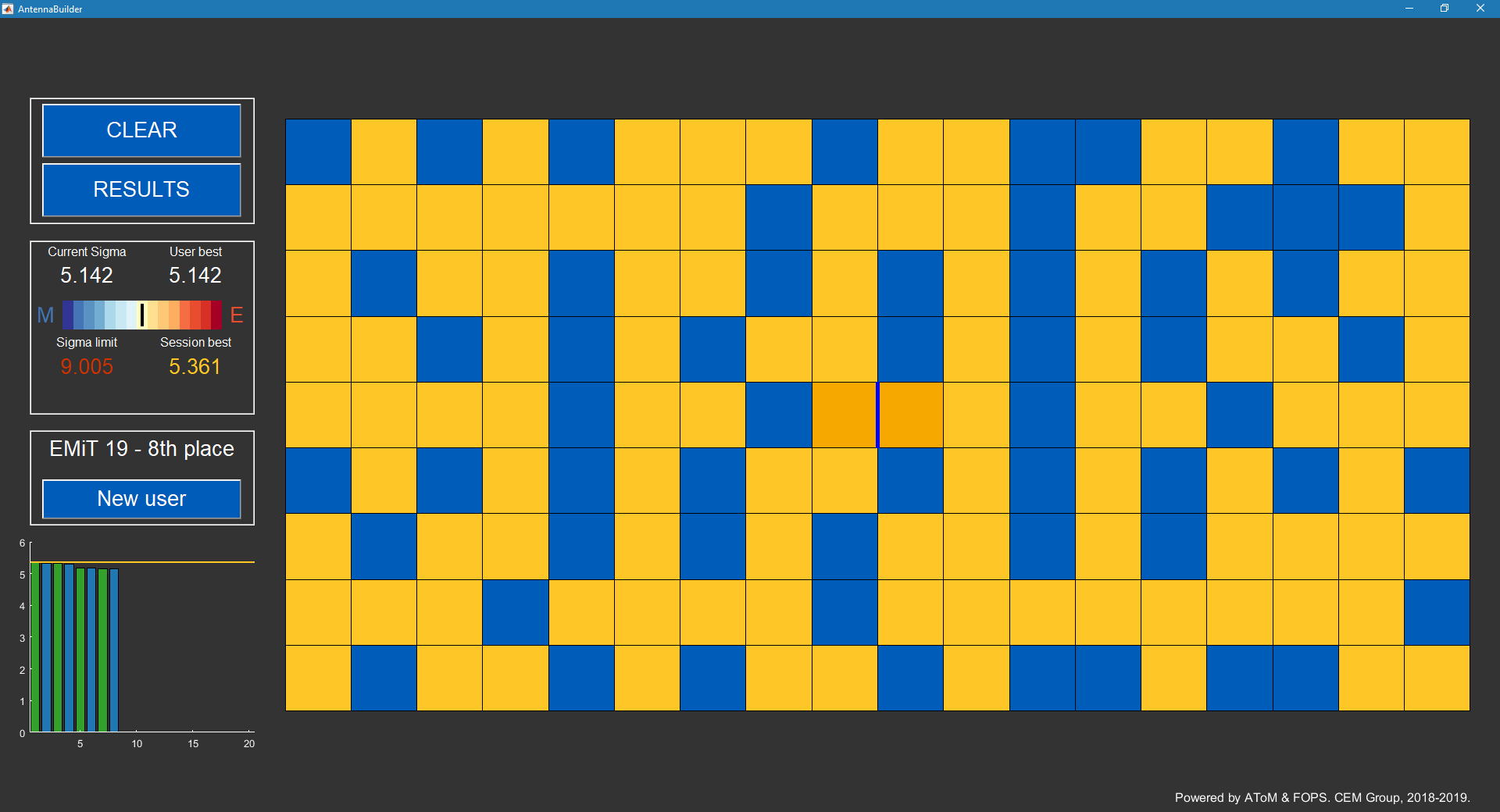

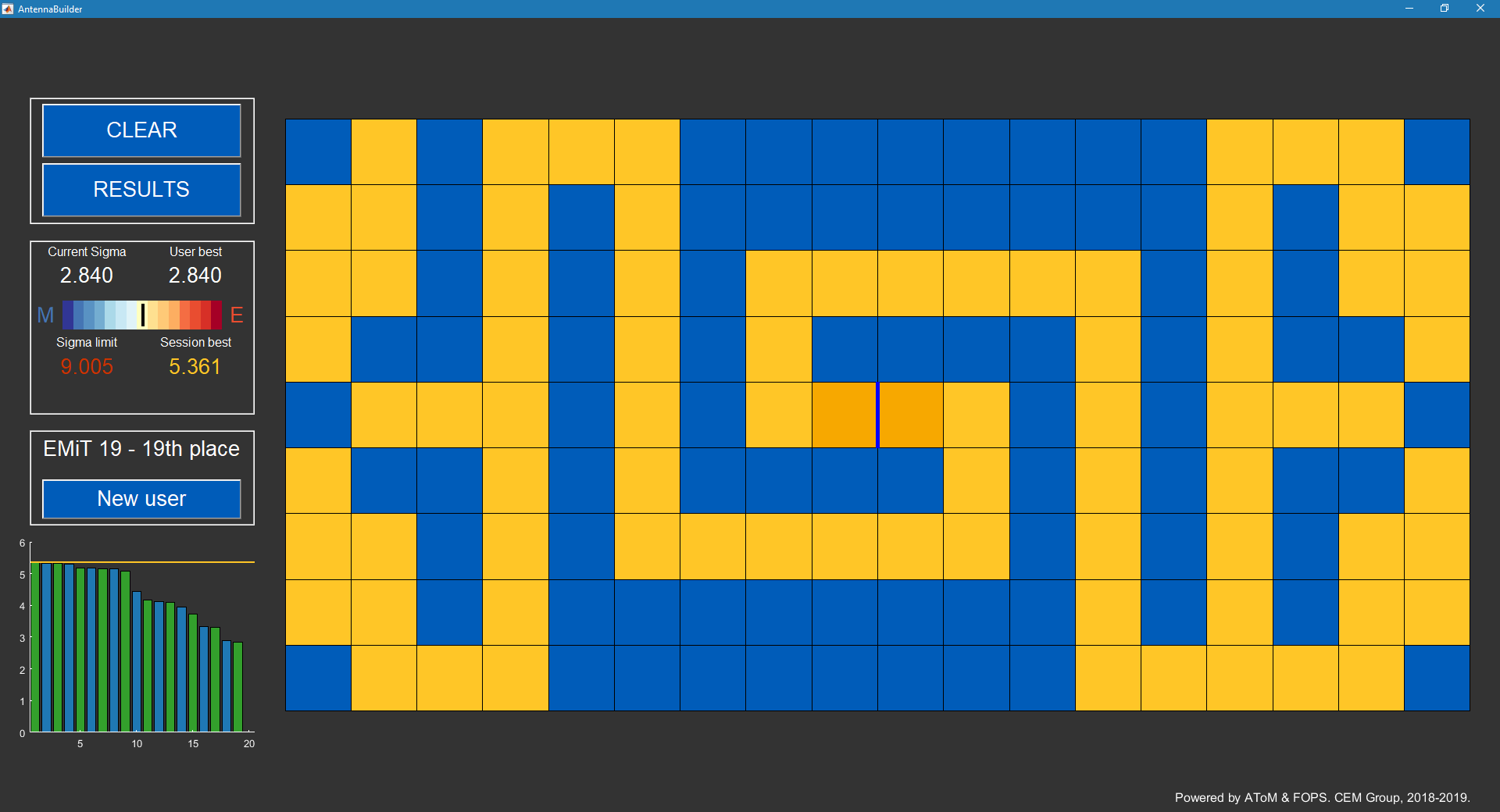

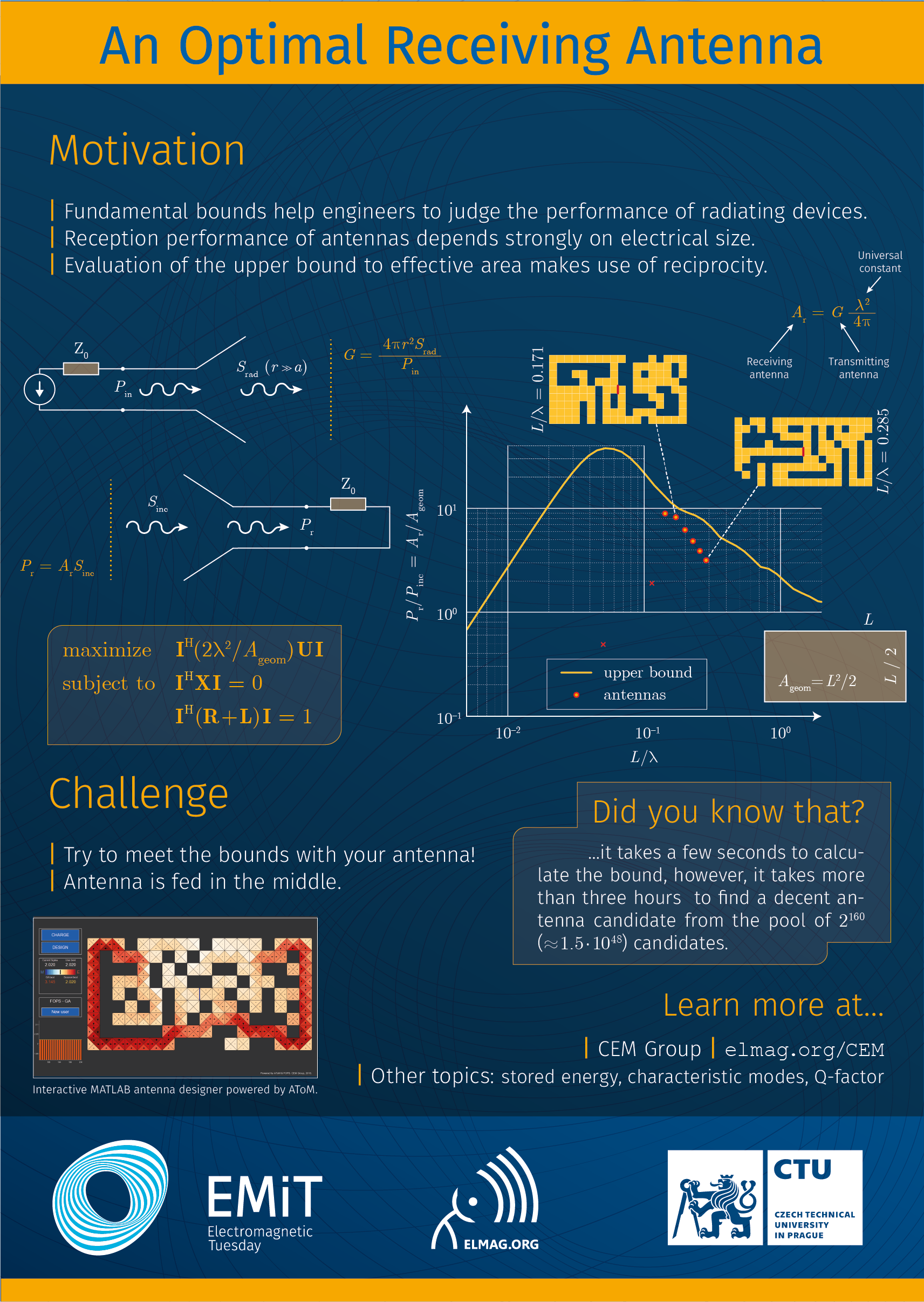

The second year of EMiT was held by the Department of Electromagnetic Field at CTU FEE Prague on February 26, 2019. The Antenna Builder was part of the interactive workshop again - this year with the task of maximizing the received power.

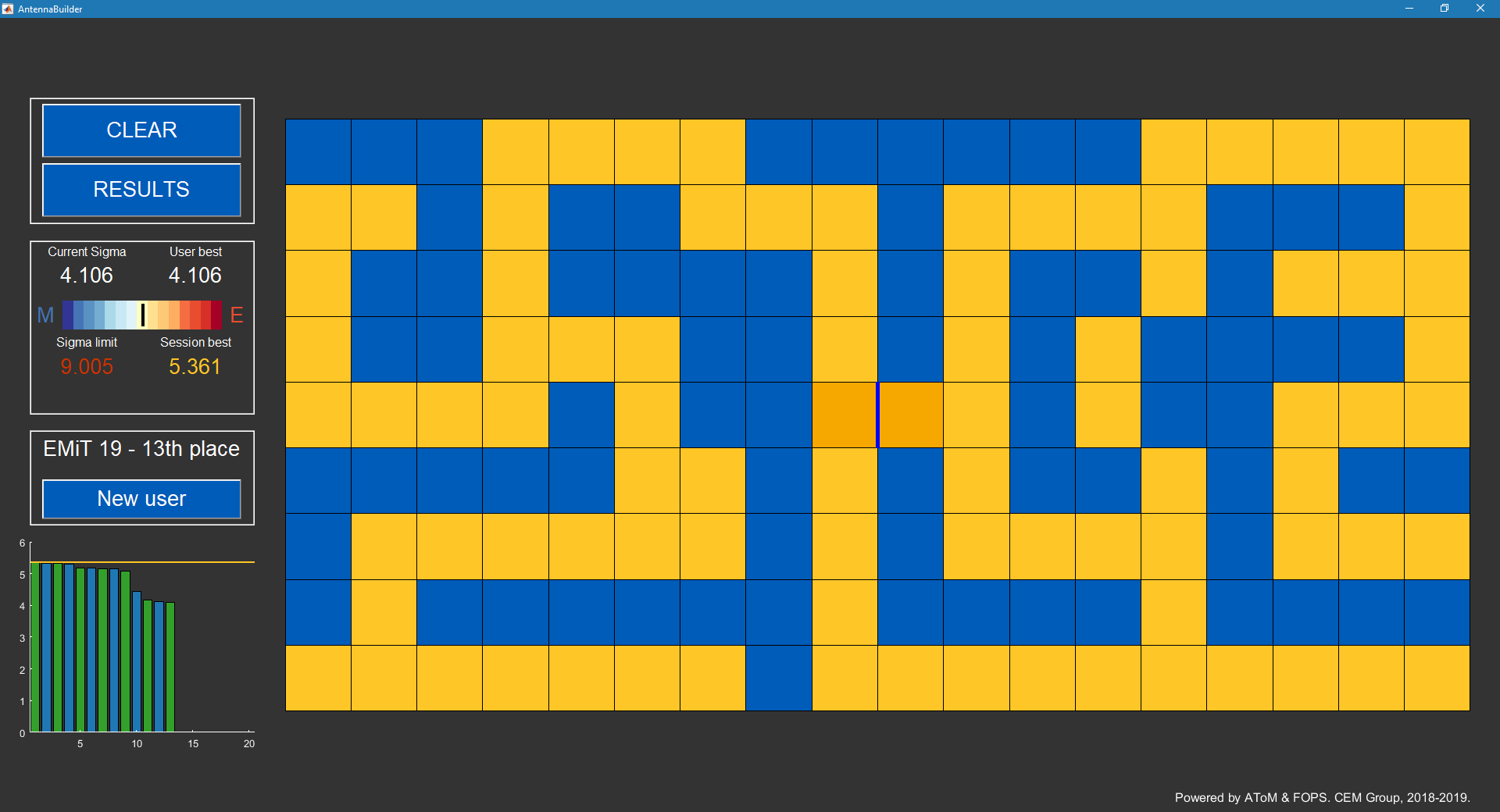

Into Antenna Builder application were registered 23 users (21 visitors and 2 authors of AB) who created 2233 antenna designs. The best solutions for each user are shown in the following table.

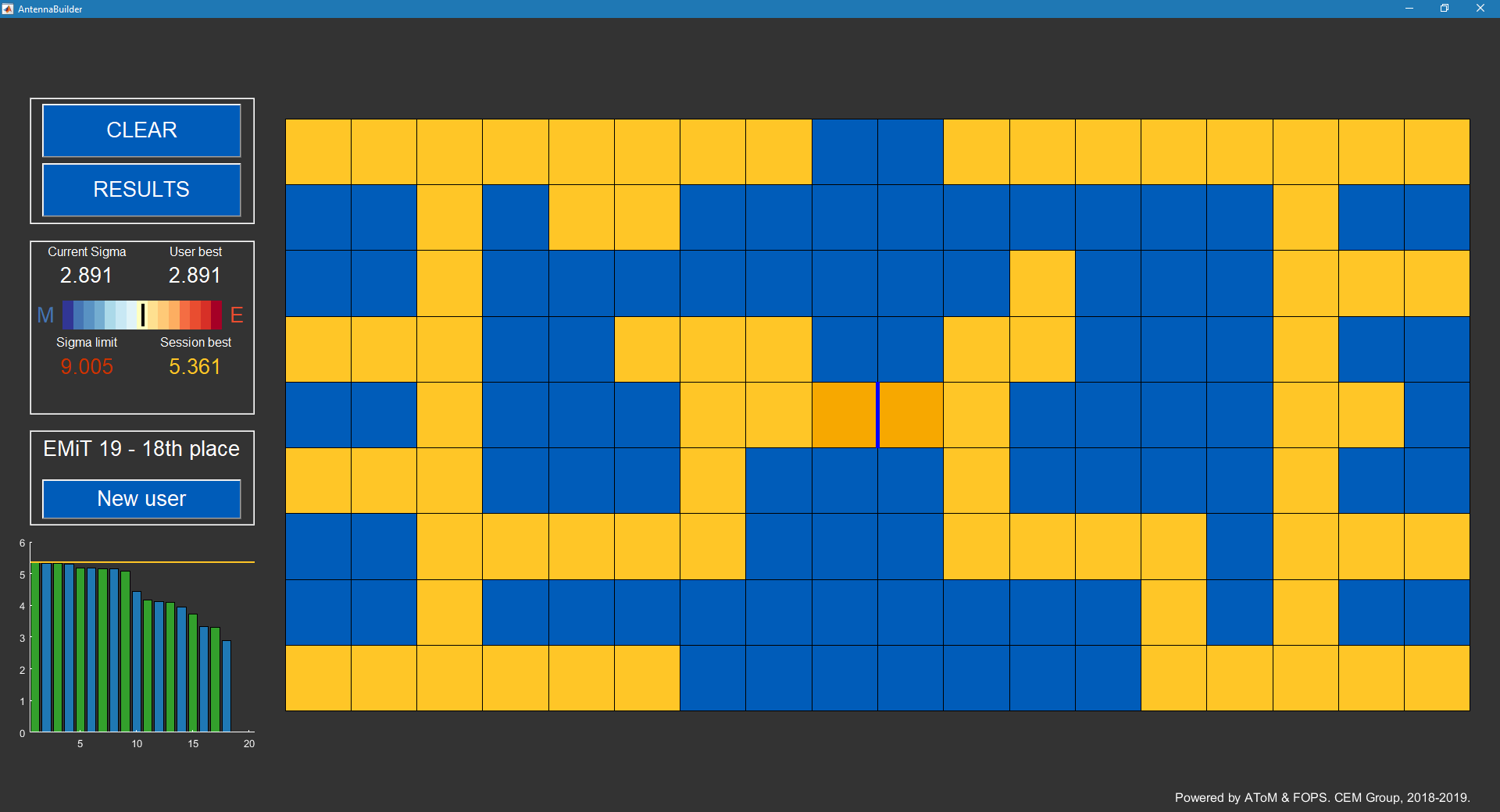

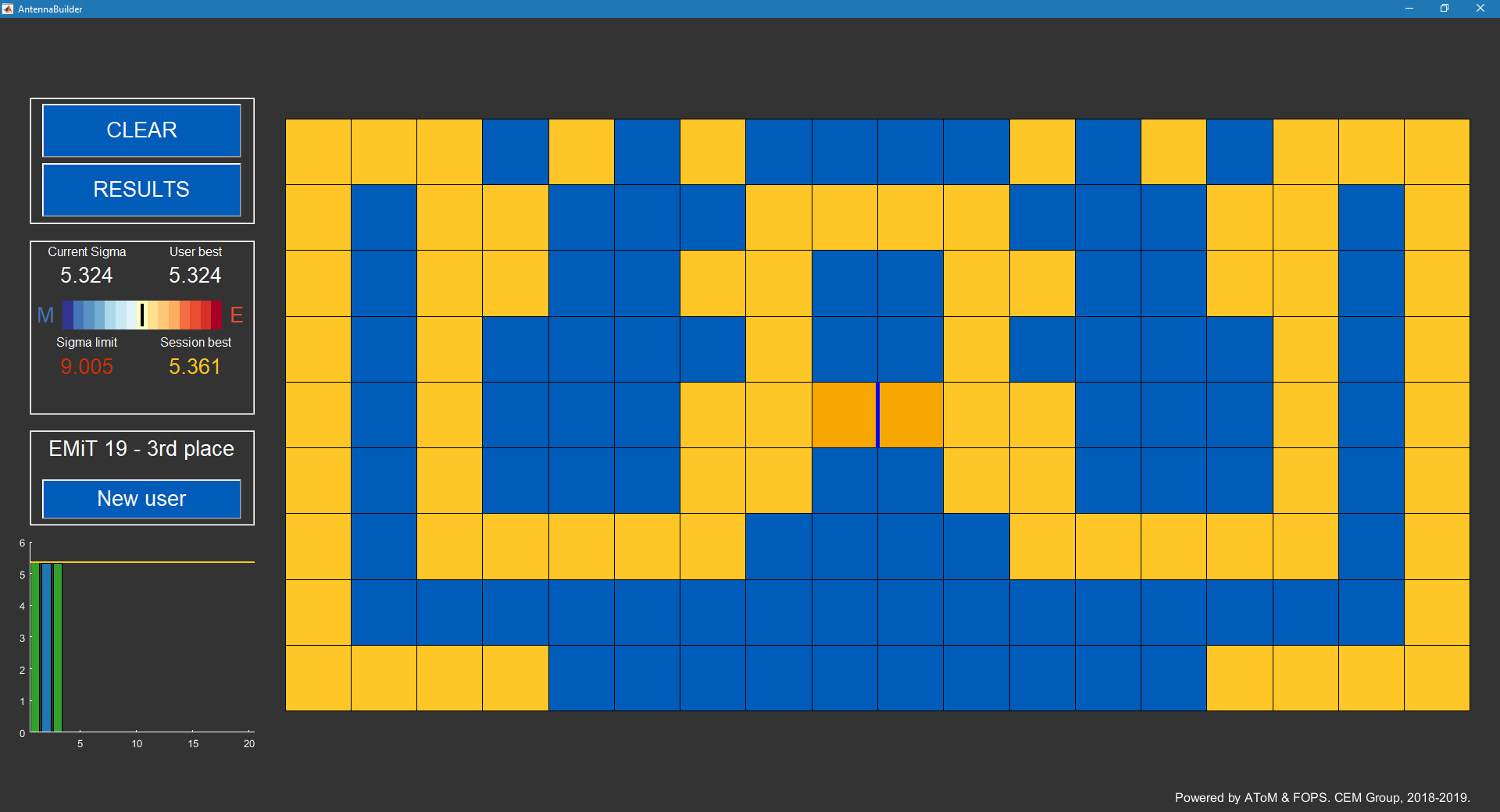

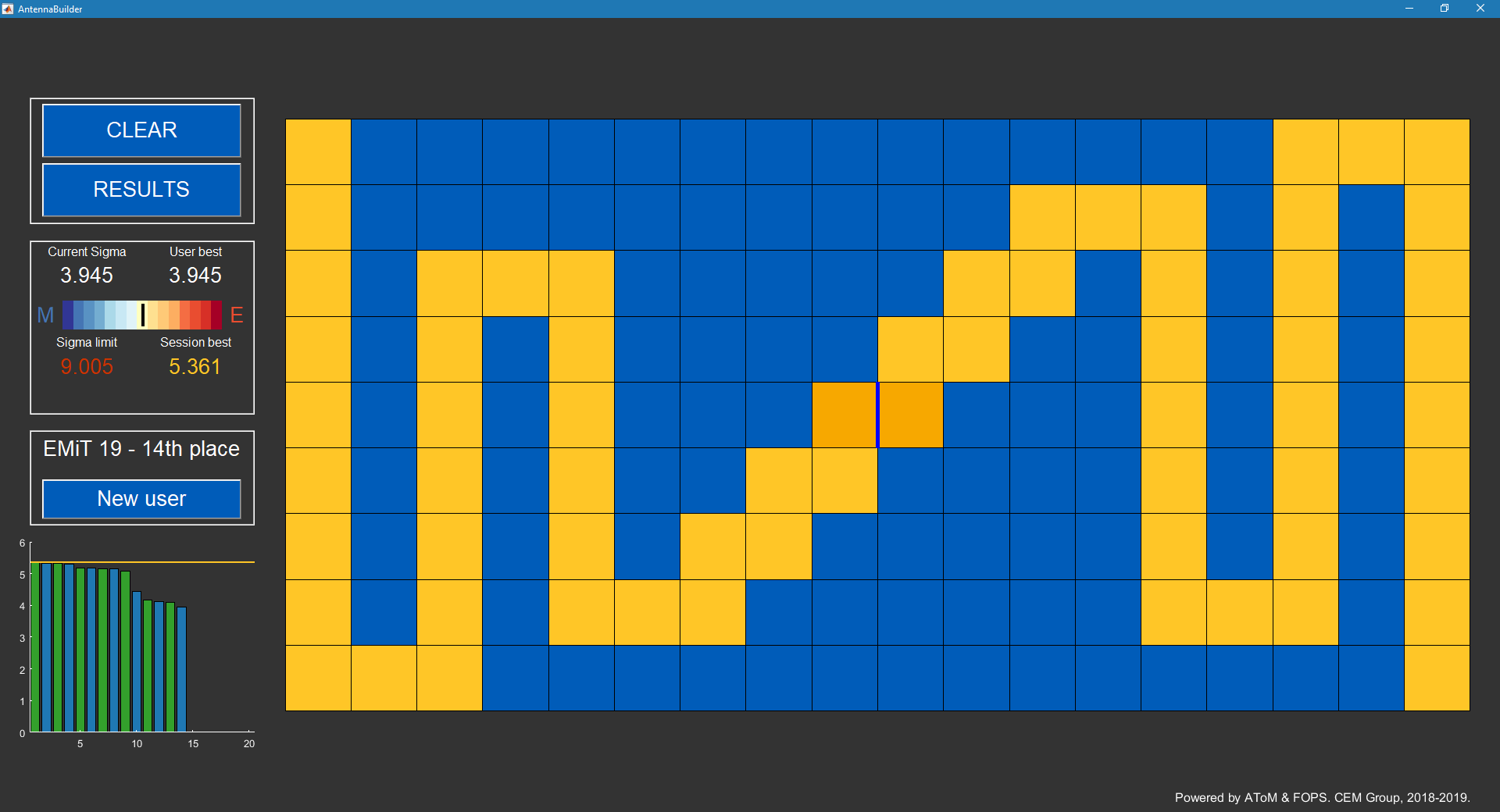

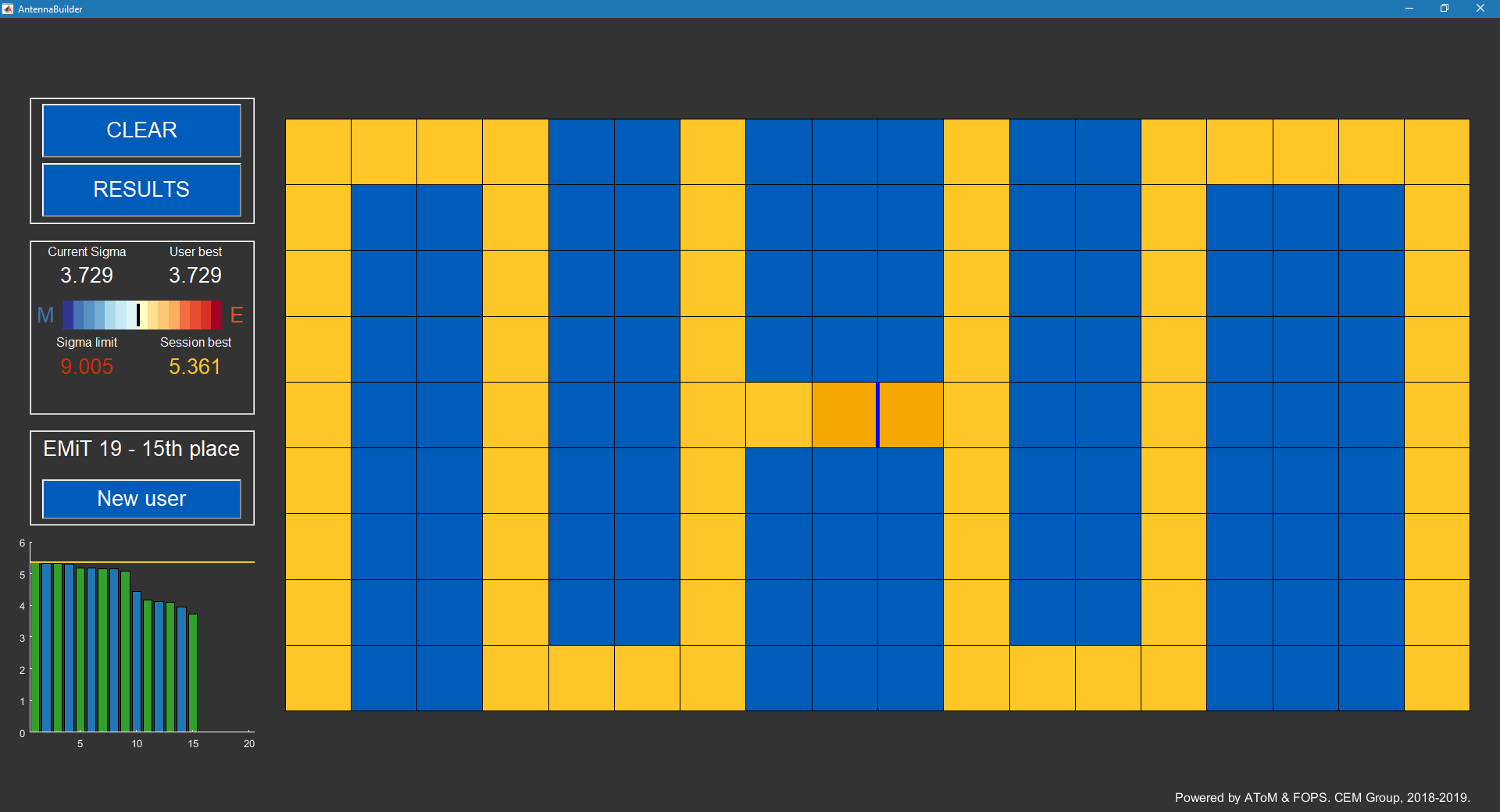

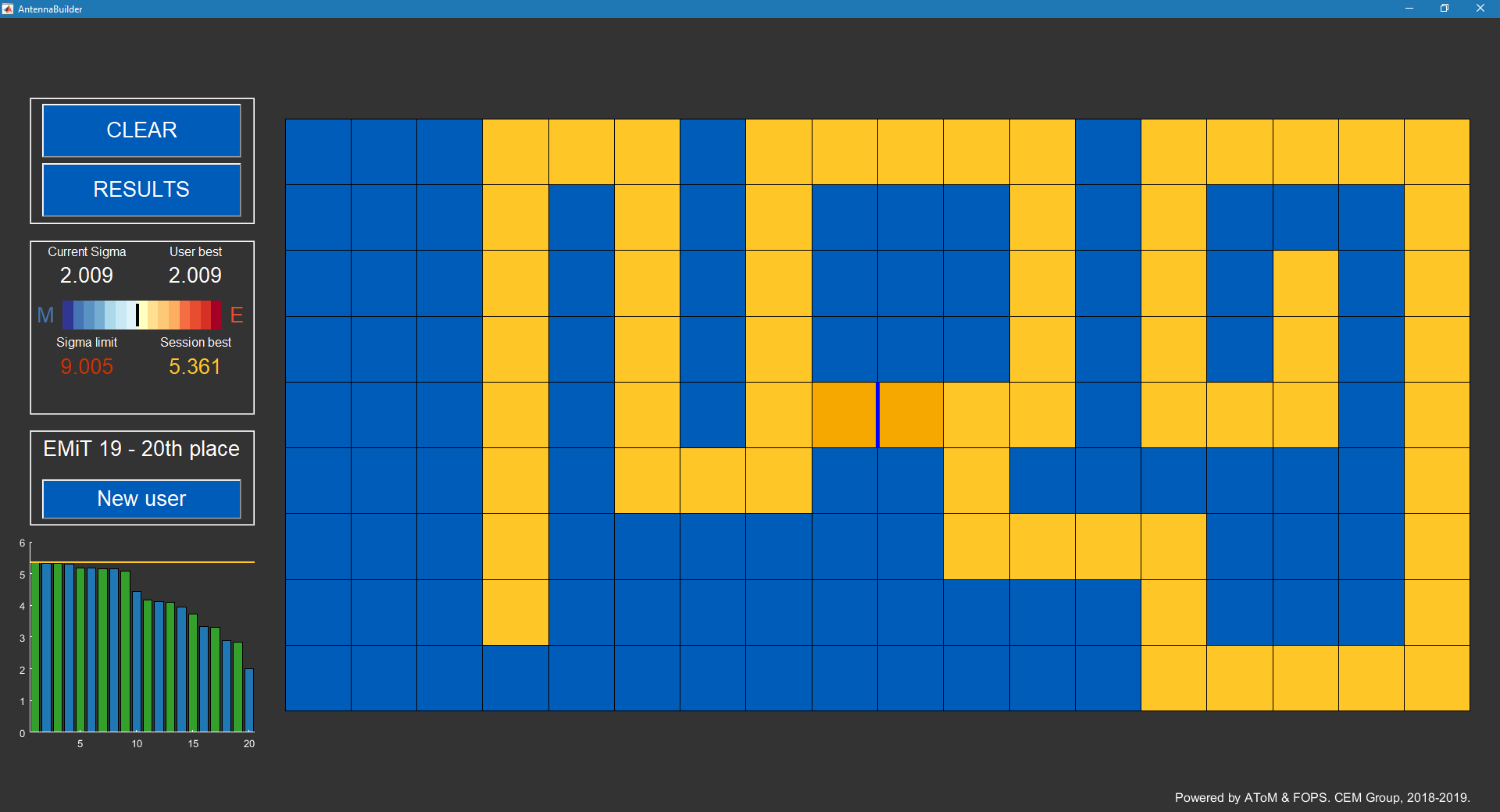

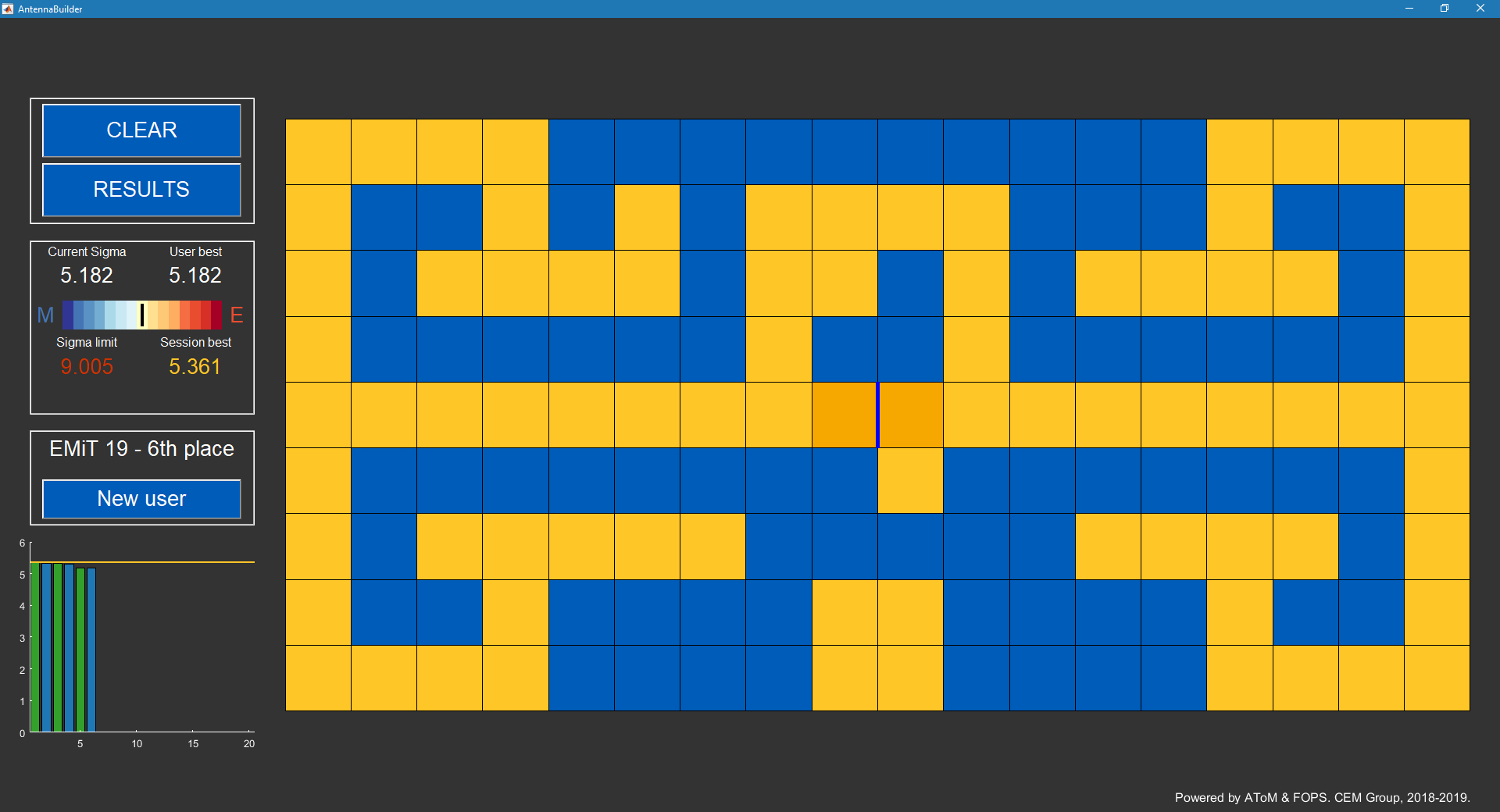

Pos.NameBest AeffAttemptsDesign

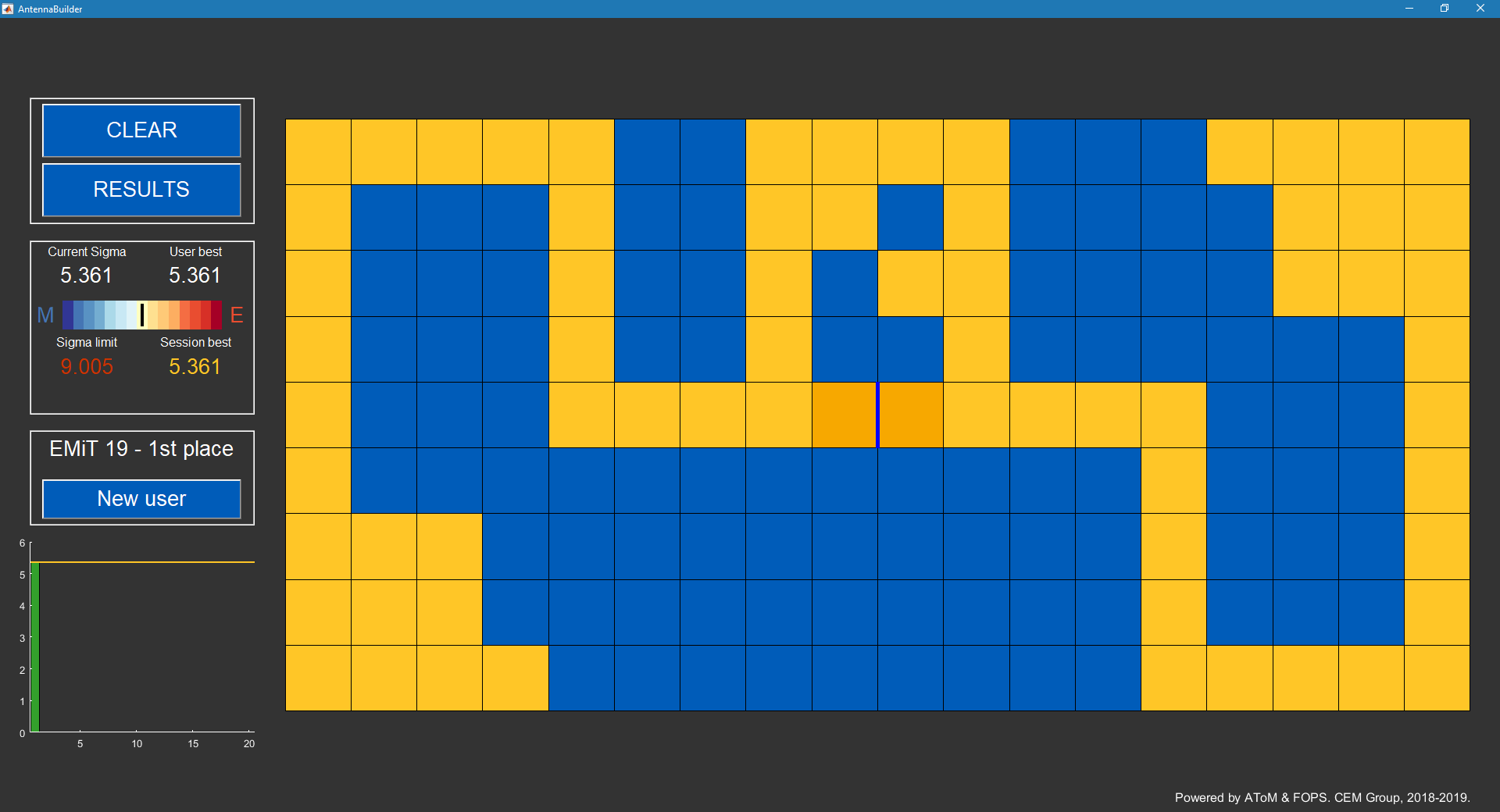

1. Losenický Vít * 5.361 51 Design
2. Losenický Vít * 5.332 61 Design
3. Kouba Tomáš 5.324 330 Design

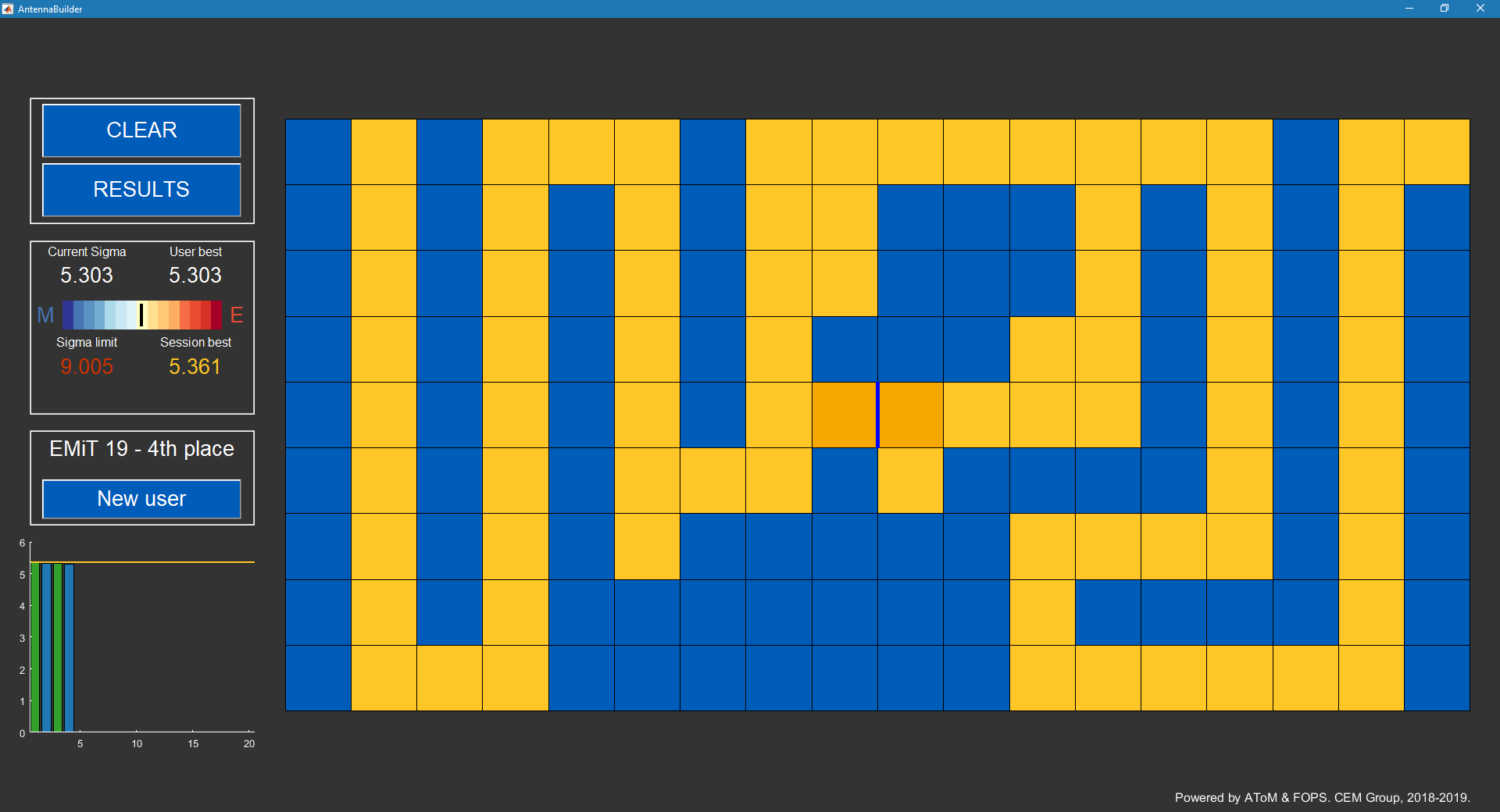

4. Michal Mašek * 5.303 60 Design

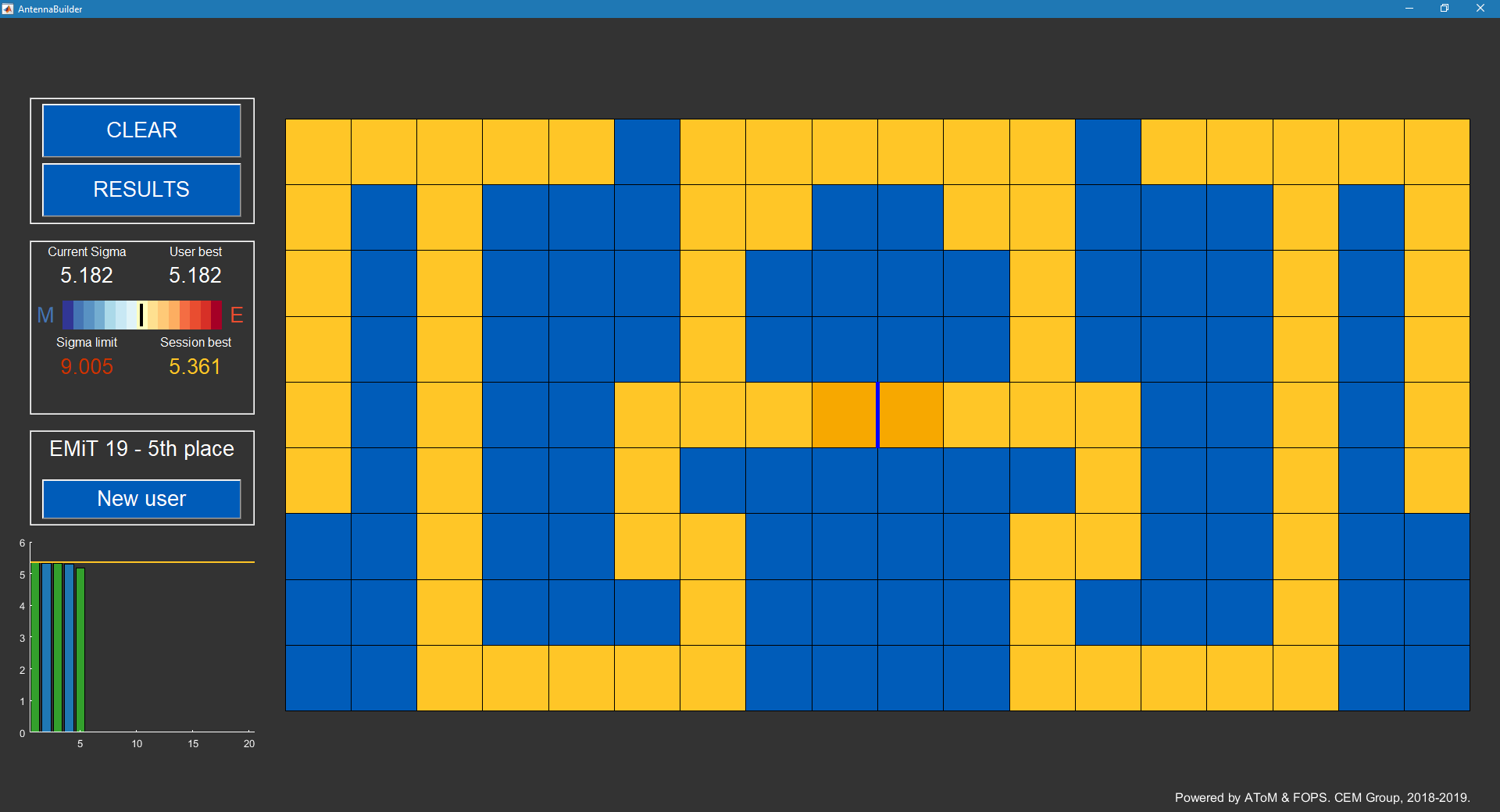

5. Clever Dog 5.182 120 Design
6. Korčák Václav 5.182 266 Design

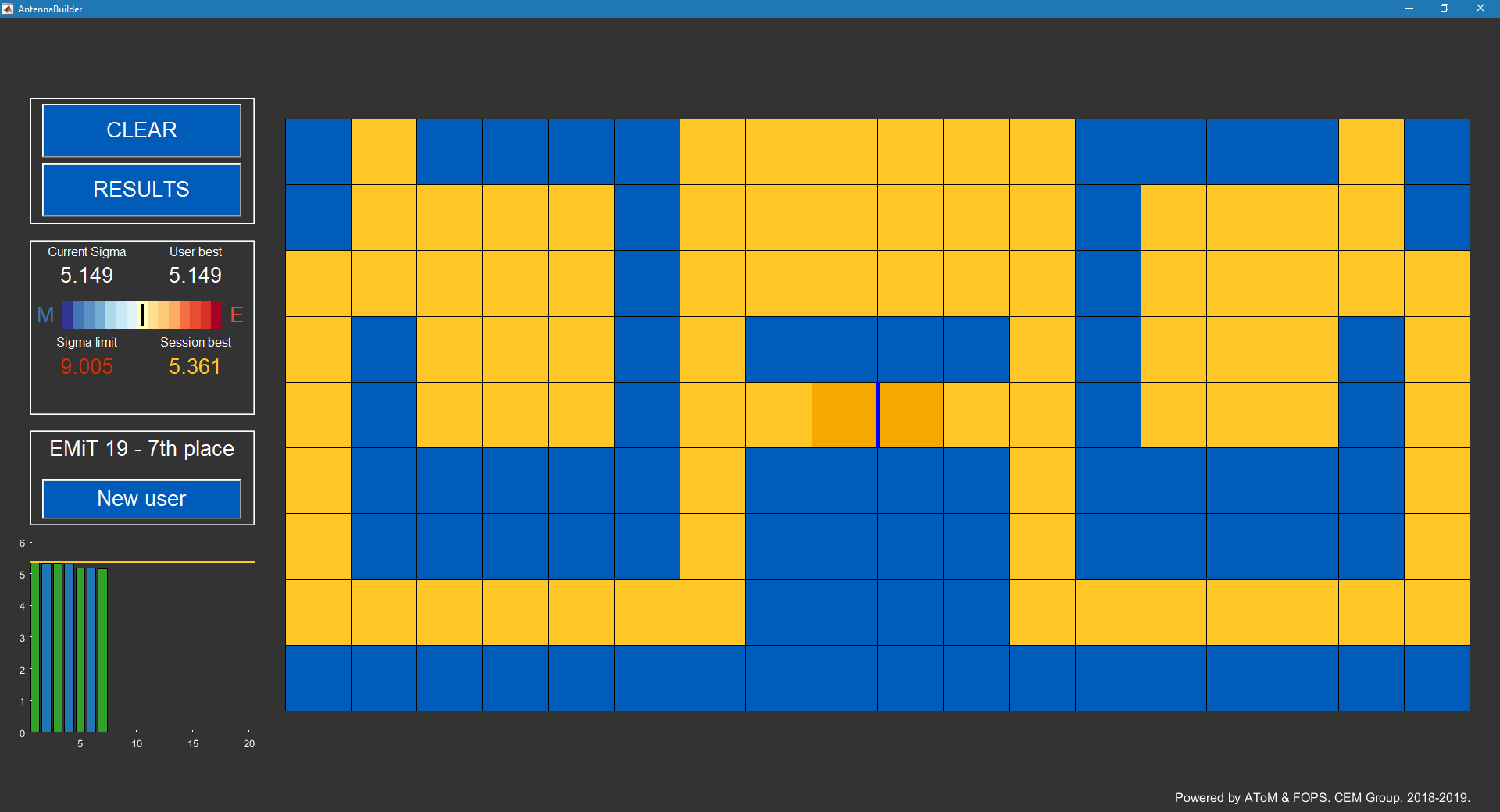

7. Šimák Martin 5.149 185 Design
8. Tuček Jonáš 5.142 251 Design

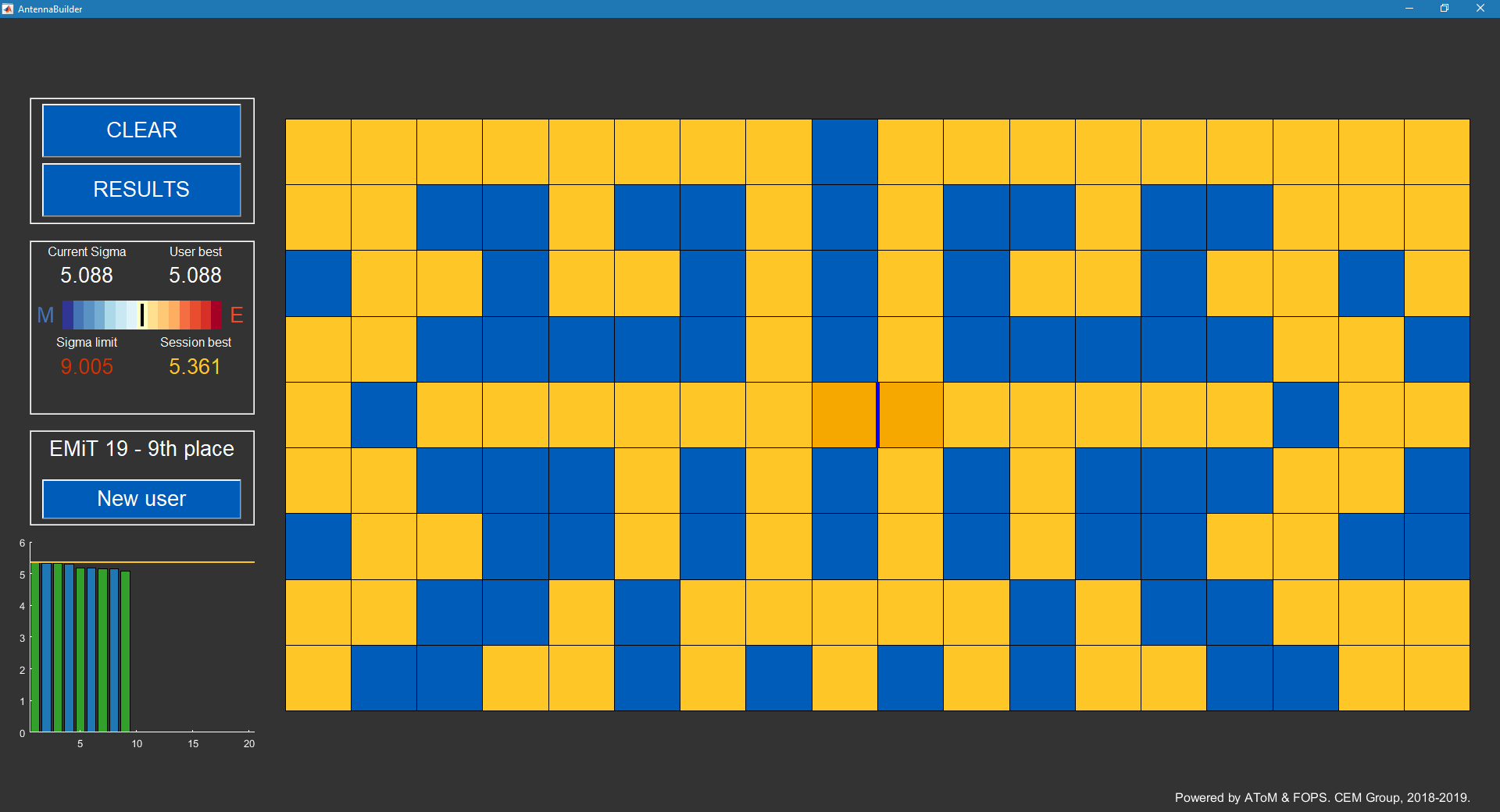

9. Eöllösová Klára 5.088 157 Design
10. Kovář Mirek 4.433 109 Design

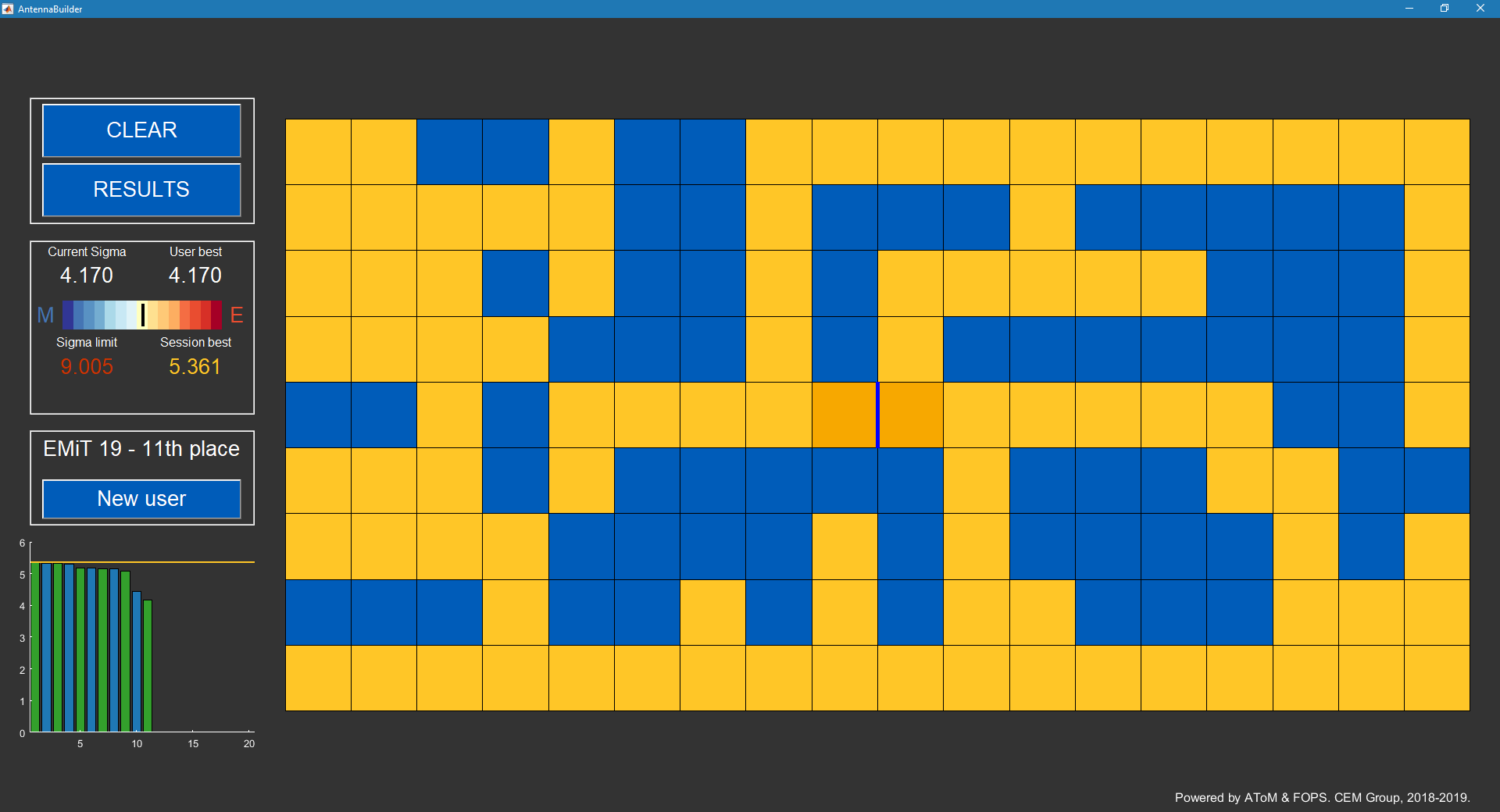

11. Knotek Ladislav 4.170 77 Design

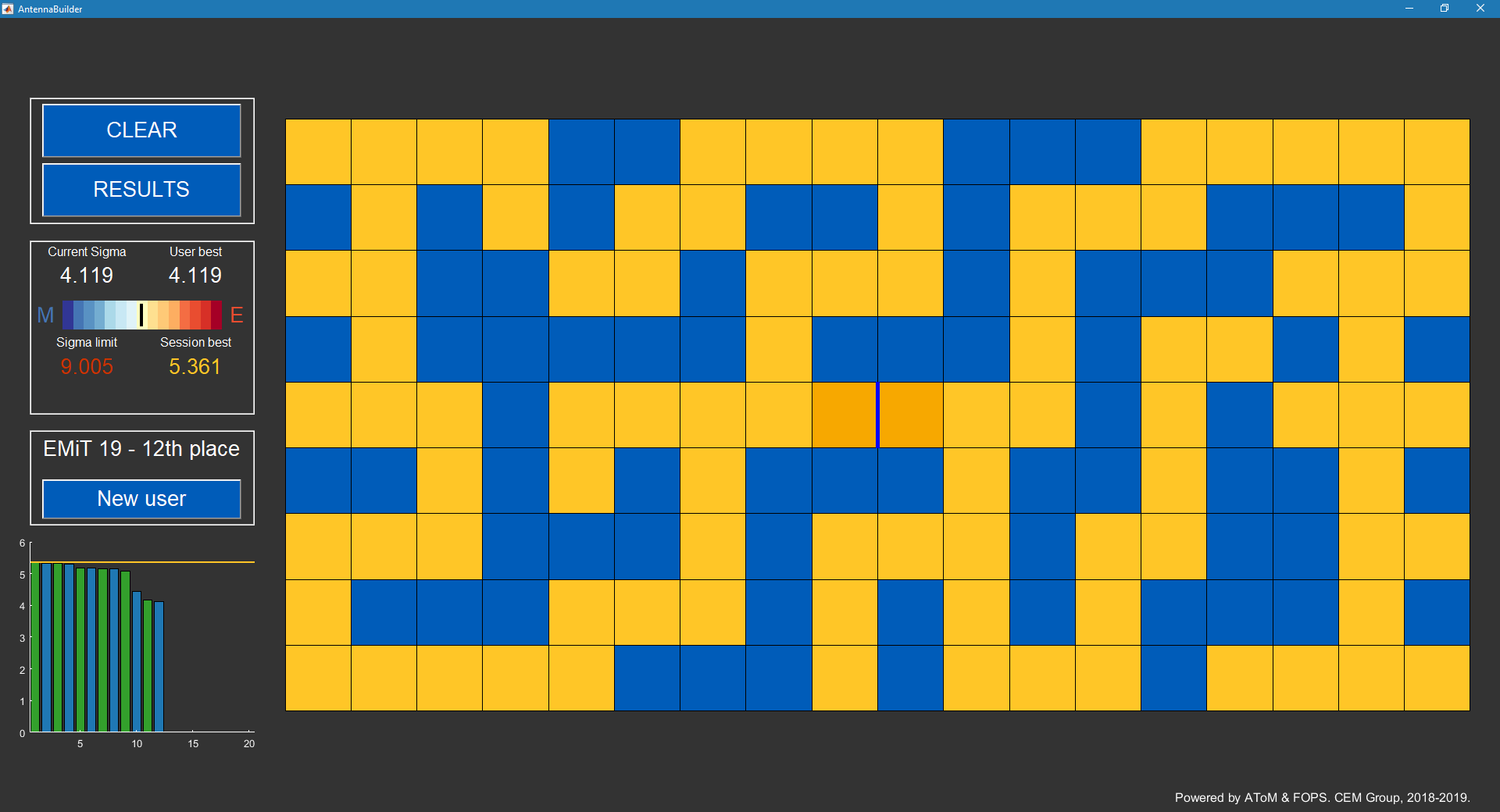

12. Tuček Jonáš 4.120 220 Design
13. Lonský Tomáš 4.106 36 Design
14. Liška Jakub 3.945 47 Design
15. Pavel 3.729 28 Design

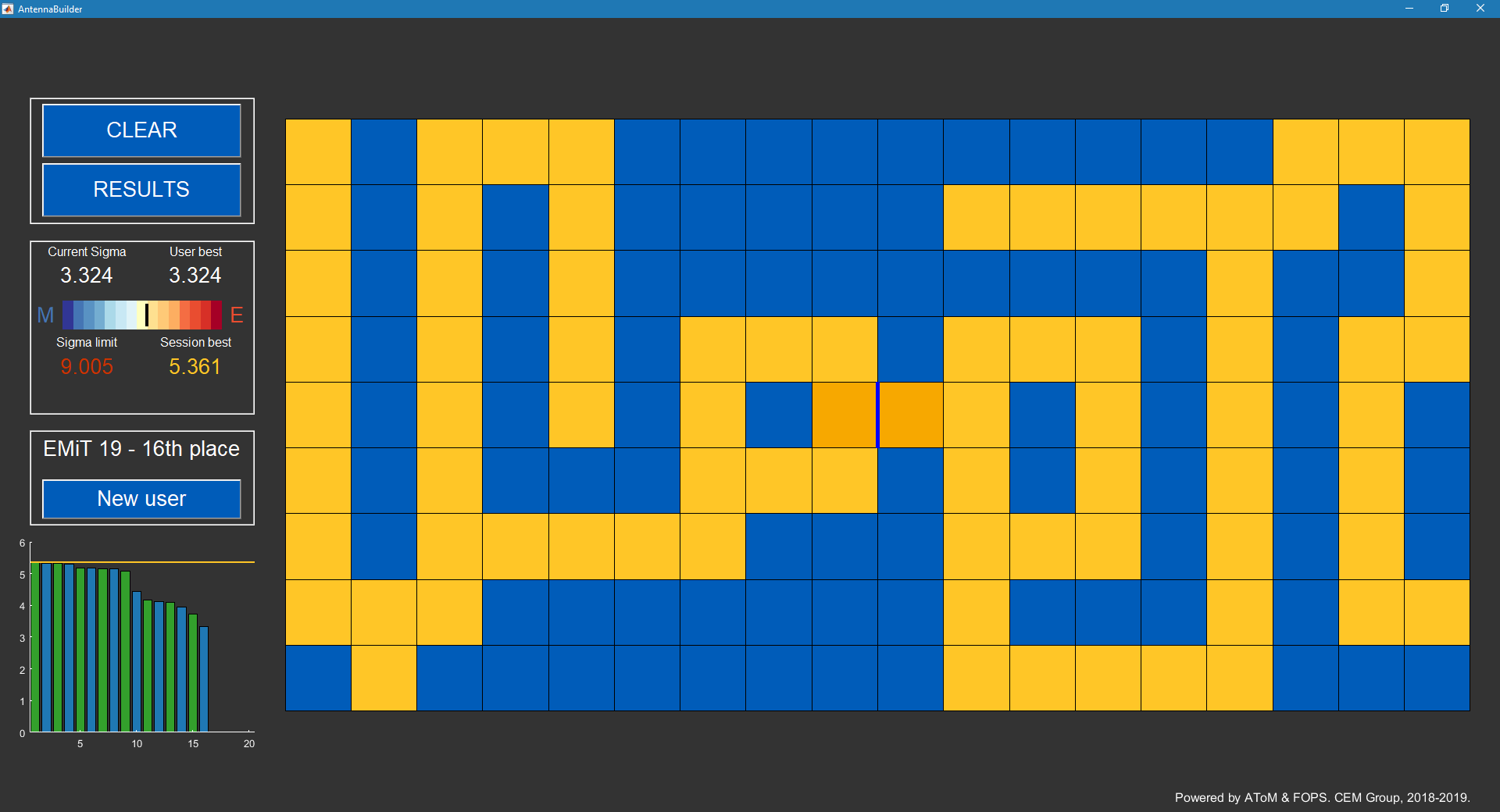

16. Kučera Karel 3.324 73 Design
17. Kuba 3.313 45 Design
18. Hazdra Pavel 2.891 58 Design
19. Rakul Oleksandr 2.840 21 Design
20. Clever hedgehog 2.009 5 Design
21. Cimorandský Jan 1.216 30 Design

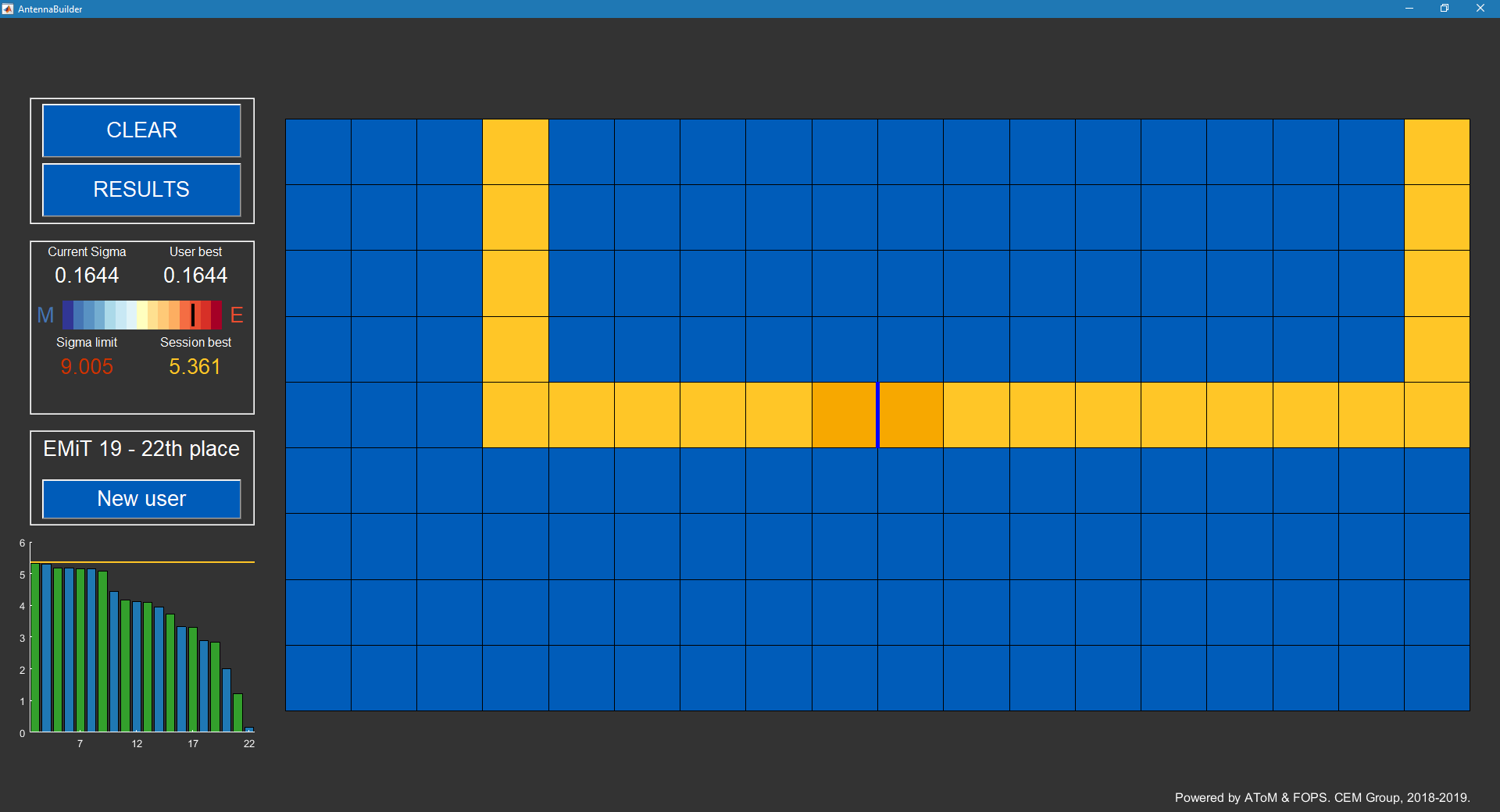

22. Silly Lizard 0.164 2 Design
23. Lazy Mammoth 0.007 1 Design

EMiT 2018

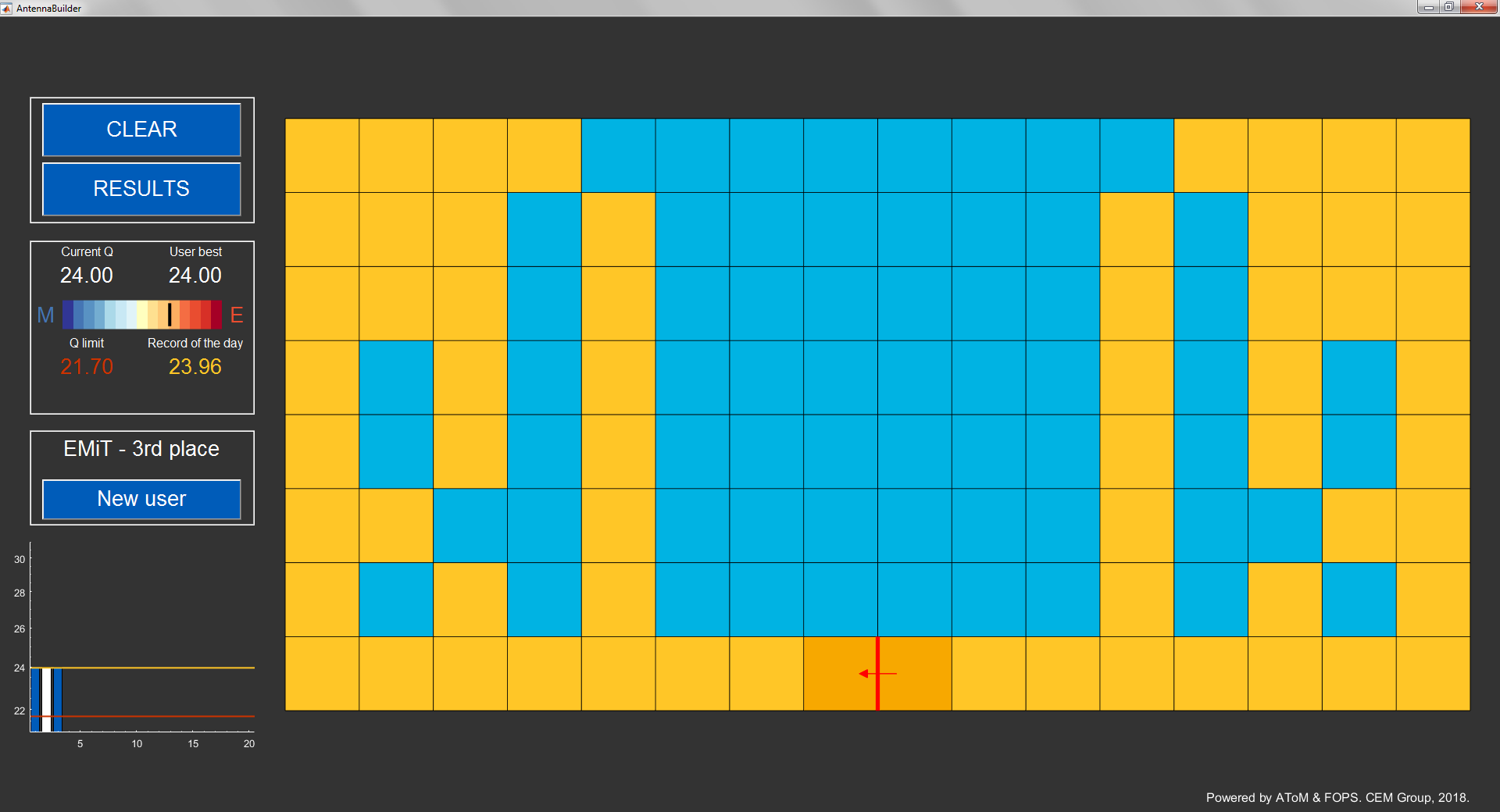

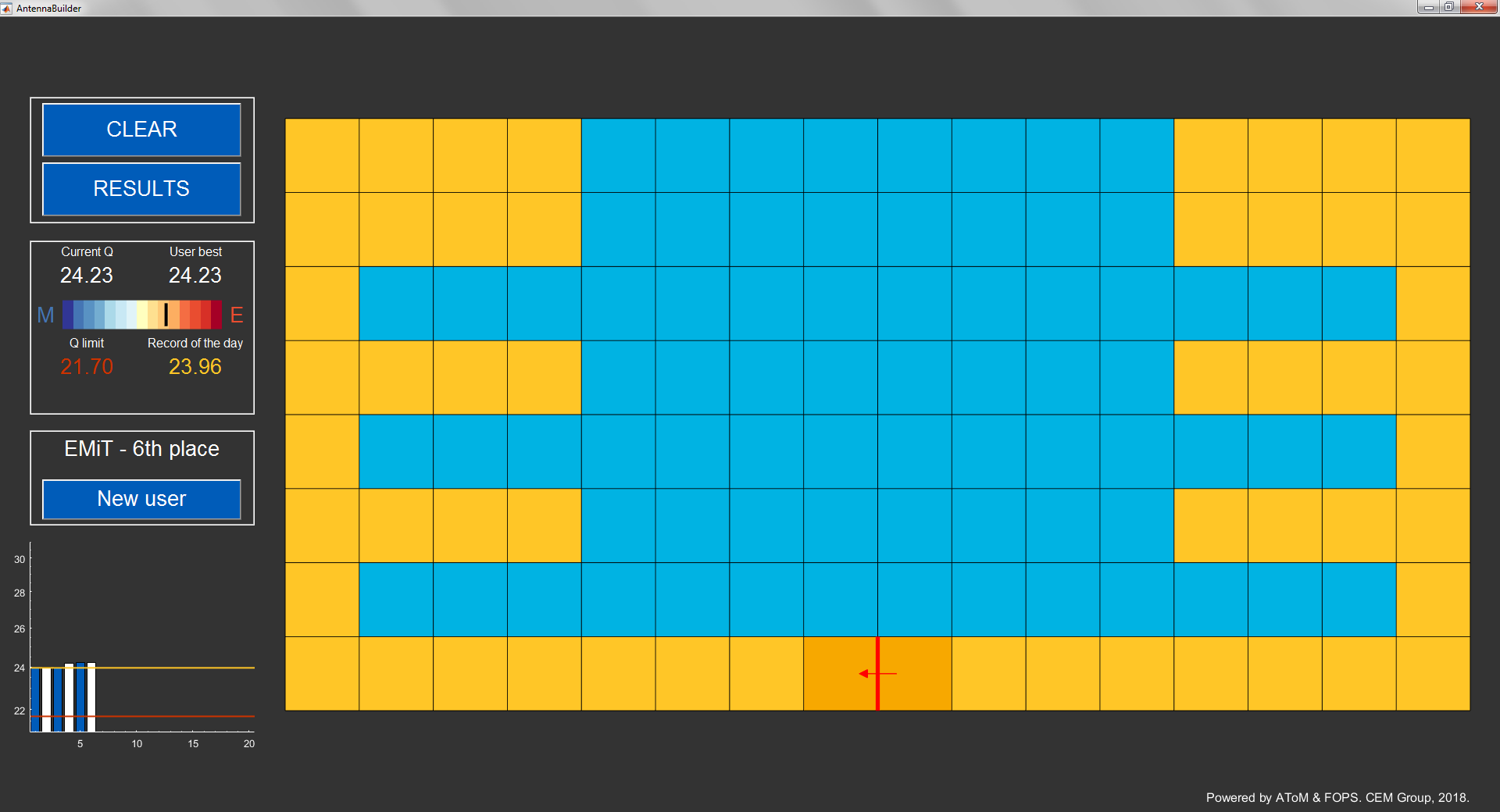

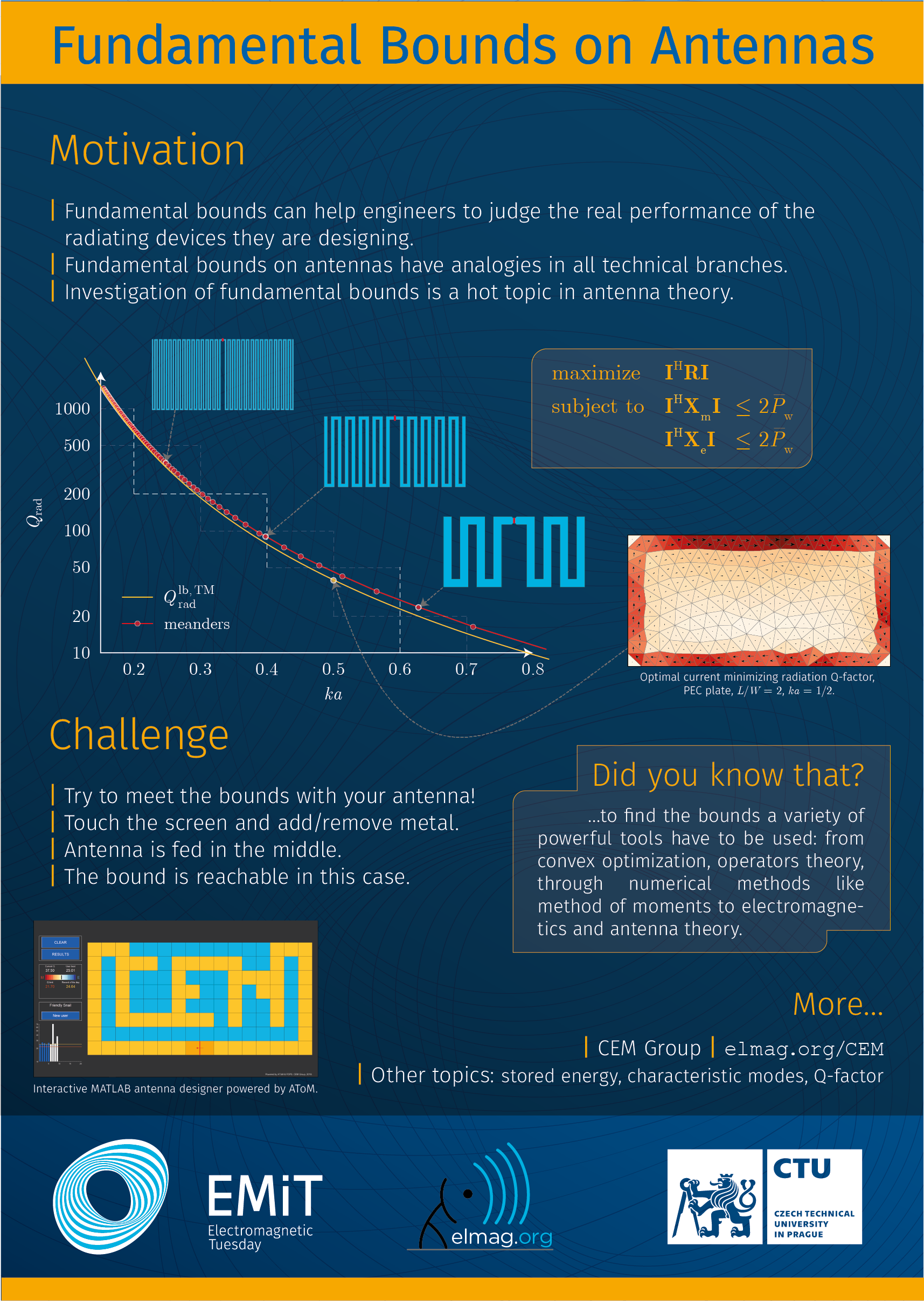

On February 27, 2018, the Department of Electromagnetic Field at CTU FEE Prague organized a student workshop entitled Electromagnetic Tuesday (EMiT), where students could see the actual research topic in applied electromagnetism. The Antenna Builder was one of the interactive shows.

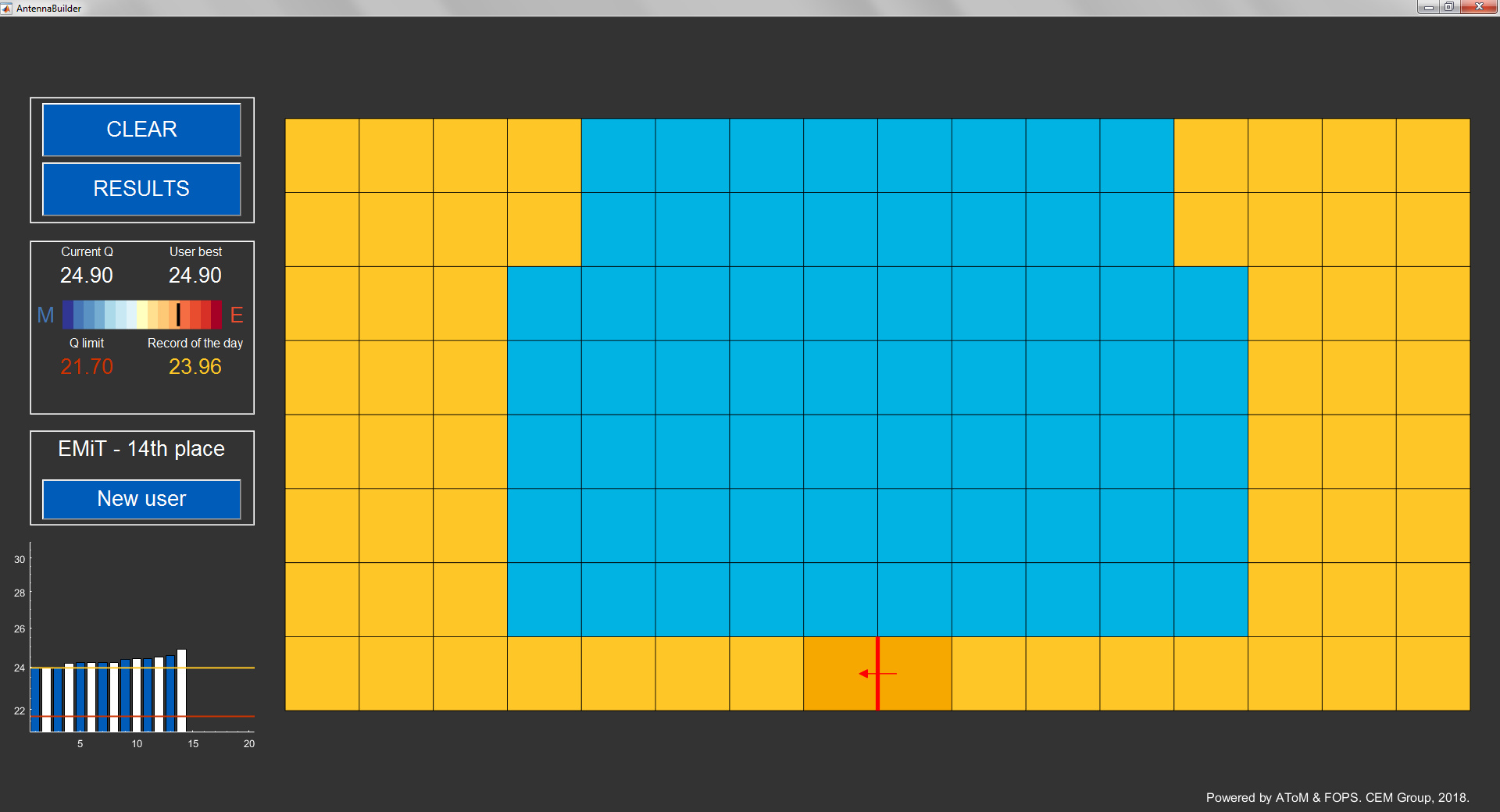

At the end of the workshop, Antenna Builder application registered 20 users and 1222 antenna designs. Best solutions for each user are shown in the following table. Three best designs have been awarded a prize.

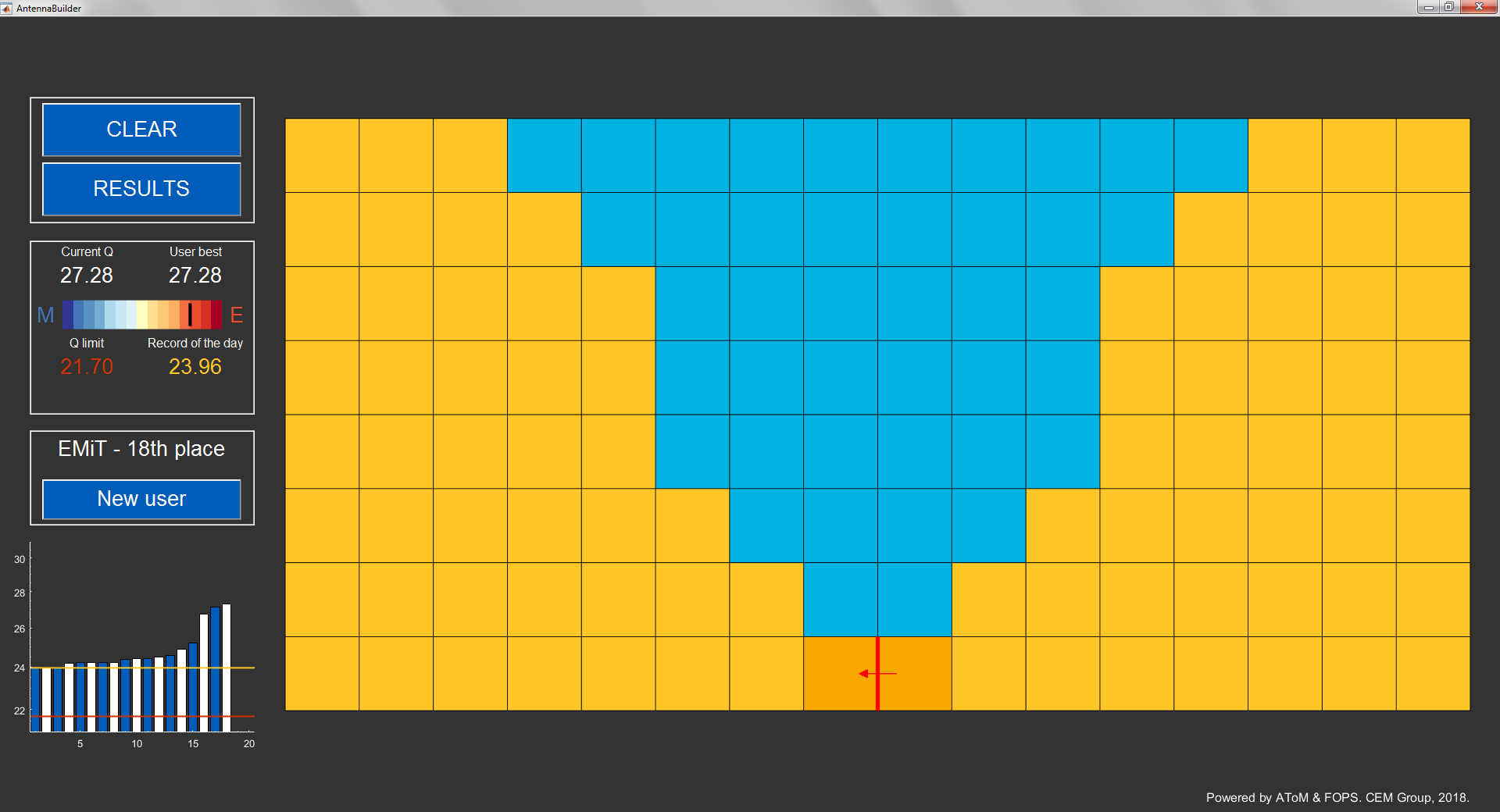

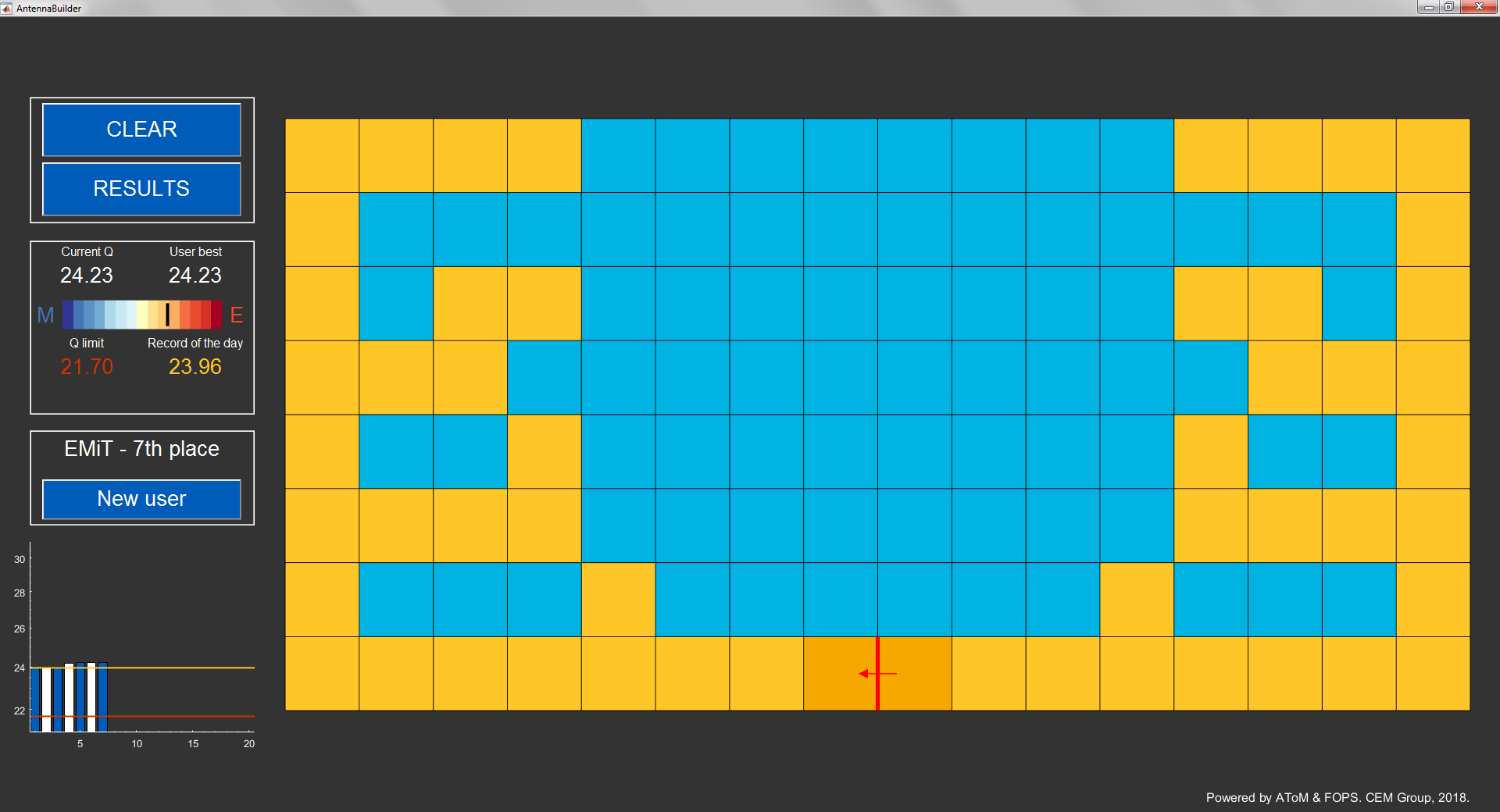

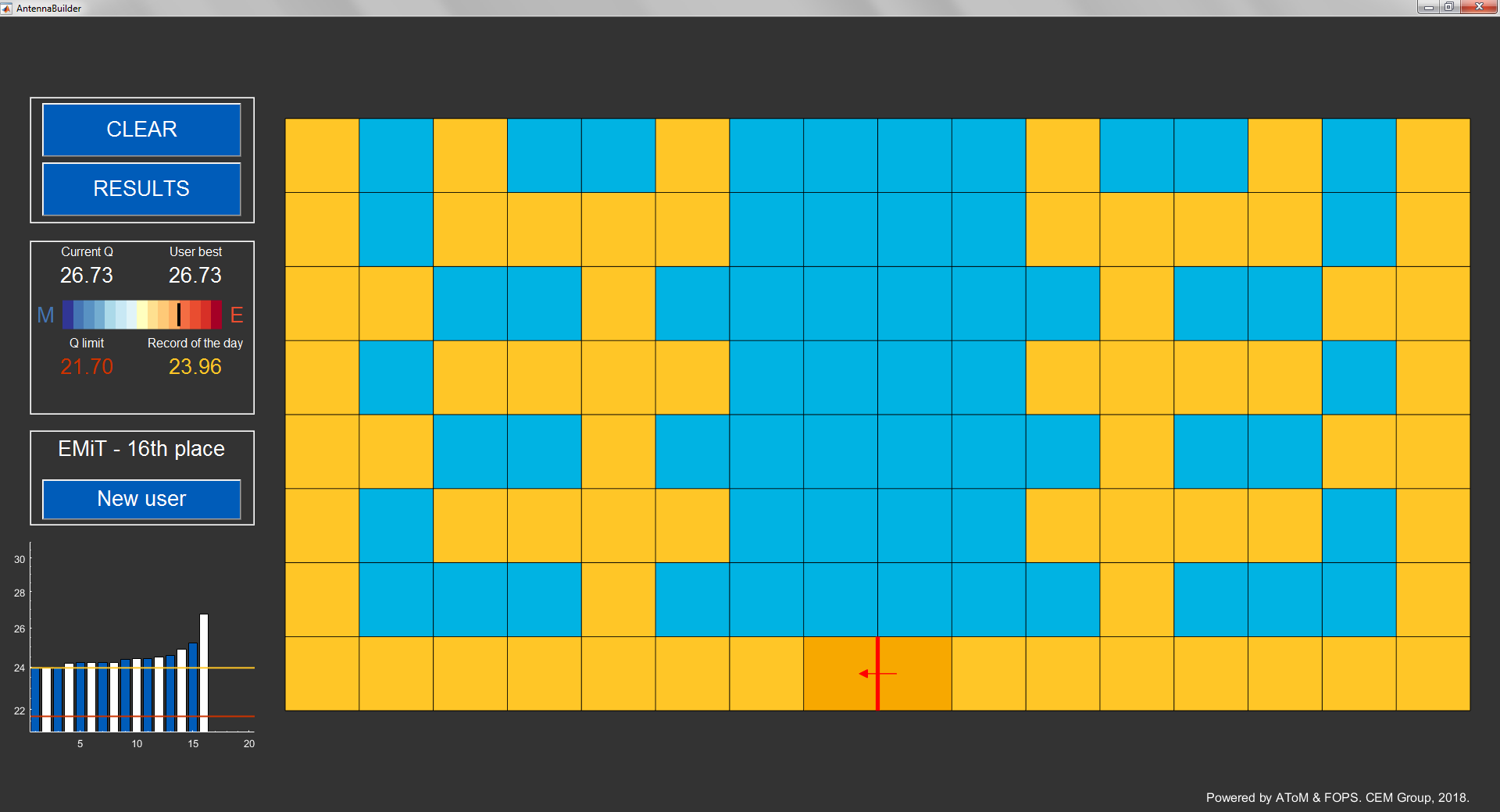

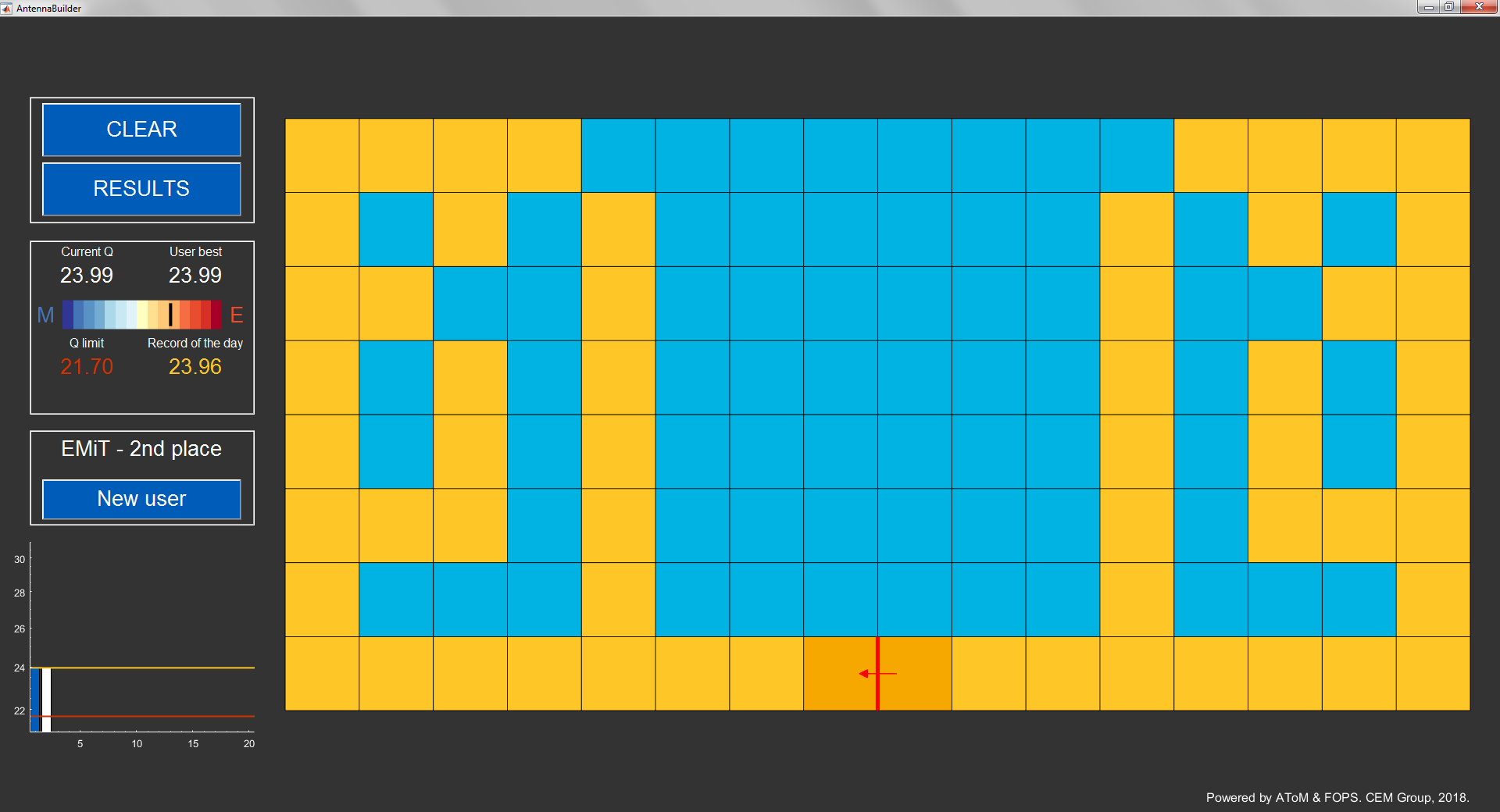

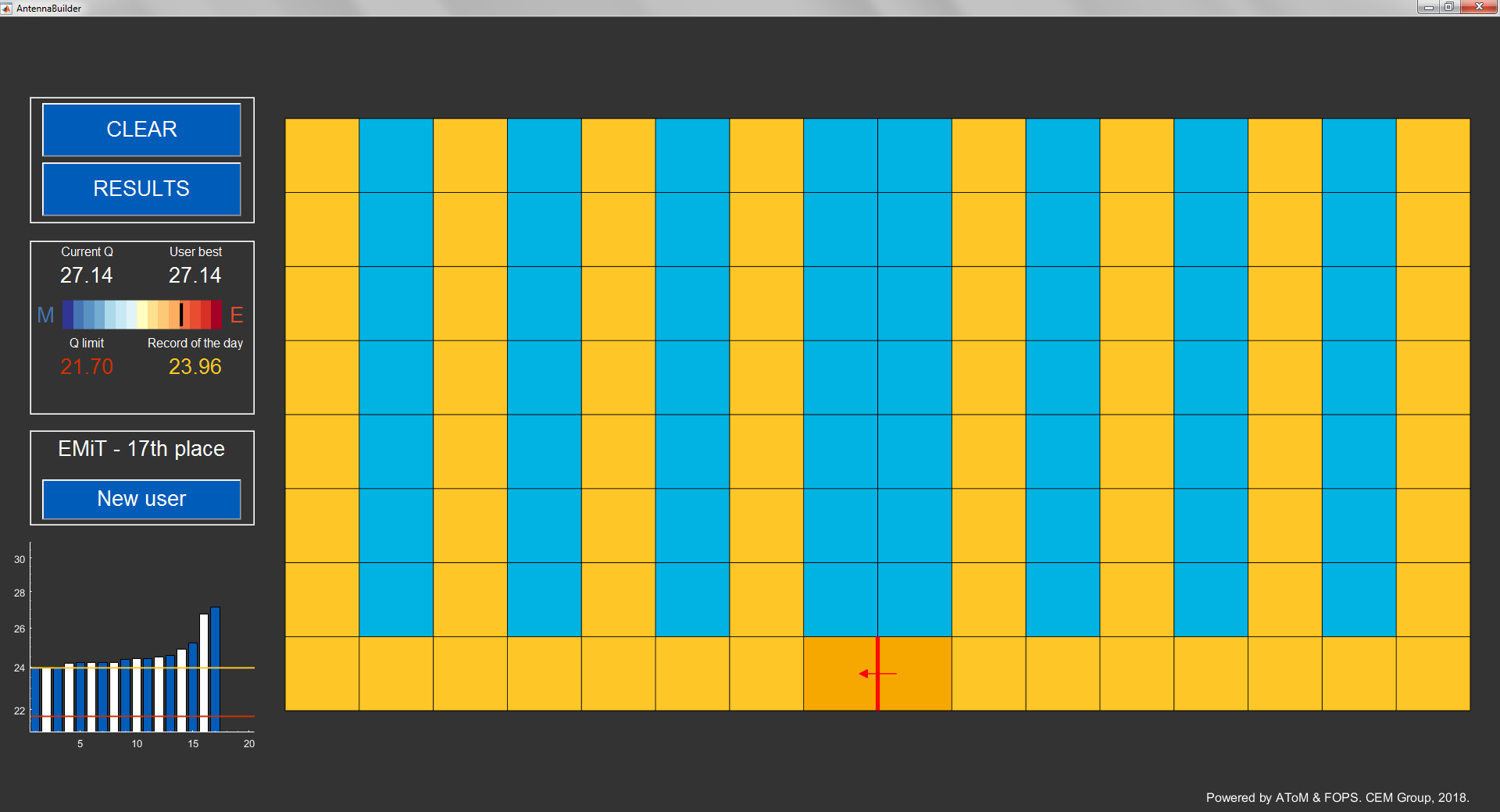

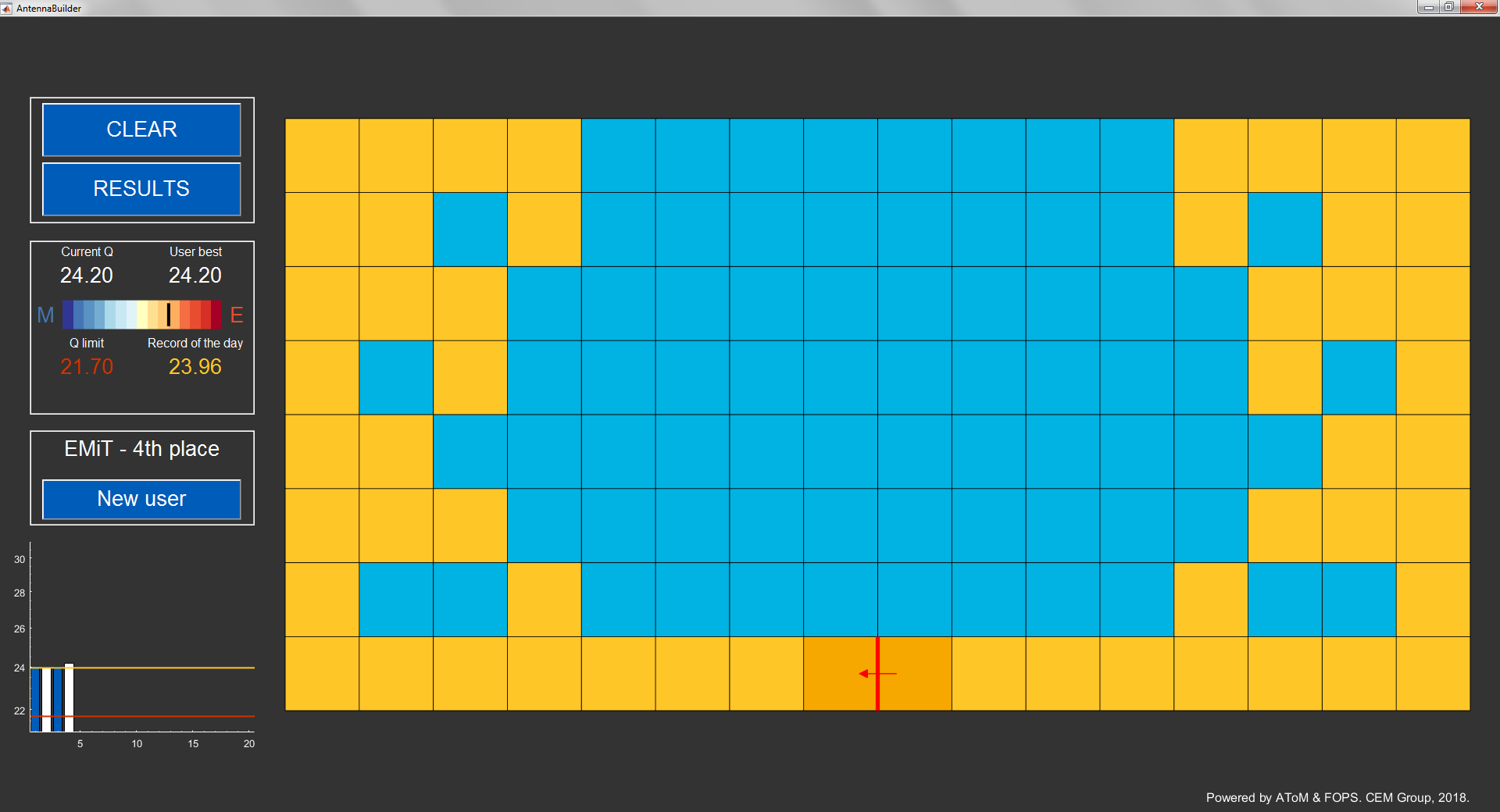

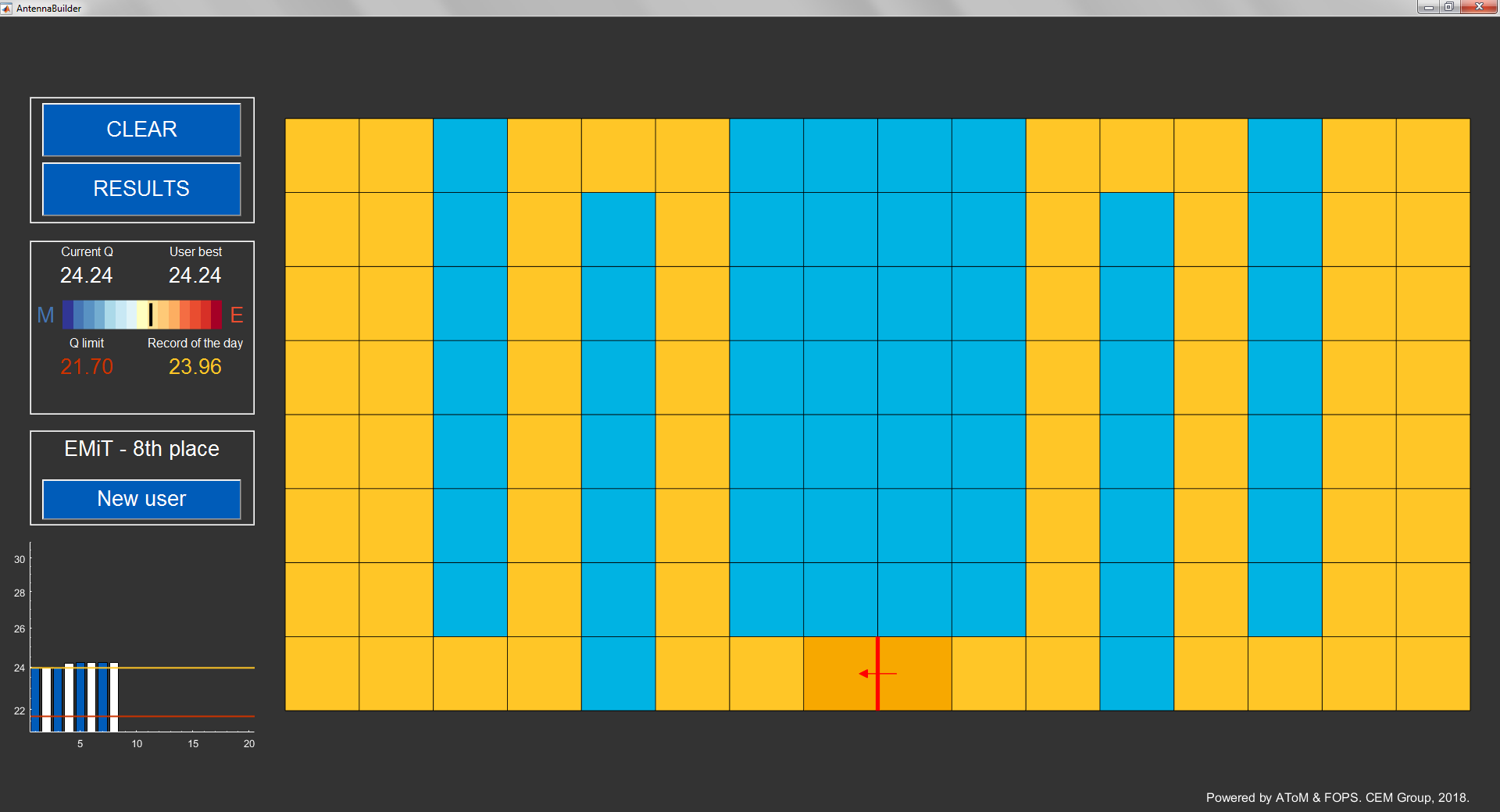

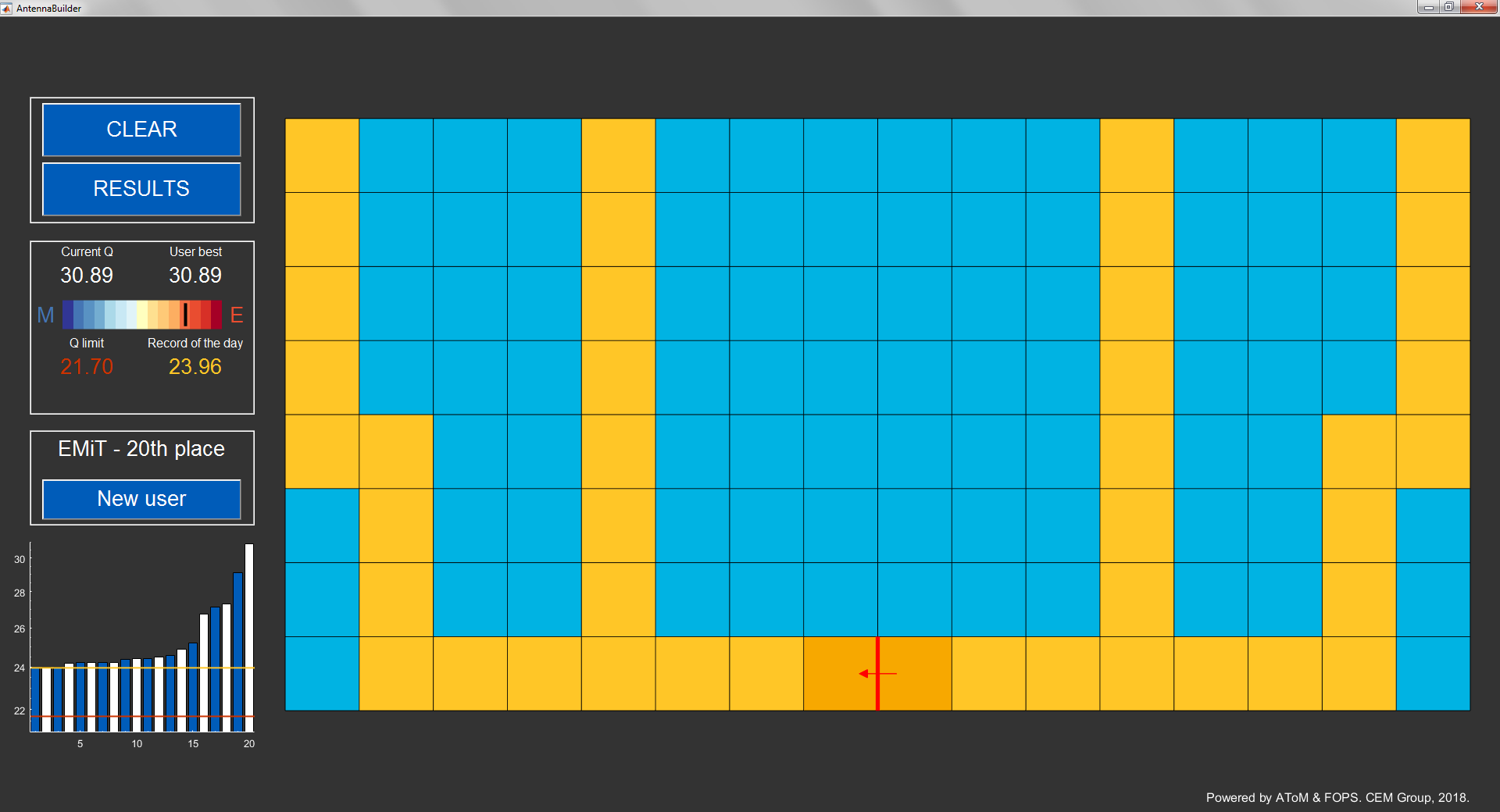

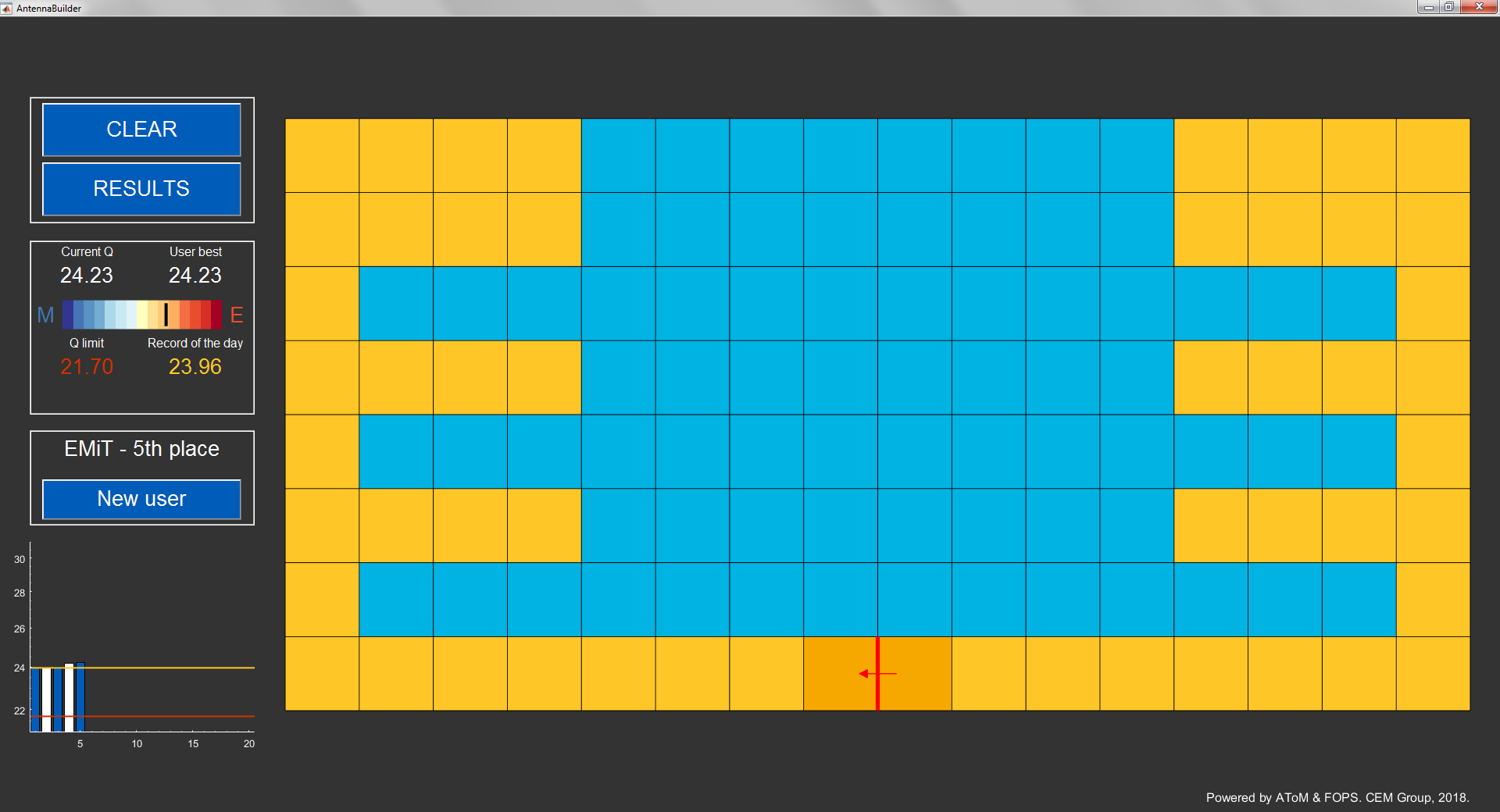

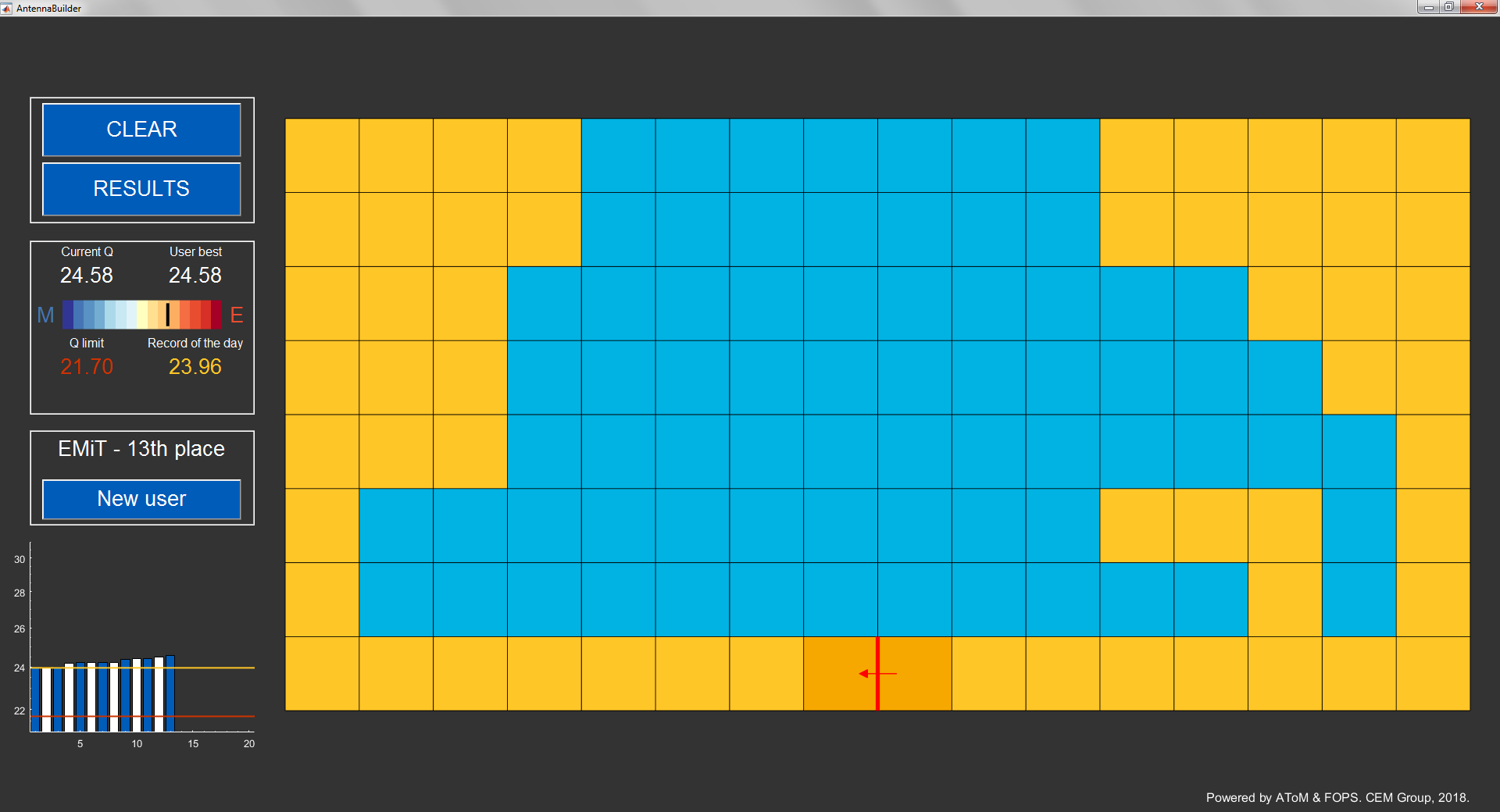

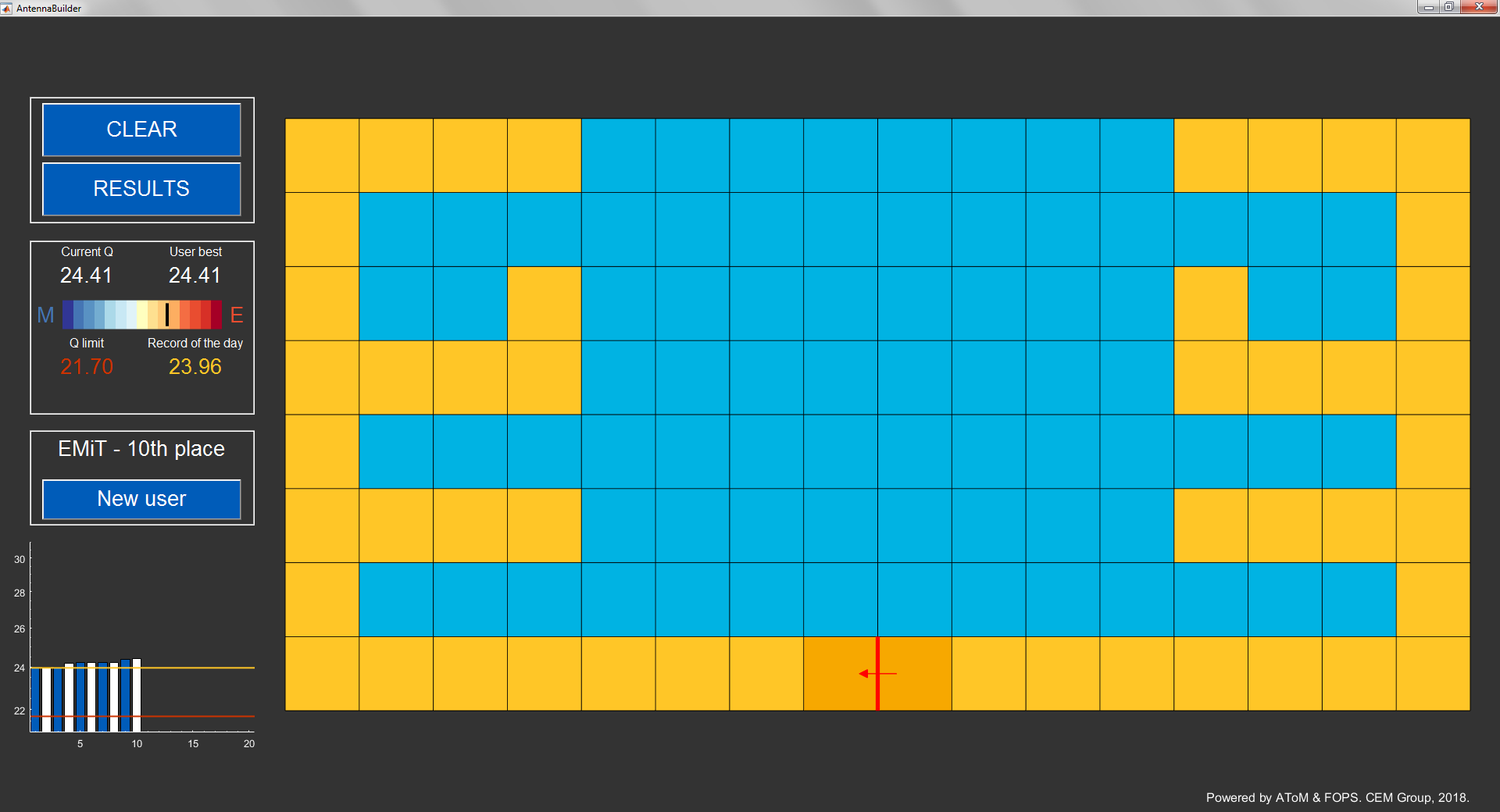

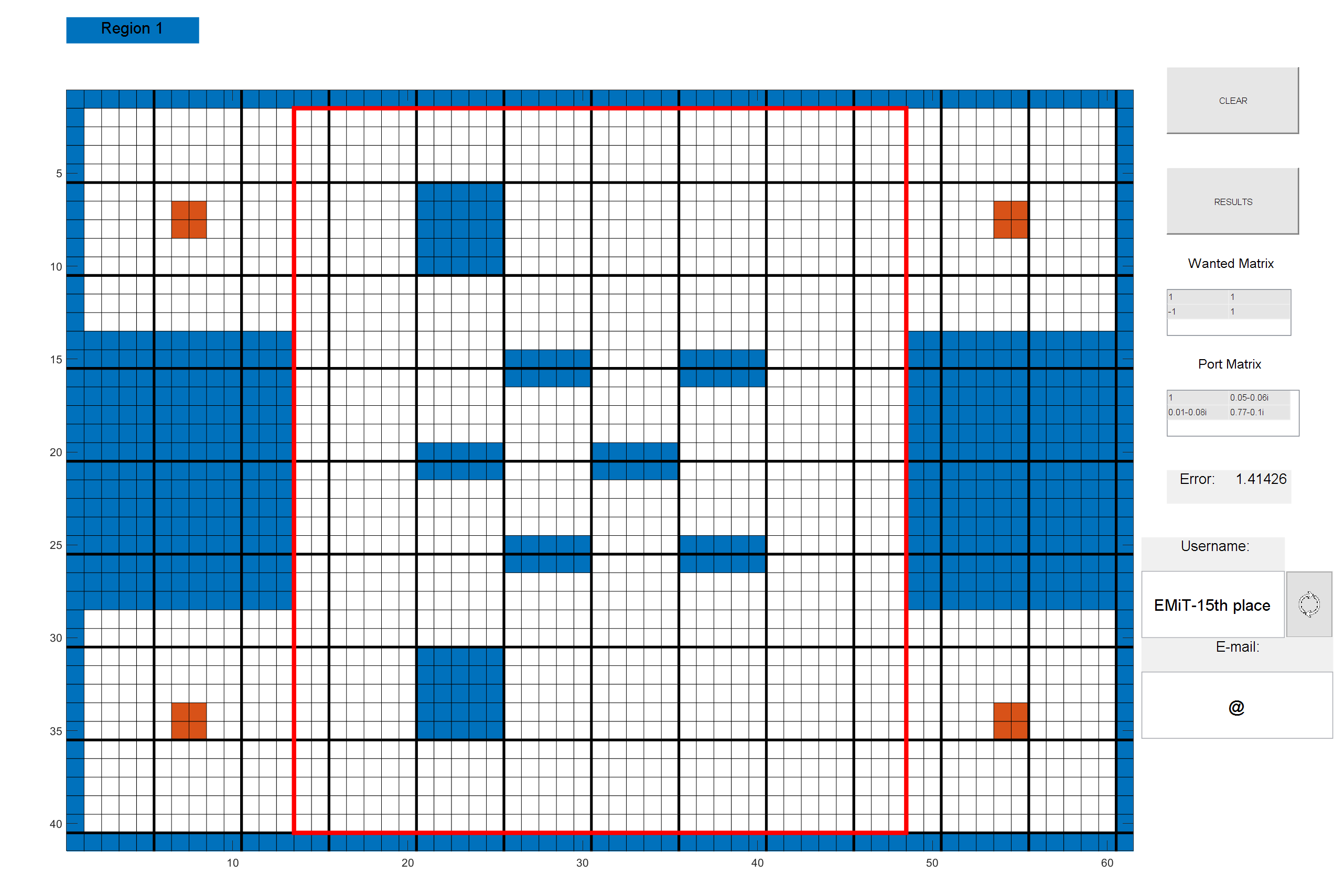

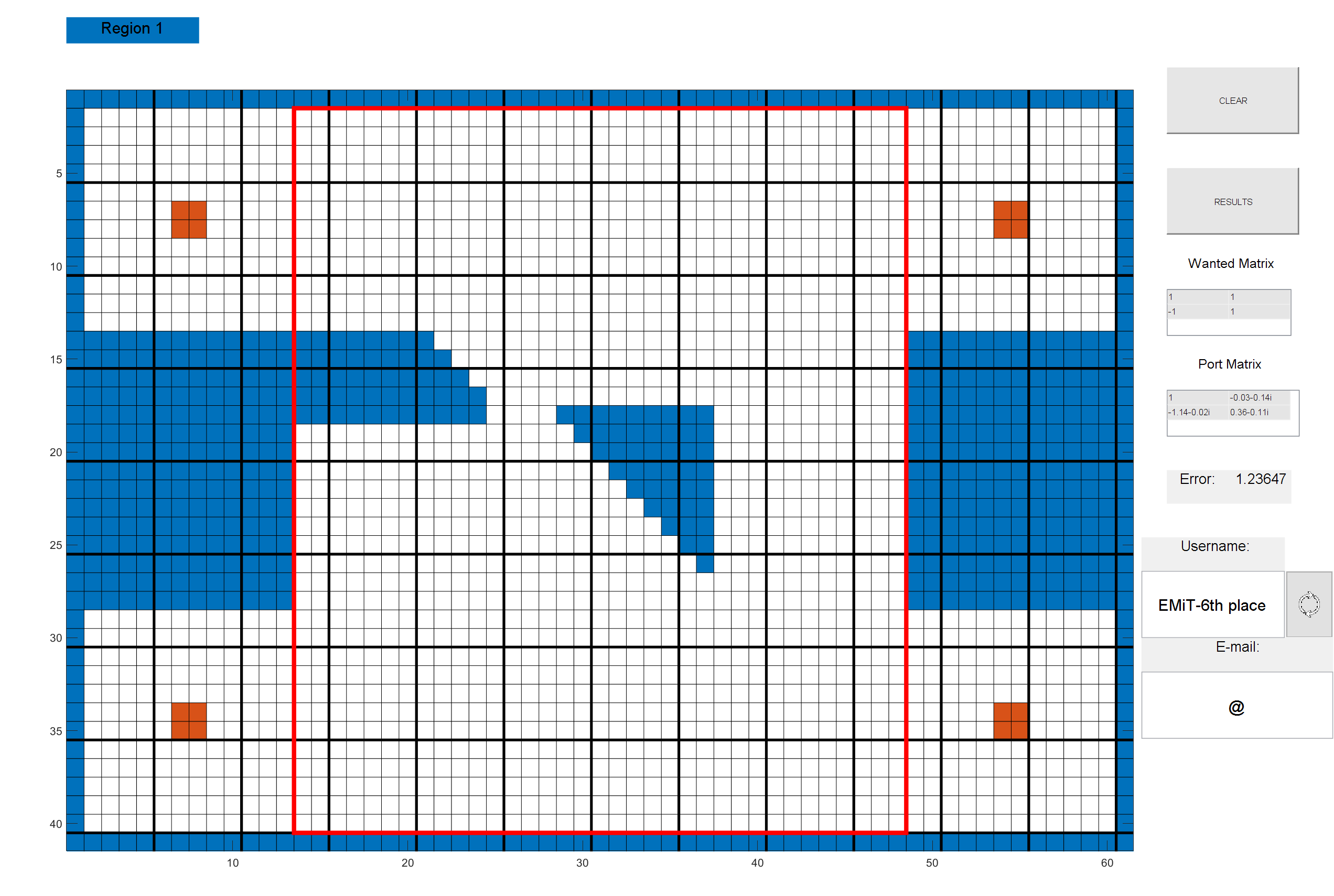

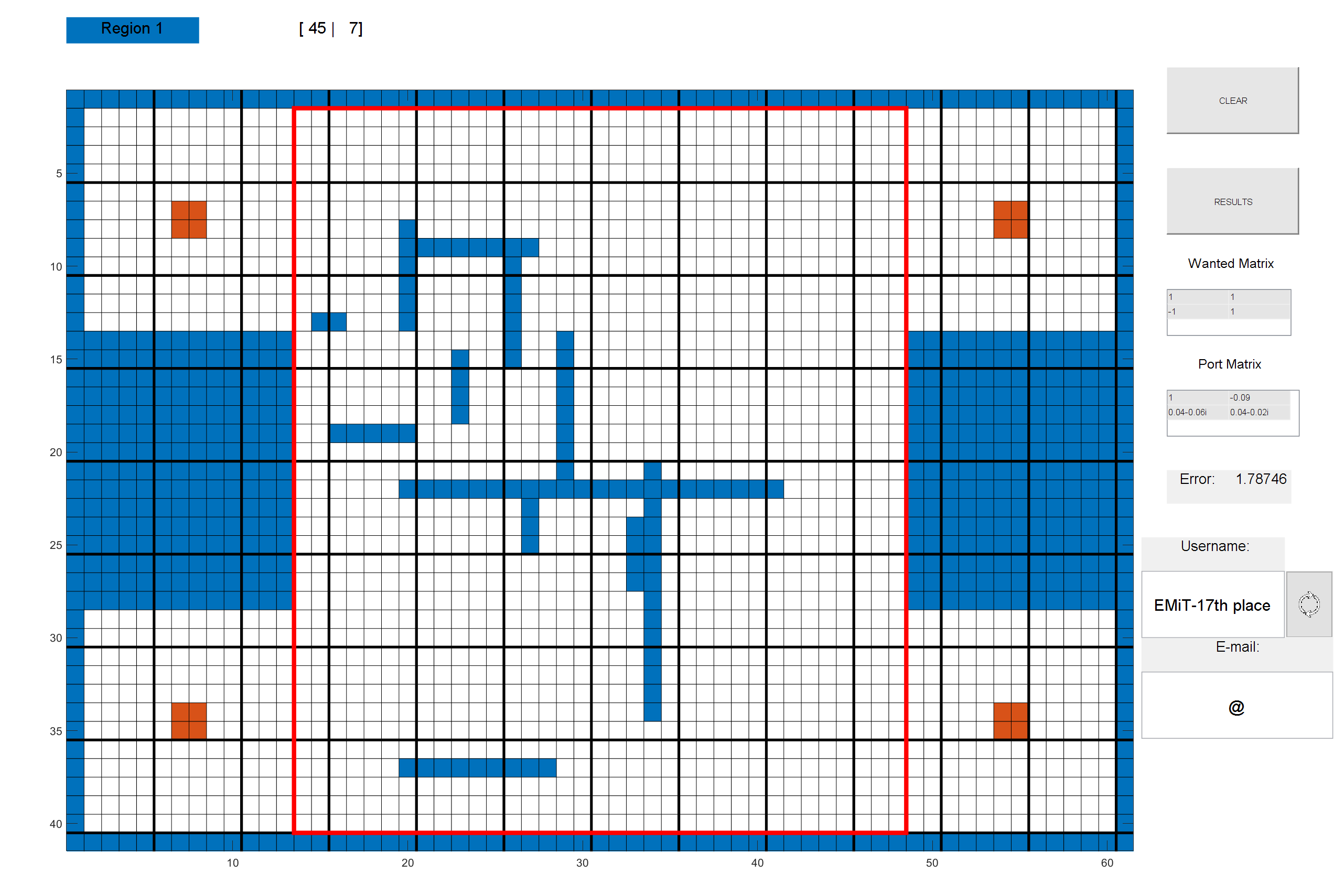

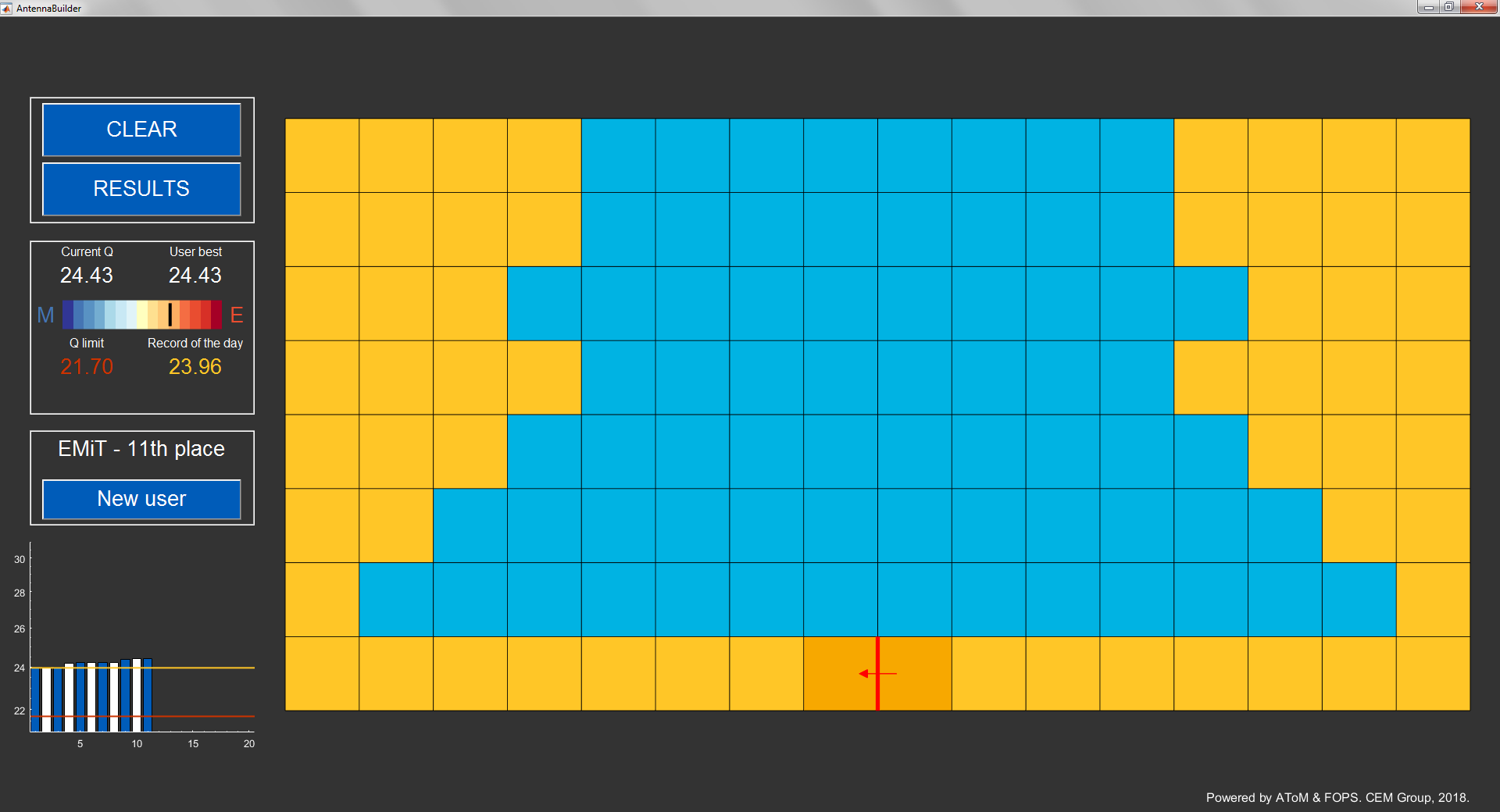

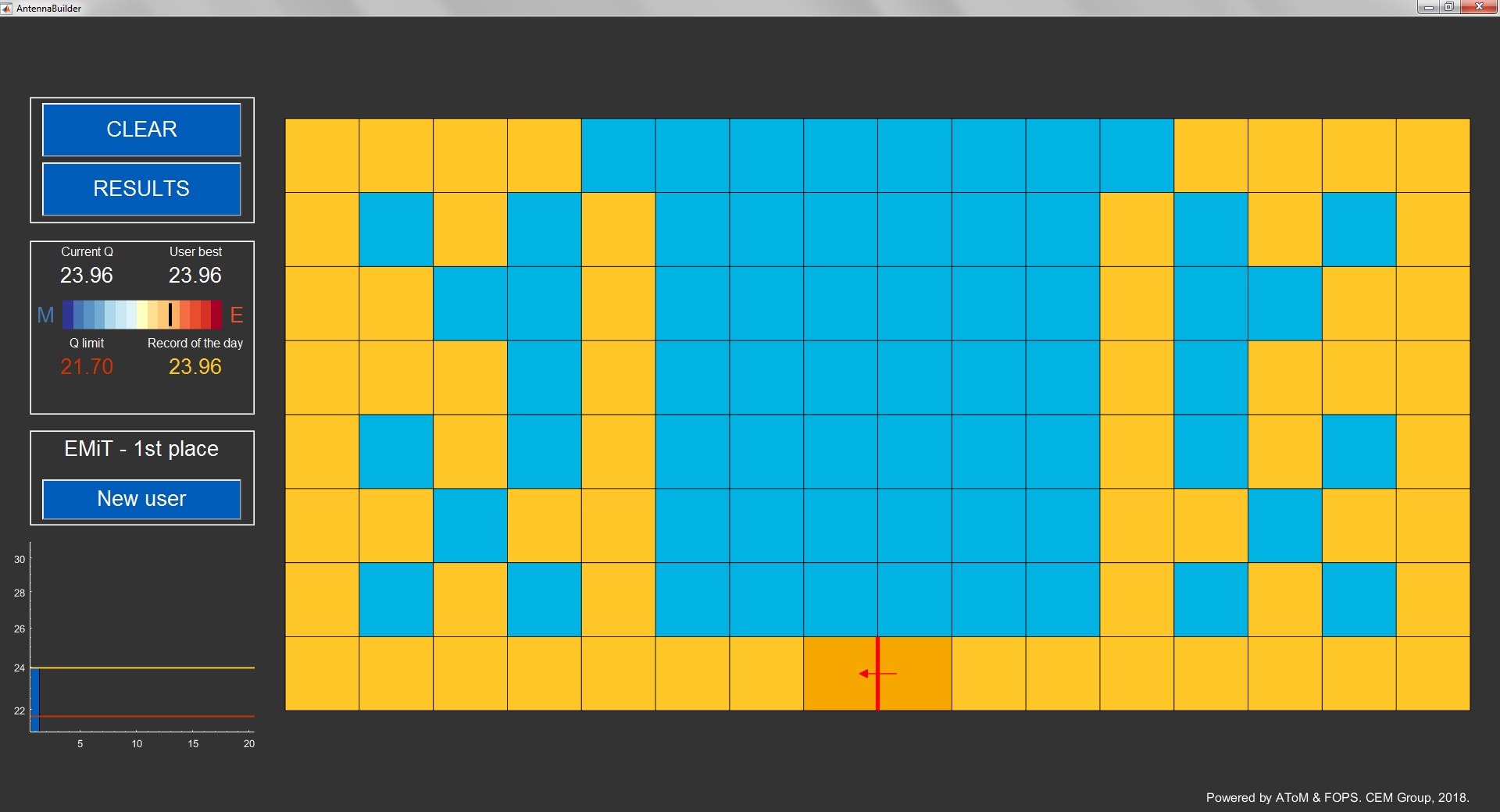

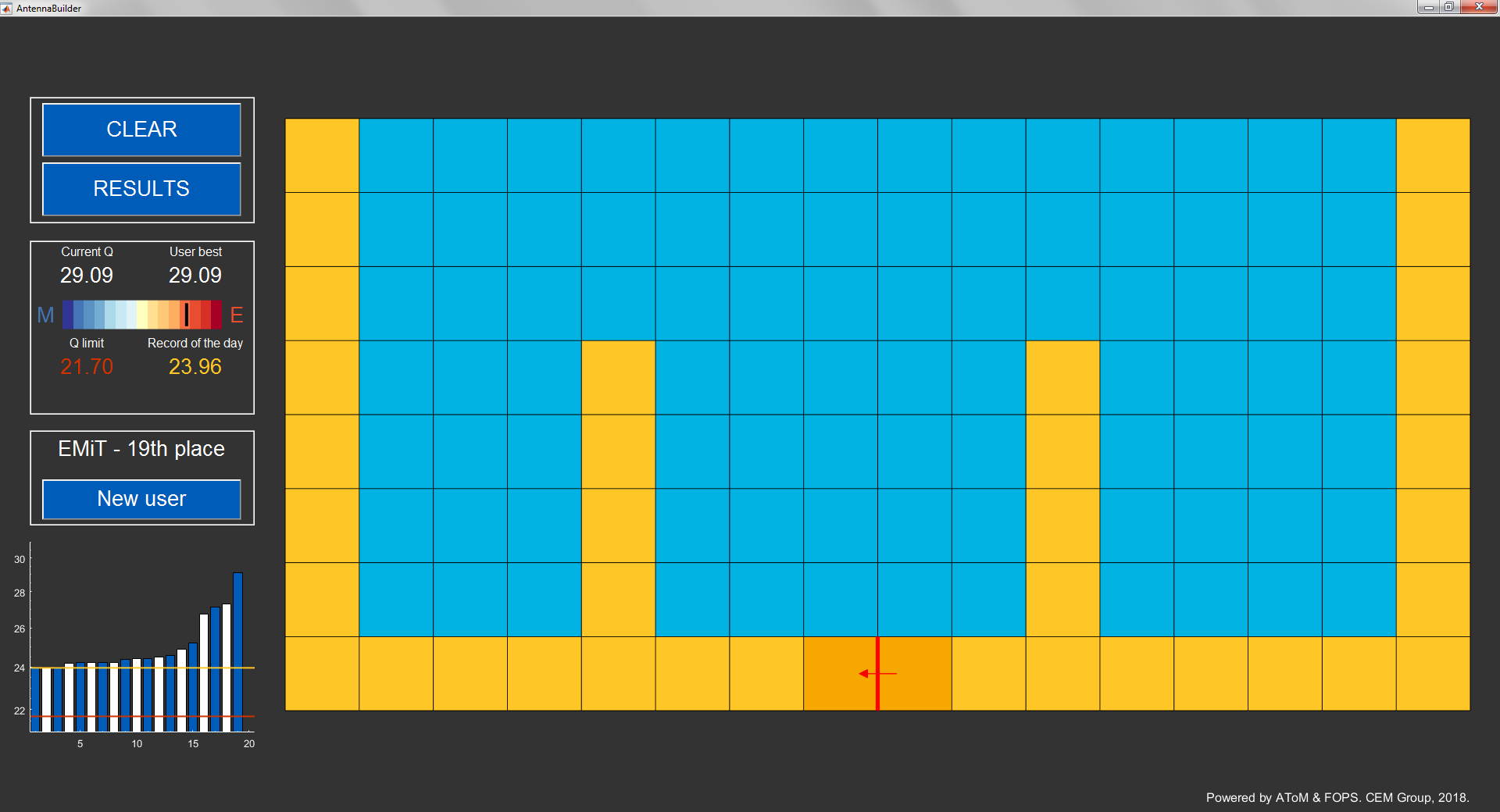

Pos.NameBest QAttemptsDesign
