AToM2TikZ

AToM2TikZ is a package for conversion of MATLAB plots generated by AToM into LATEX/TikZ macros. The strategy used to generate the plots is similar as for Matlab2TikZ package. AToM2TikZ can generate vector graphics for mesh grids, current plots, charge plots, radiation patterns, topology sensitivity samples, etc.

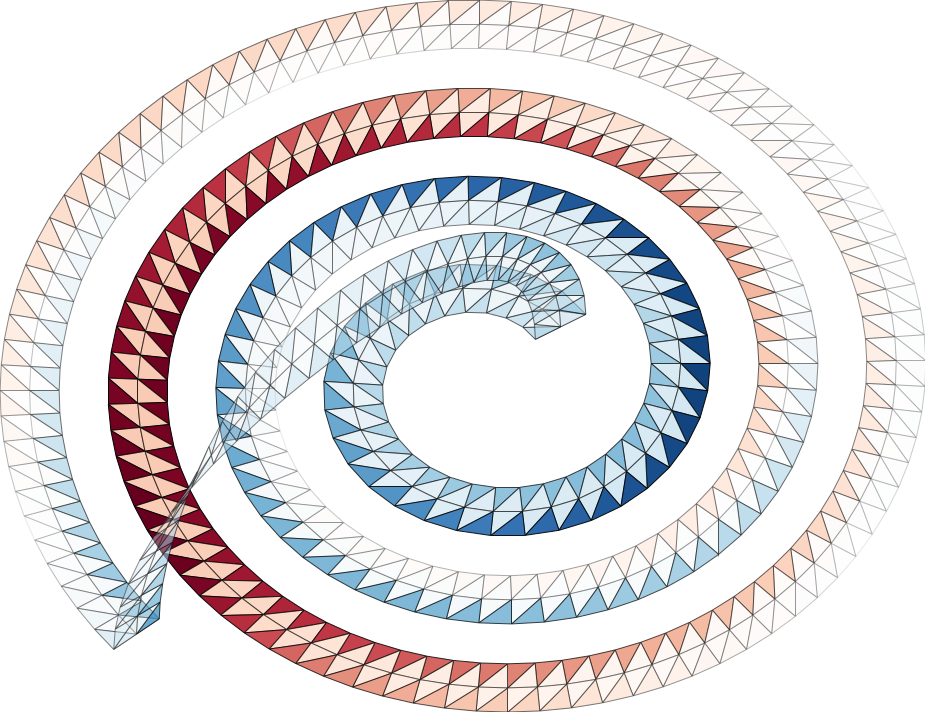

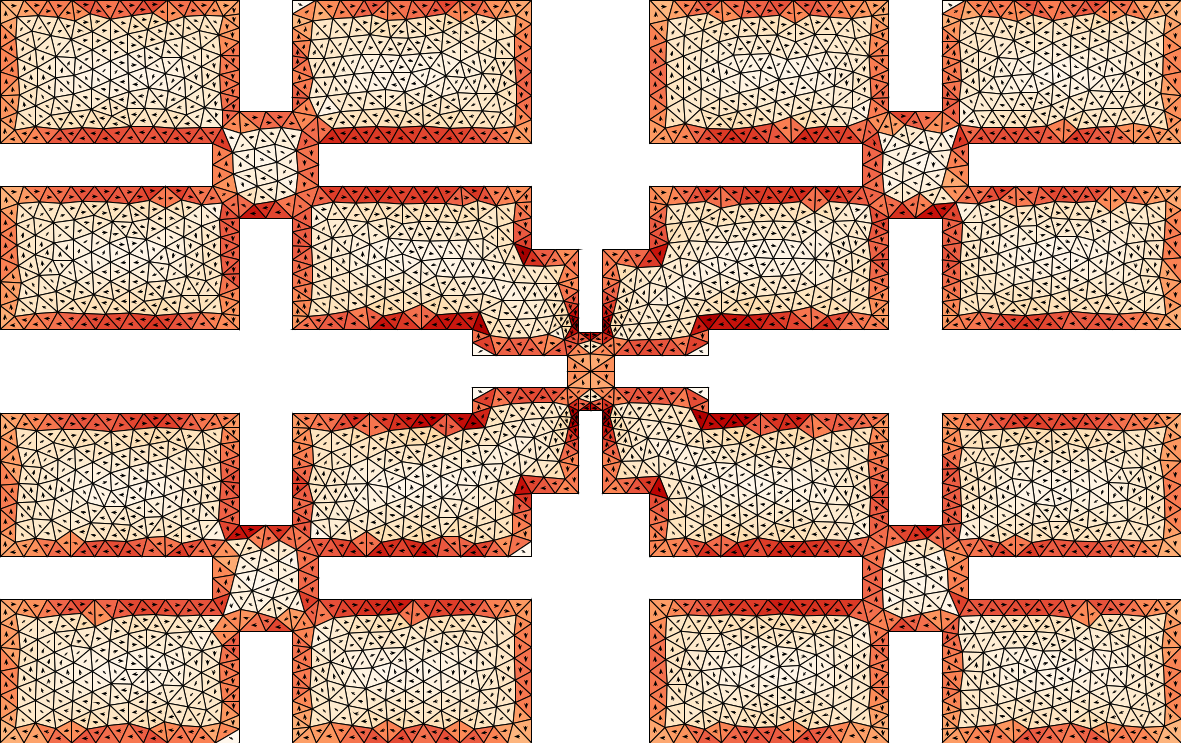

Gallery

Download

The tool needs AToM package to operate (at least its free version)..

AToM2TikZ
(ZIP, 44.36 kB)
version from Mar 27, 2020

AToM2TikZ Documentation
(PDF, 5.94 MB)
version from Mar 27, 2020
